SGM6029.pdf? 1.95V to 5.5V Input Voltage Range
? 2.3μA (TYP) Quiescent Current
? Selectable Switching
Frequency of 4.0MHz or 1.5MHz
? 0.4V Internal Reference Voltage
? 0.6A to 1A Peak Output Current
? 2% Output Voltage Regulation
Accuracy Full Temperature Range
? Programmable Light Load PSM or FPWM
? Simple Output Voltage
Programming with Integrated R2D Converter
? 16 Selectable + 1 Fixed Output Voltage Levels:
SGM6029A (4.0MHz): 0.4V to 0.775V
SGM6029B (4.0MHz): 0.8V to 1.55V
SGM6029C (4.0MHz): 1.8V to 3.3V
SGM6029D (1.5MHz): 0.4V to 0.775V
SGM6029E (1.5MHz): 0.8V to 1.55V
? Enable Pin with Auto Pull-Down during Startup
? Miniature 0201 Optimized Pinout
? Output Discharge Feature (When Disabled)
? 100% Duty Cycle Operation Capability

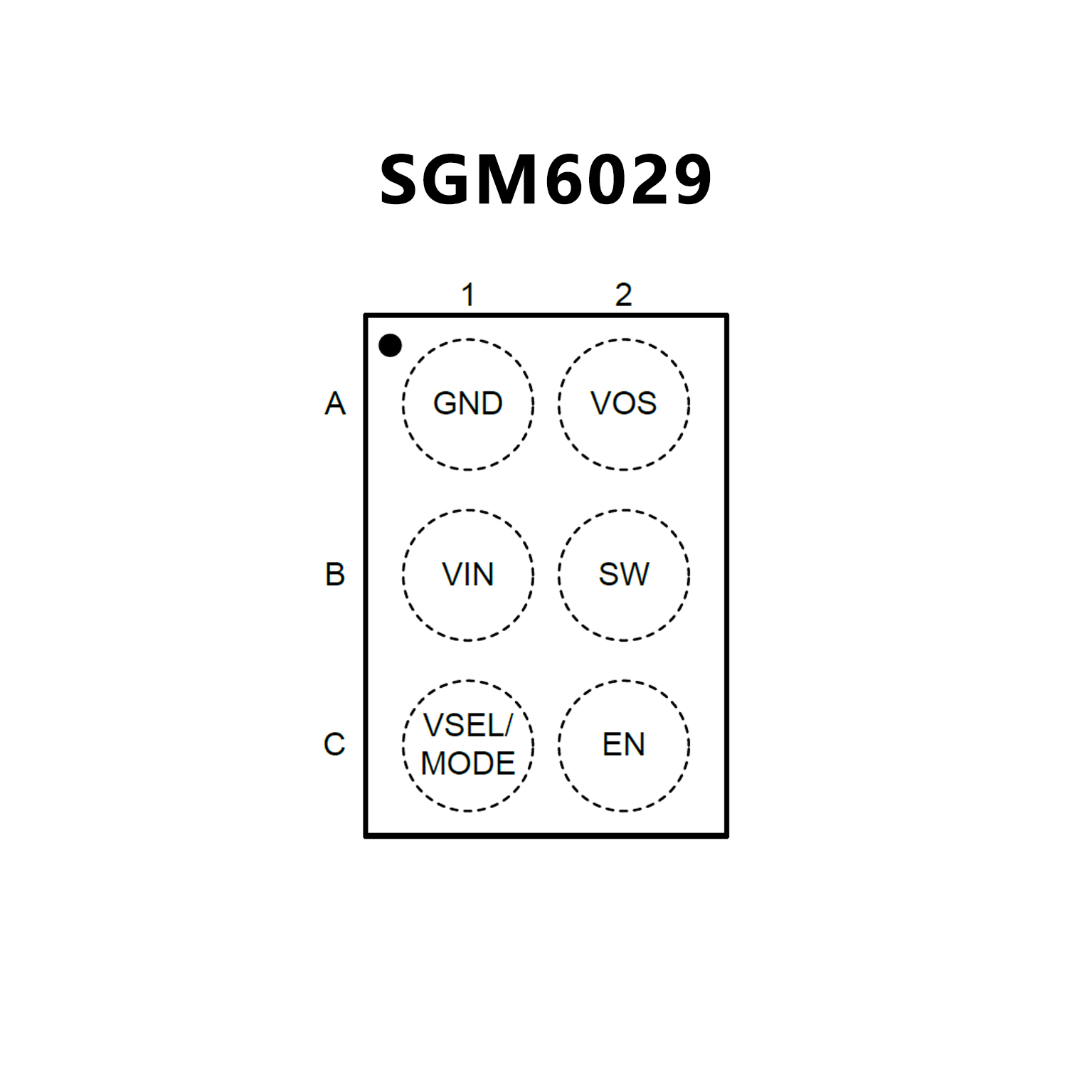

? Available in a Green WLCSP-0.74×1.09-6B Package
? 1.75-V to 5.5-V input voltage range
? 2.3-μA operating quiescent current
? Up to 4-MHz switching frequency
? 0.6-A or 1-A output current
? 1% output voltage accuracy
? Selectable power save and forced PWM mode
? R2D converter for flexible VOUT setting
? 16 selectable and one fixed output voltages
TPS62800 (4 MHz): 0.4 V to 0.775 V
TPS62801 (4 MHz): 0.8 V to 1.55 V
TPS62802 (4 MHz): 1.8 V to 3.3 V
TPS62806 (1.5 MHz): 0.4 V to 0.775 V
TPS62807 (1.5 MHz): 0.8 V to 1.55 V
TPS62808 (1.5 MHz): 1.8 V to 3.3 V
? Smart enable pin
? Optimized pinout to support 0201 components
? DCS-Control topology
? Output discharge
? 100% duty cycle operation

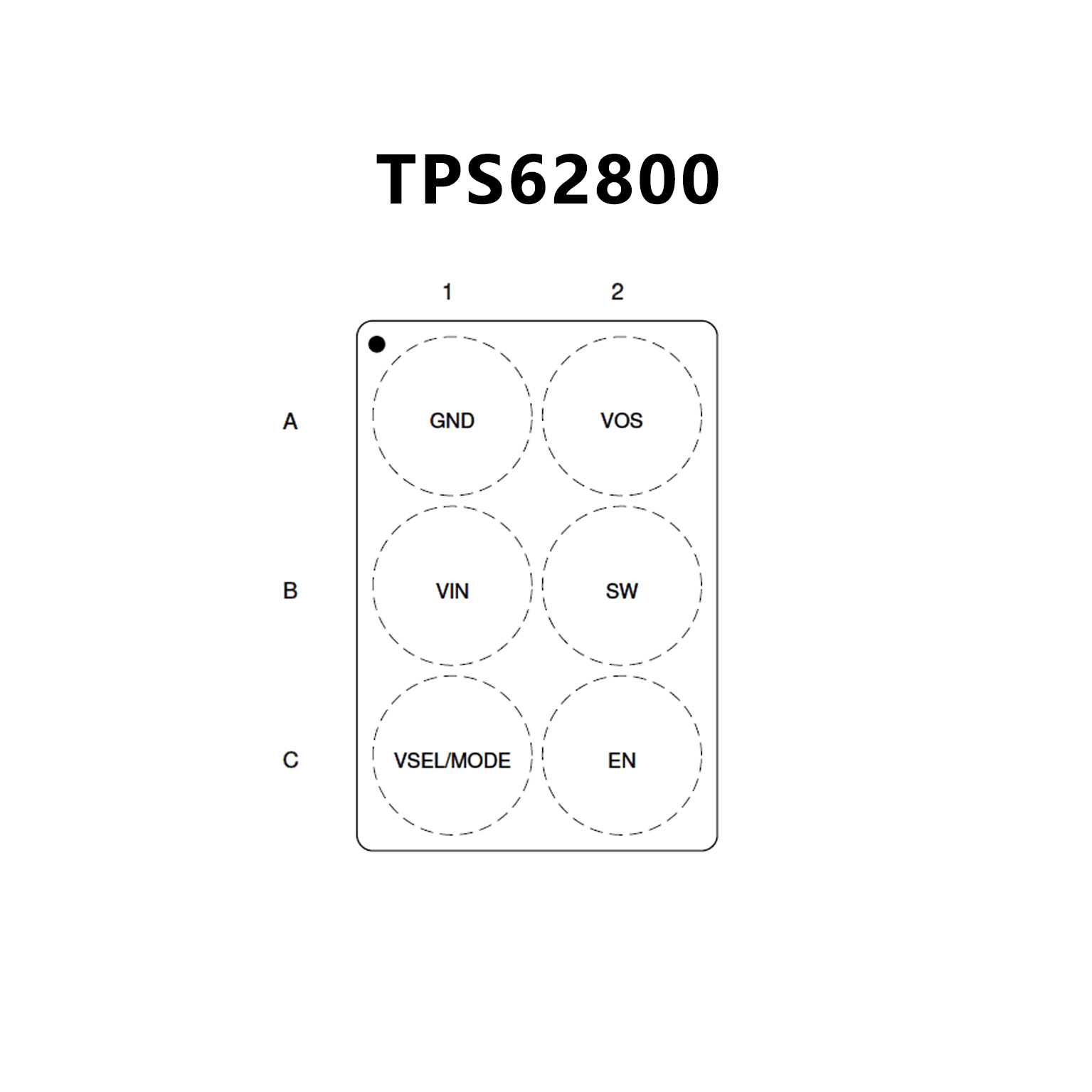

? Tiny 6-pin, 0.35-mm pitch WCSP package
? Supports < 0.6-mm solution height
? Supports < 5-mm2 solution size
? Create a custom design using the:
TPS62800 WEBENCH? Power Designer
TPS62801 WEBENCH? Power Designer
TPS62802 WEBENCH? Power Designer
TPS62806 WEBENCH? Power Designer
TPS62807 WEBENCH? Power Designer
TPS62808 WEBENCH? Power Designer
