SPDT1Ω AnalogSwitch, SGM48757 Replace TS5A23166.
SGM48757
SGM48757.pdf
SGM48757.pdfFEATURES
? Supply Voltage Range: 1.8V to 5.5V
? On-Resistance: 1Ω (TYP) at 4.5V
? -3dB Bandwidth: 72MHz
? High Off-Isolation: -38dB at 10MHz
? Rail-to-Rail Operation
? Low Static Power
? TTL/CMOS Compatible
? Break-Before-Make Switching
? Available in Green SC70-6, SOT-23-6 and
UTDFN-1.45×1-6AL Packages

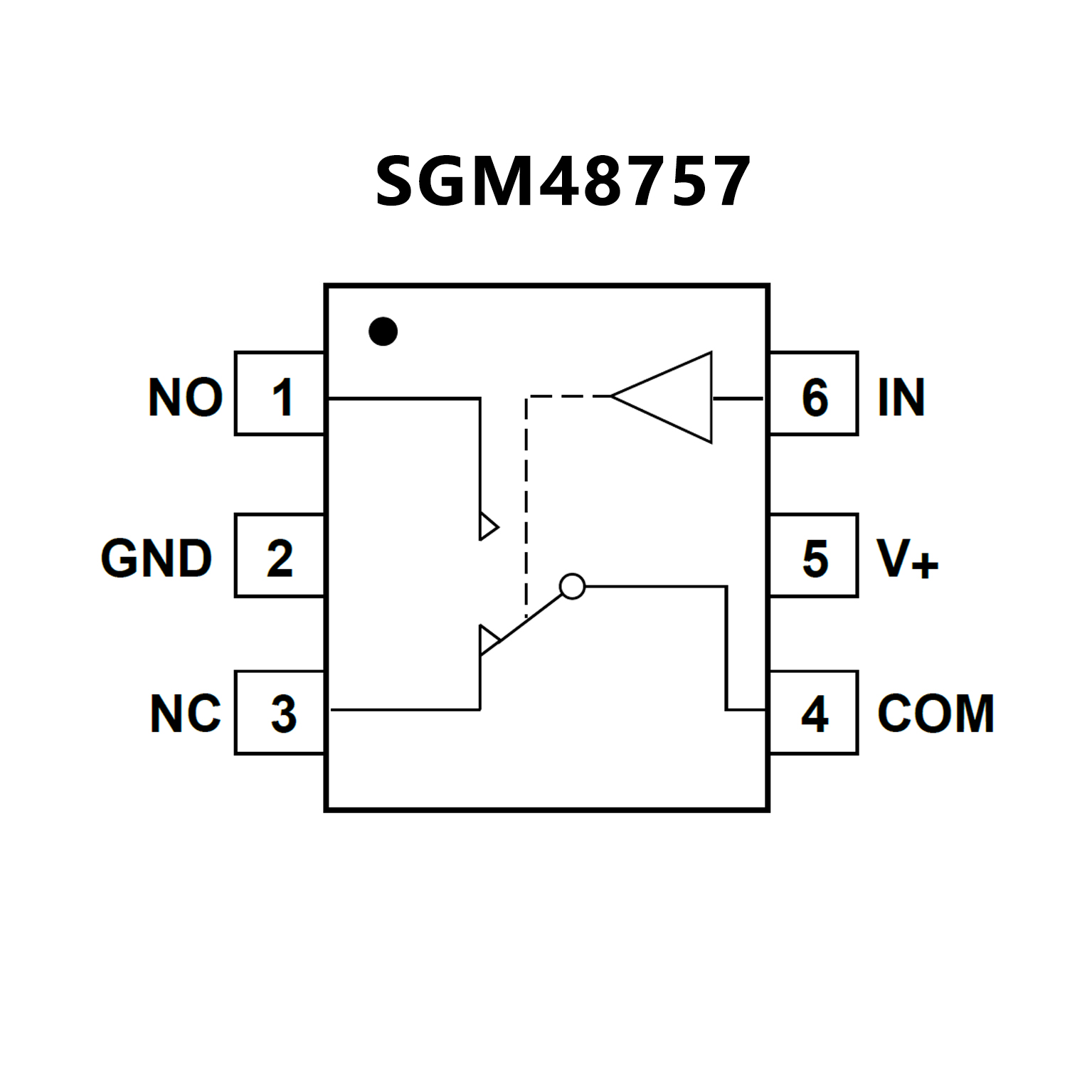

PIN CONFIGUTION
優勢替代
FEATURES
? Isolation in Powered-Down Mode, V+ = 0
? Low ON-state resistance (0.9 Ω)
? Control inputs are 5.5-V Tolerant
? Low charge injection
? Excellent ON-state resistance matching
? Low total harmonic distortion (THD)
? 1.65-V to 5.5-V Single-supply operation
? Latch-up performance exceeds 100 mA per JESD 78, class II
? ESD Performance tested per JESD 22
2000-V Human-body model(A114-B, Class II)
1000-V Charged-device model (C101)

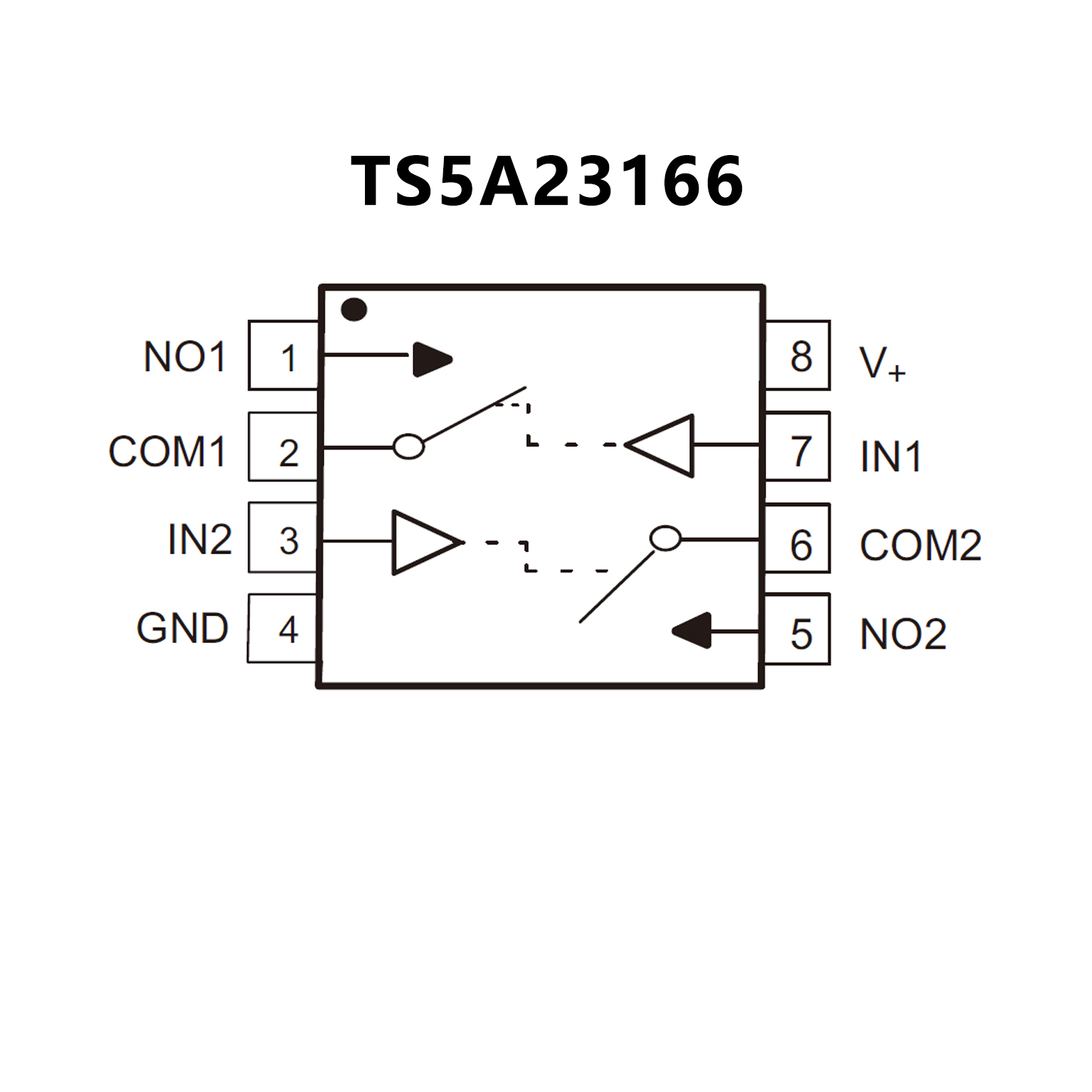

PIN CONFIGUTION
