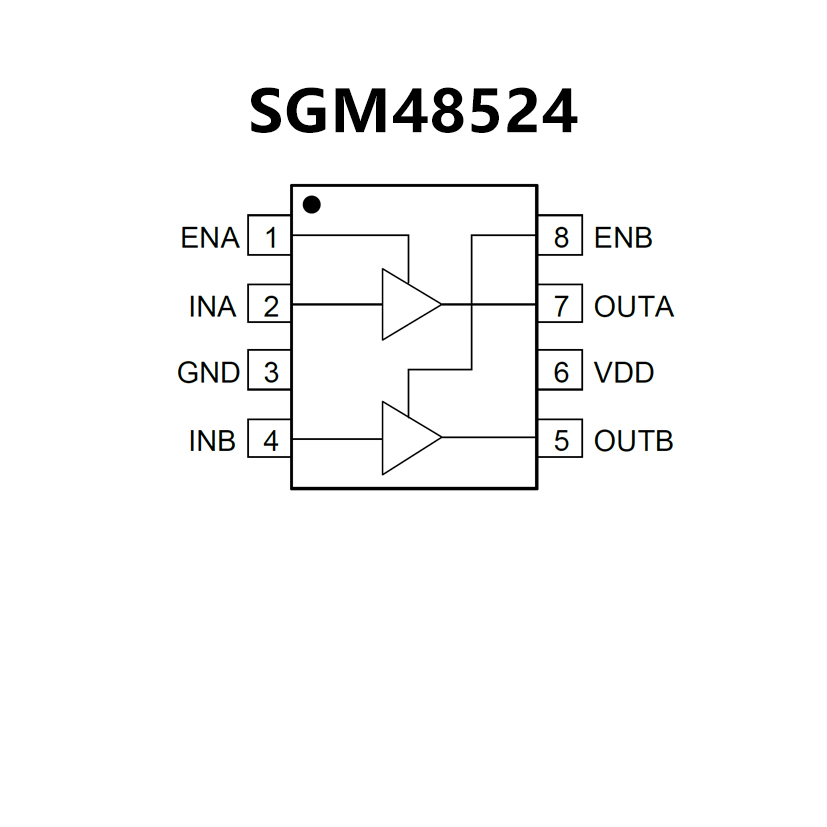

SGM48524XS8G.pdf? Two Independent Gate Drive Channels
? 5A Source and 5A Sink Peak Currents
? Wide Supply Voltage Range: 4.5V to 18V
? TTL and CMOS Compatible Logic Threshold
? Logic Levels Independent of Supply Voltage
? Hysteretic Input Logic for High Noise Immunity
? Outputs Held Low When Inputs are Floating
? Fast Propagation Delays: 18ns (TYP)
? Fast Rise Time: 7ns (TYP)
? Fast Fall Time: 7ns (TYP)
? Ringing Suppression
? Negative Voltage Capability on INx Pins:
10V when (VDD - VINx) ≤ 20V
? Negative Voltage Capability on ENx Pins:
10V when (VDD - VENx) ≤ 20V
? Negative Voltage Capability on OUTx Pin:
2V (Pulse < 200ns)
? Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8, MSOP-8 (Exposed
Pad) and TDFN-3×3-8L Packages
? High Peak Output Current: 4.5A (typical)
? Wide Input Supply Voltage Operating Range:
4.5V to 18V
? High Capacitive Load Drive Capability:
1800 pF in 12 ns
? Short Delay Times: 40 ns (typical)
? Matched Rise/Fall Times
? Low Supply Current:
With Logic ‘1’ Input – 1.0 mA (maximum)
With Logic ‘0’ Input – 150 μA (maximum)
? Low Output Impedance: 2.5Ω (typical)
? Latch-Up Protected: Will Withstand 1.5A Reverse
Current
? Logic Input Will Withstand Negative Swing Up To5V

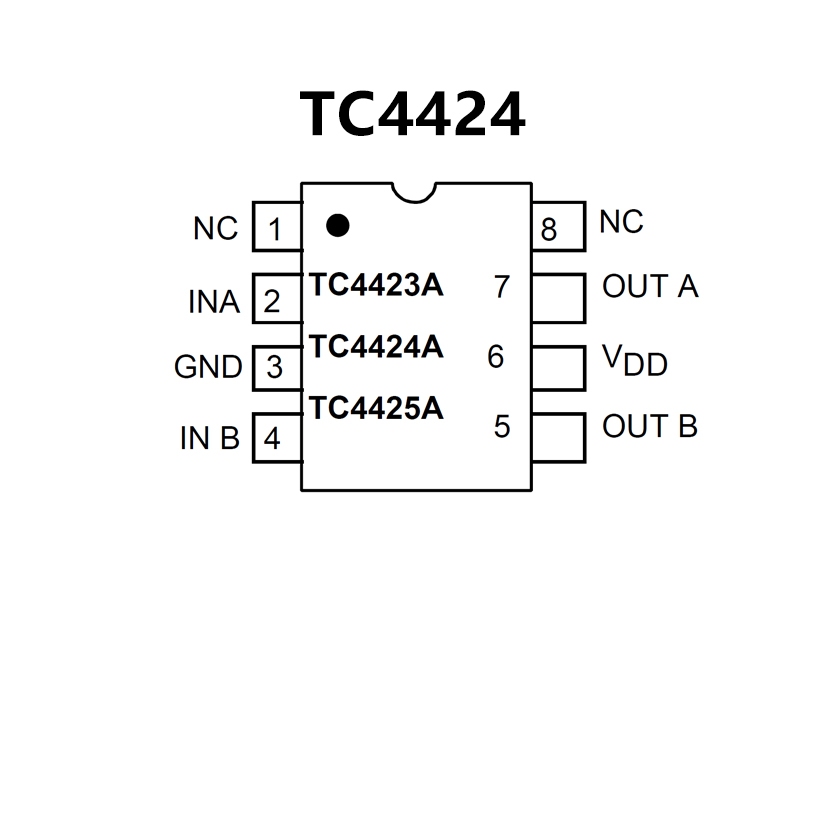

? Pin compatible with the TC4423/TC4424/TC4425
and TC4426A/TC4427A/TC4428A devices
? Space-saving 8-Pin 150 mil body SOIC and 8-Pin
6x5 DFN Packages
