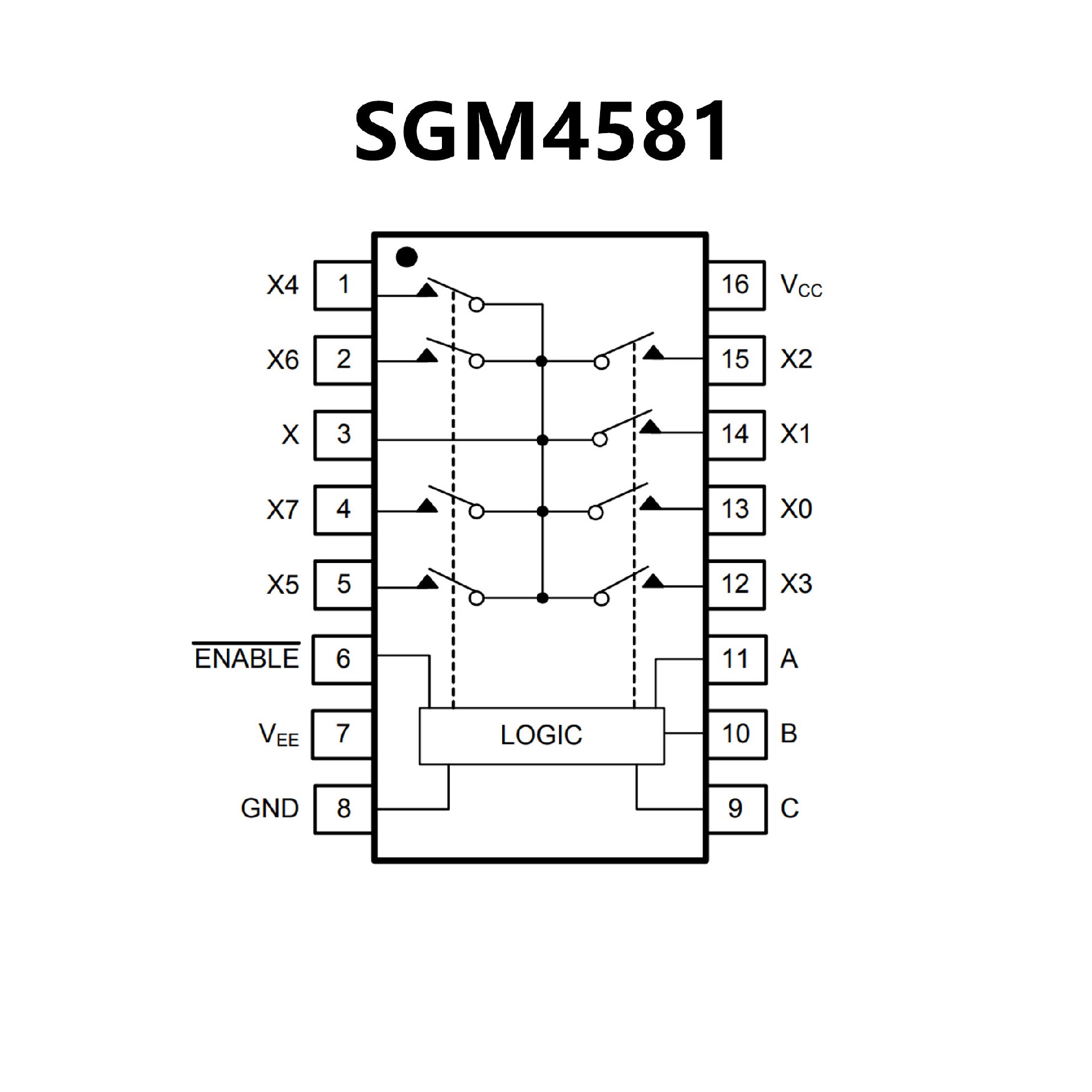

SGM4581.pdf?Guaranteed On-Resistance
51? with ±5V Supplies
84? with Single +5V Supply
? Guaranteed On-Resistance Match Between Channels
? Low Off-Leakage Current 10nA at +25℃
? Low On-Leakage Current 10nA at +25℃
? ±1.8V to ±5.5V Dual-Supply Operation
+3.6V to +11V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.08% (RL = 600?, f = 20Hz to 20kHz)
? High Off-Isolation: -70dB (RL = 50?, f = 1MHz)
? Extended Industrial Temperature Range:-40℃ to +85℃
? Available in Green SOIC-16, SSOP-16, TSSOP-16
and TQFN-3×3-16L Packages
? Fast Switching and Propagation Speeds
? Low Crosstalk Between Switches
? Diode Protection on All Inputs/Outputs
? Analog Power Supply Range (VCC ? VEE) = 2.0 to 12.0 V
? Digital (Control) Power Supply Range (VCC ? GND) = 2.0 to 6.0 V
? Improved Linearity and Lower ON Resistance Than Metal?Gate Counterparts
? Low Noise
? In Compliance with the Requirements of JEDEC Standard No. 7 A
? Chip Complexity:

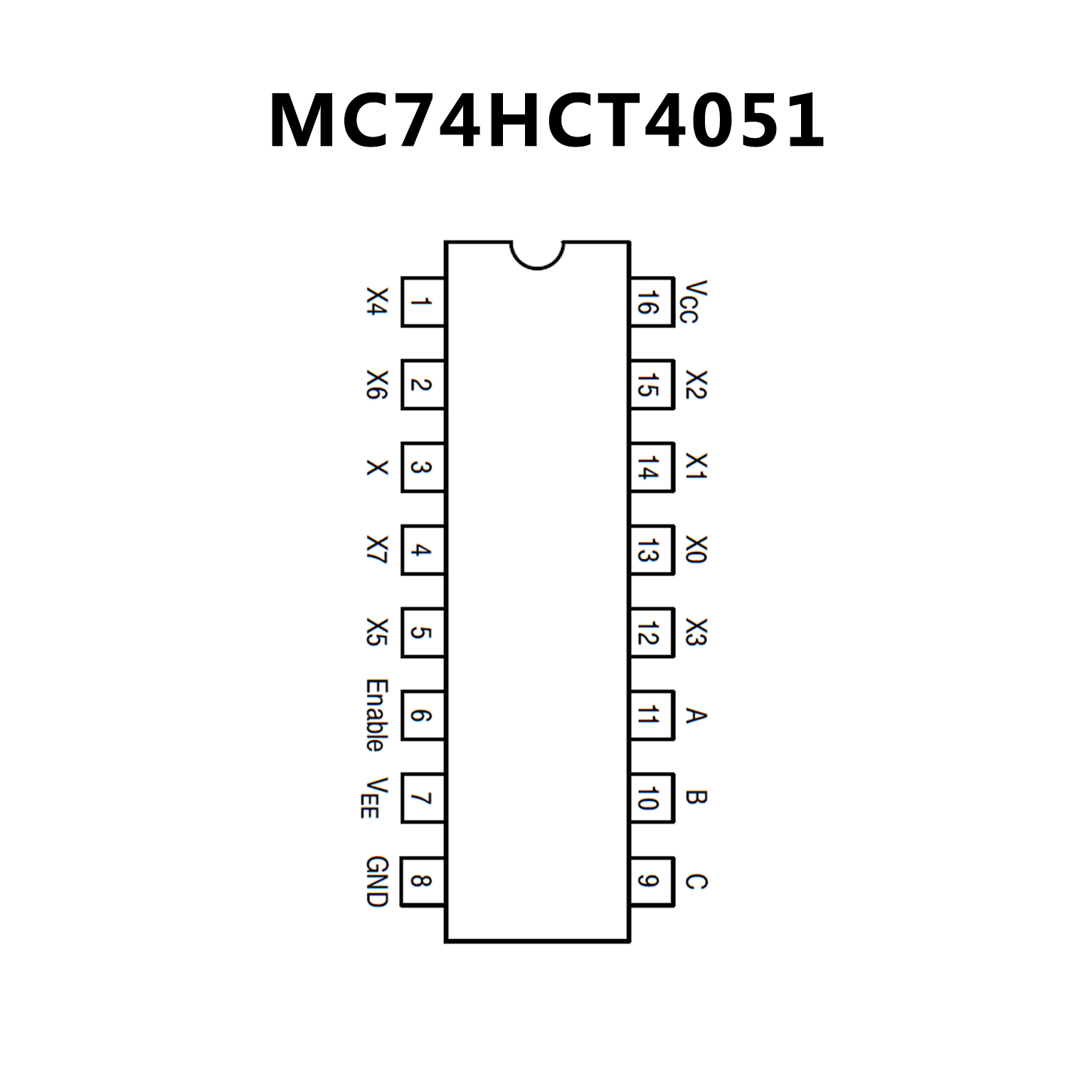

HCT4051A ? 184 FETs or 46 Equivalent Gates
HCT4052A ? 168 FETs or 42 Equivalent Gates
HCT4053A ? 156 FETs or 39 Equivalent Gates
? NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC?Q100 Qualified and PPAP Capable
? These Devices are Pb?Free and are RoHS Compliant
