Low Noise, Low Drift,Precision Voltage Reference, SGM4029-4.096 Replace REF5040.
SGM4029-4.096
SGM4029-4.096.pdf
SGM4029-4.096.pdfFEATURES
? Low Temperature Drift:
-40℃ to +125℃: 5ppm/℃ (TYP), 10ppm/℃ (MAX)
0℃ to +85℃: 2ppm/℃ (TYP), 5ppm/℃ (MAX)
? High Accuracy: ±0.05% (TYP), ±0.1% (MAX)
? Low Noise: 5μVP-P/V
? High Output Current: ±10mA
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

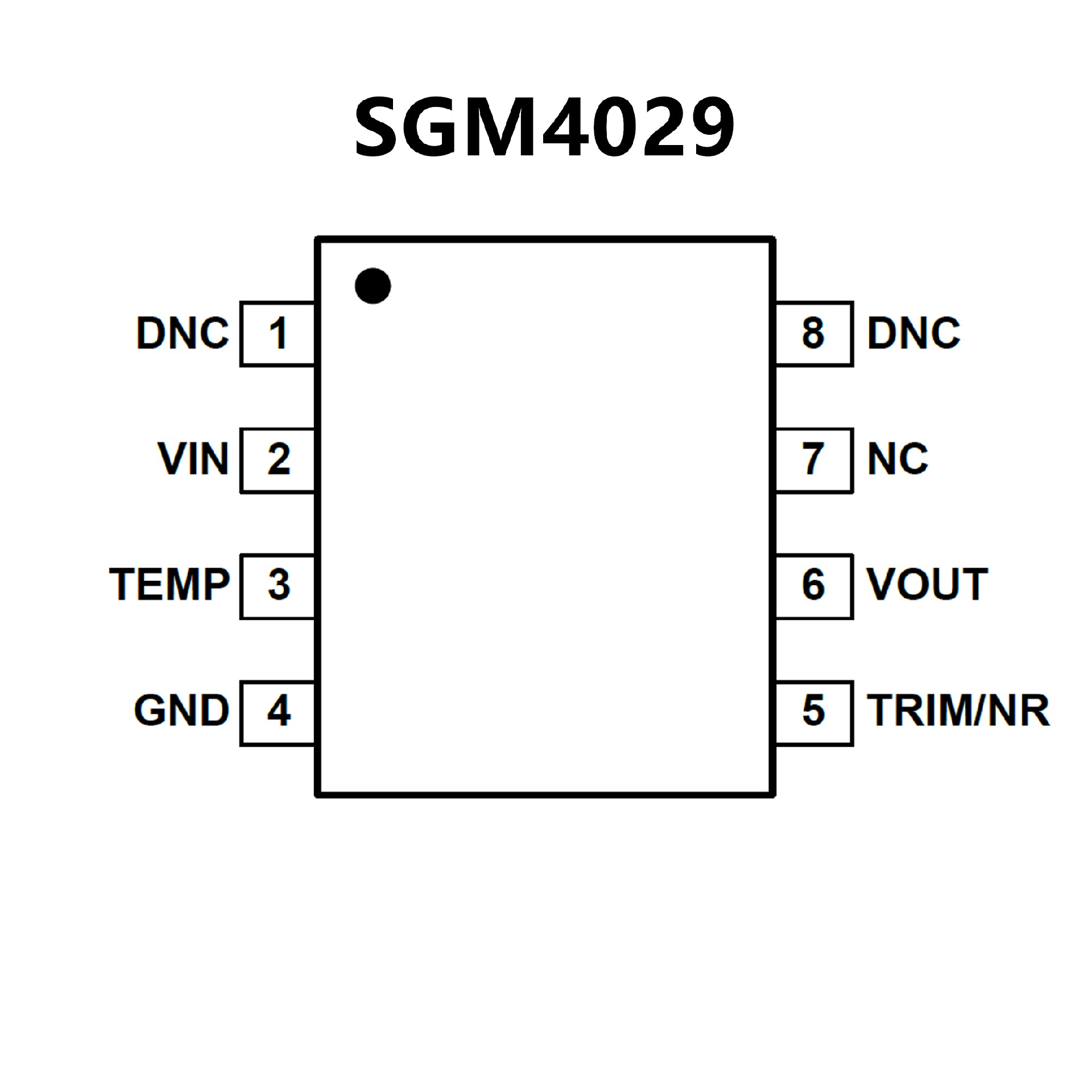

PIN CONFIGUTION
優勢替代
FEATURES
? Low temperature drift:
High-grade: 3 ppm/°C (Max)
Standard-grade: 8 ppm/°C (Max)
? High Accuracy:
High-grade: 0.05% (Max)
Standard-rade: 0.1% (Max)
? Low noise: 3 μVPP/V
? Excellent long-term stability:
50 ppm/1000 hr (Typ) First 1000 hours
(VSSOP)
25 ppm/1000 hr (Typ) Second 2000 hours
(VSSOP)
? High-Output Current: ±10 mA
? Temperature range: –40°C to 125°C

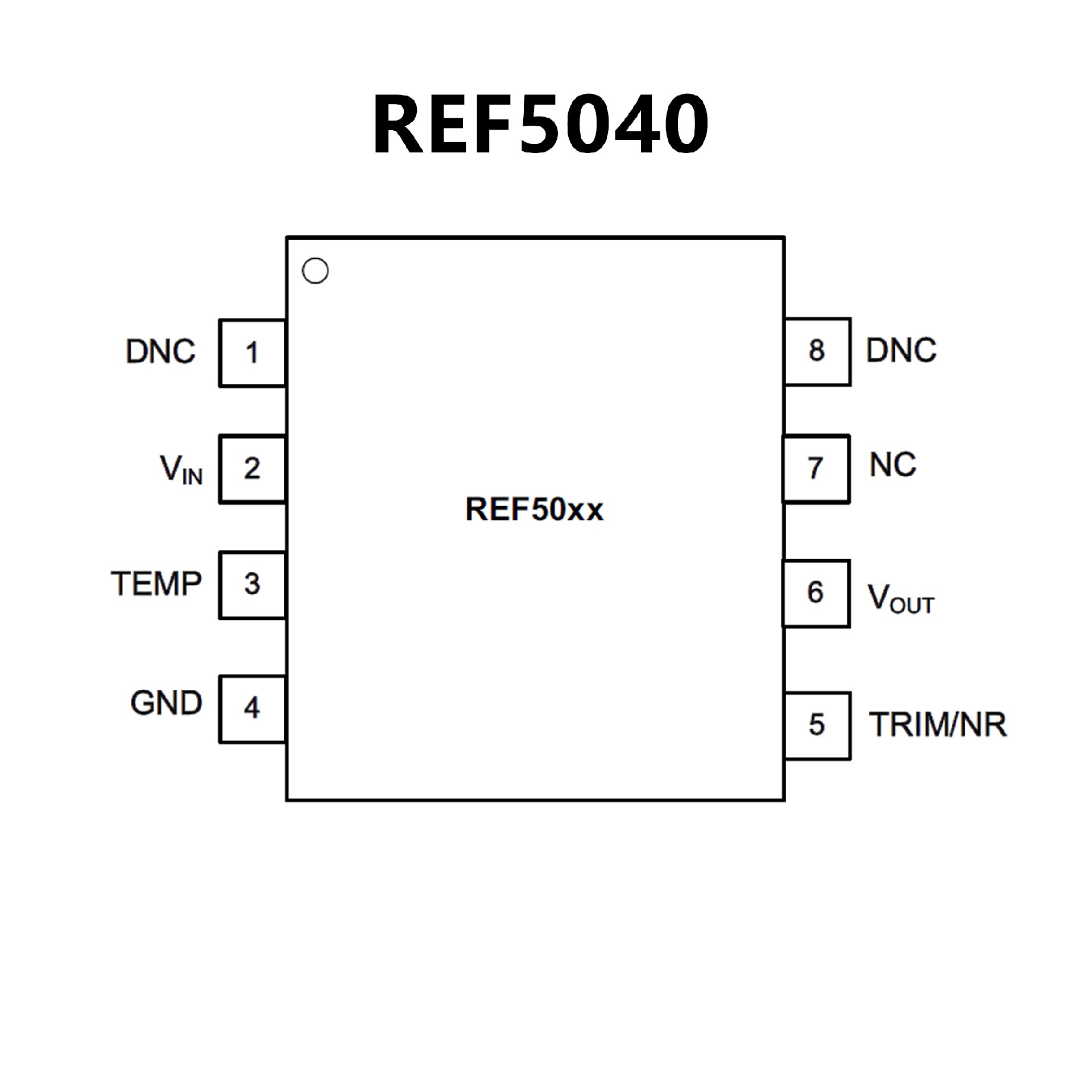

PIN CONFIGUTION
