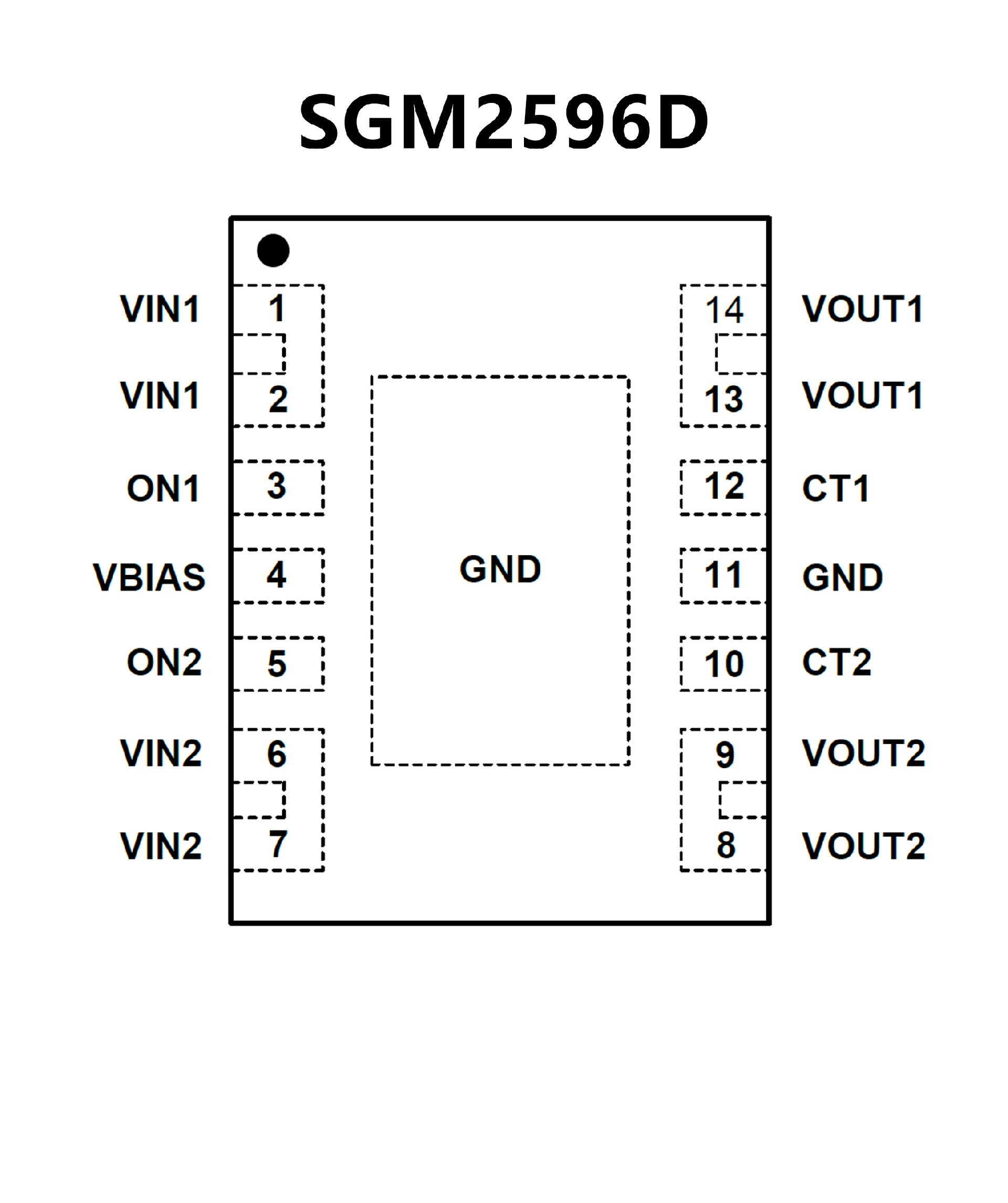

SGM2596D.pdf? Input Voltage Range: 0.6V to VBIAS
? VBIAS Voltage Range: 2.5V to 5.7V
? Dual-Channel Load Switch
? On-Resistance:
RON = 16mΩ (TYP) at VINx = 3.3V, VBIAS = 5V
RON = 16.1mΩ (TYP) at VINx = 1.2V, VBIAS = 2.5V
? Continuous Current: 6A (MAX)/Channel
? Quiescent Current:
Both Channels: 22.3μA (TYP) at VINx = VBIAS = 5V
Single Channel: 22μA (TYP) at VINx = VBIAS = 5V
? Programmable Output Ramp-Up Time
? Thermal Shutdown
? SGM2596D: Quick Output Discharge (QOD)
? -40℃ to +105℃ Operating Temperature Range
? Available in a Green TDFN-3×2-14AL Package

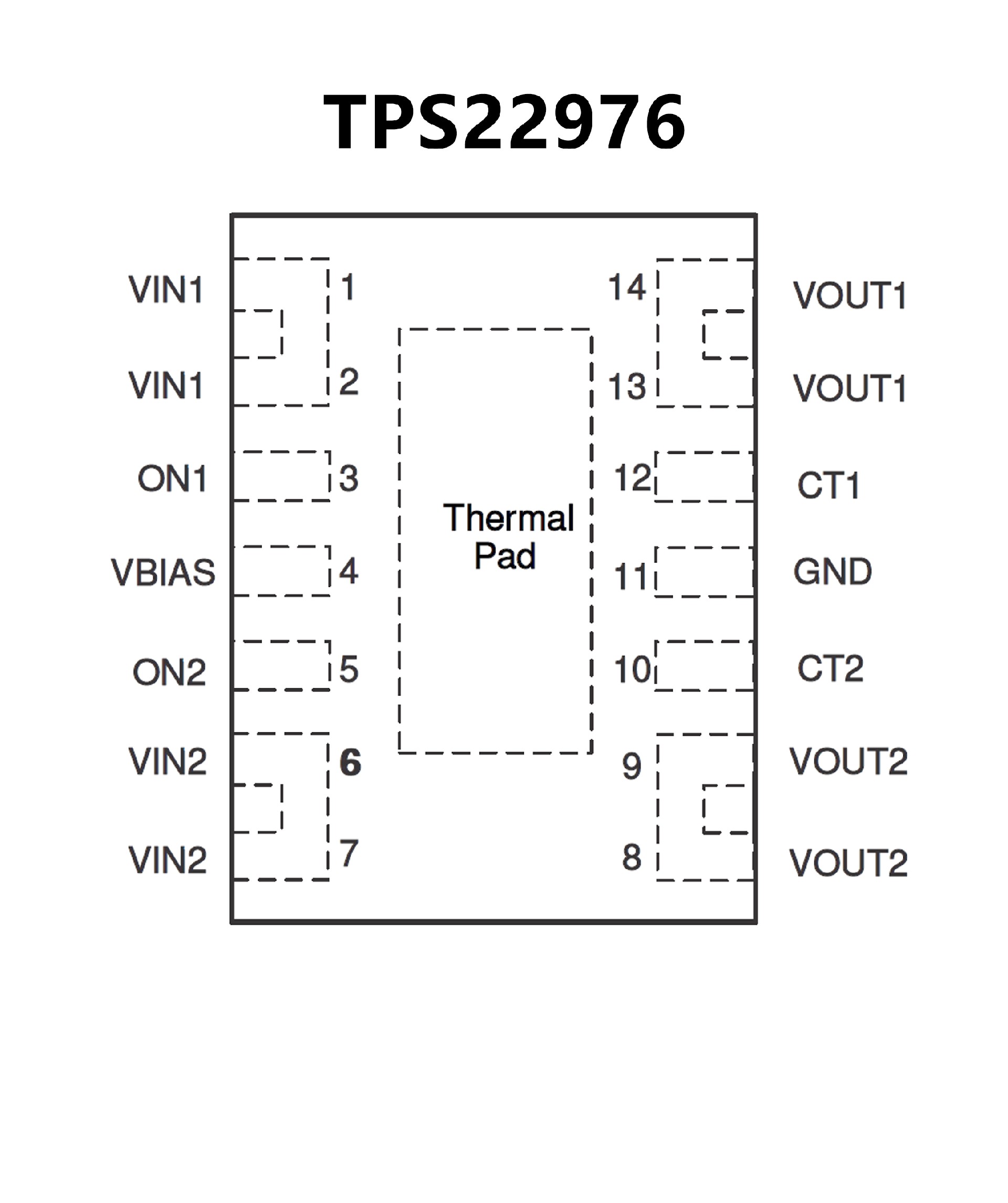

? Integrated dual-channel load switch
? Input voltage range: 0.6 V to VBIAS
? VBIAS voltage range: 2.5 V to 5.7 V
? On-resistance
RON = 14 mΩ (typical)
at VIN = 0.6 V to 5 V, VBIAS = 5 V
RON = 18 mΩ (typical)
at VIN = 0.6 V to 2.5 V, VBIAS = 2.5 V
? 6-A maximum continuous switch current per
channel
? Quiescent current for TPS22976, TPS22976N
37 μA (typical, both channels)
at VIN = VBIAS = 5 V
35 μA (typical, single channel)
at VIN = VBIAS = 5 V
? Quiescent current for TPS22976A
85 μA (typical, both channels)
at VIN = VBIAS = 5 V
83 μA (typical, single channel)
at VIN = VBIAS = 5 V
? Control input threshold enables use of
1.2-, 1.8-, 2.5-, and 3.3-V logic
? Configurable rise time
? Fast turn ON time (TPS22976A)
tON = 17μs at VIN = 1.05V
? Thermal shutdown
? Quick Output Discharge (QOD) (optional)
? SON 14-pin package with thermal pad
? ESD performance tested per JESD 22
2-kV HBM and 1-kV CDM
