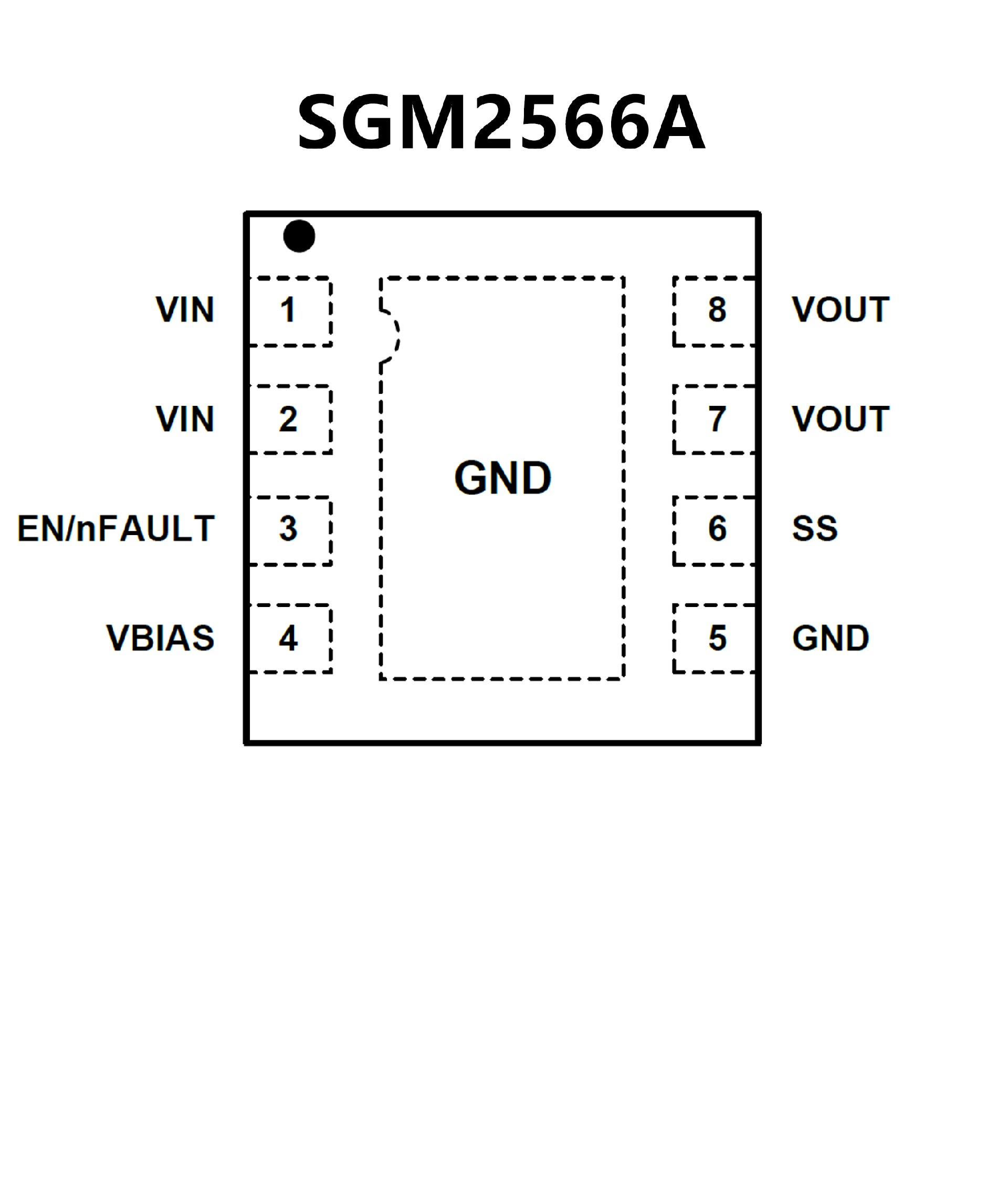

SGM2566AGTDE8G.pdf? Input Voltage Range: 0.8V to 5.3V
? Ultra-Low On-Resistance:
RDSON = 17mΩ at VIN = 3.3V (VBIAS = 5V)
? 6A Maximum Continuous Switch Current
? Low Quiescent Current:
16μA (VBIAS = 5V)
10μA (VBIAS = 2.5V)
? Reverse Current Blocking Support
? Built-In Thermal Shutdown
? Short-Circuit Protection
? Soft-Start Function and Configurable Rise Time
? Enable Input or Alert Output (EN/nFAULT Pin)
? Low Control Input Threshold Enables
Use of 1.2V,1.8V, 2.5V and 3.3V Logic
? SGM2566A: Quick Output Discharge
? -40℃ to +105℃ Operating Temperature Range
? Available in a Green TDFN-2×2-8L Package
? Integrated Single-Channel Load Switch

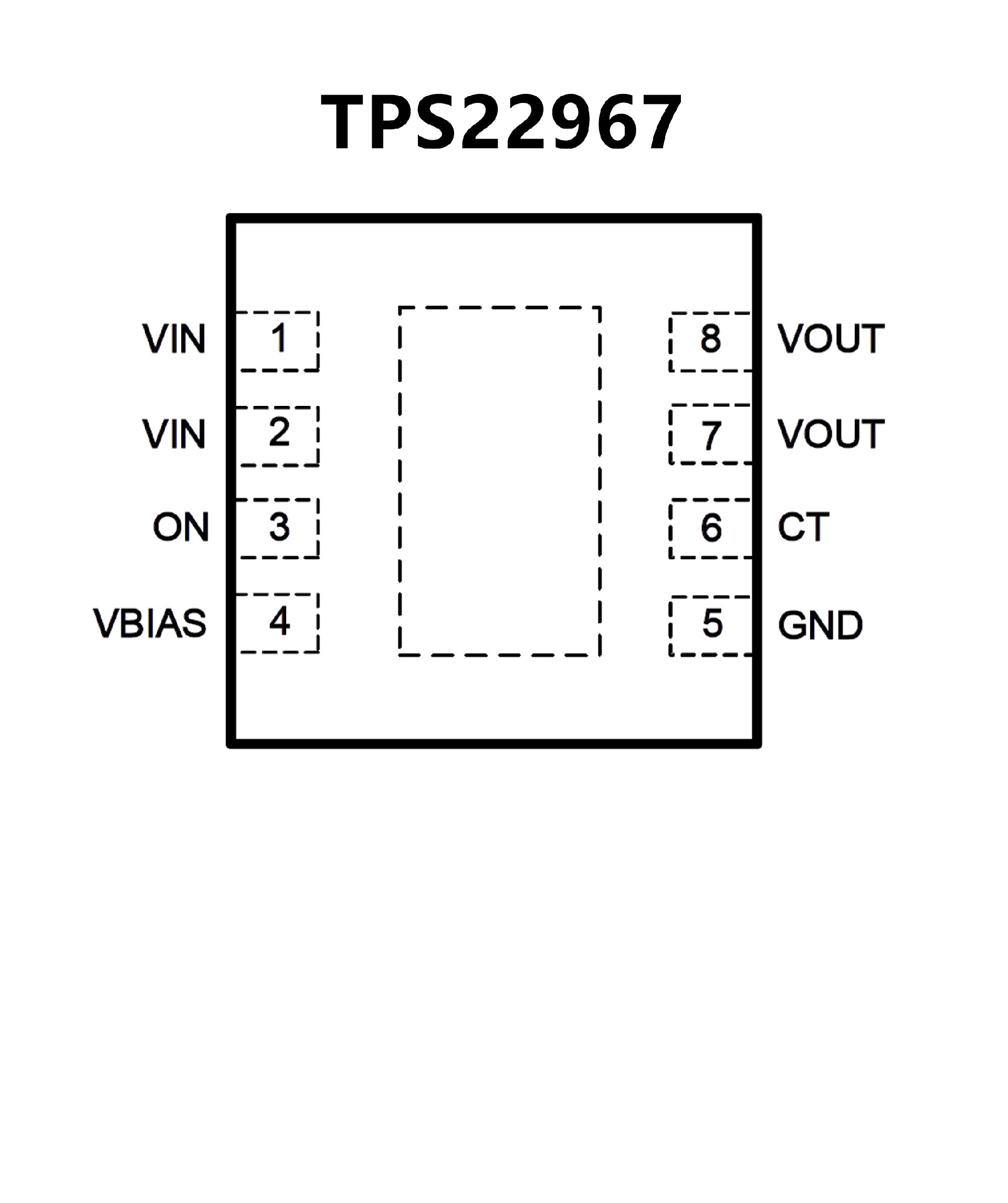

RON = 22 m? at VIN = 5 V (VBIAS = 5 V)
RON = 22 m? at VIN = 3.6 V (VBIAS = 5 V)
RON = 22 m? at VIN = 1.8 V (VBIAS = 5 V)
? 4-A Maximum Continuous Switch Current
? Low Quiescent Current (50 μA)
? Low Control Input Threshold Enables
Use of 1.2-V, 1.8-V, 2.5-V, and 3.3-V Logic
? Configurable Rise Time
? Quick Output Discharge (QOD)
? WSON 8-Pin Package With Thermal Pad
