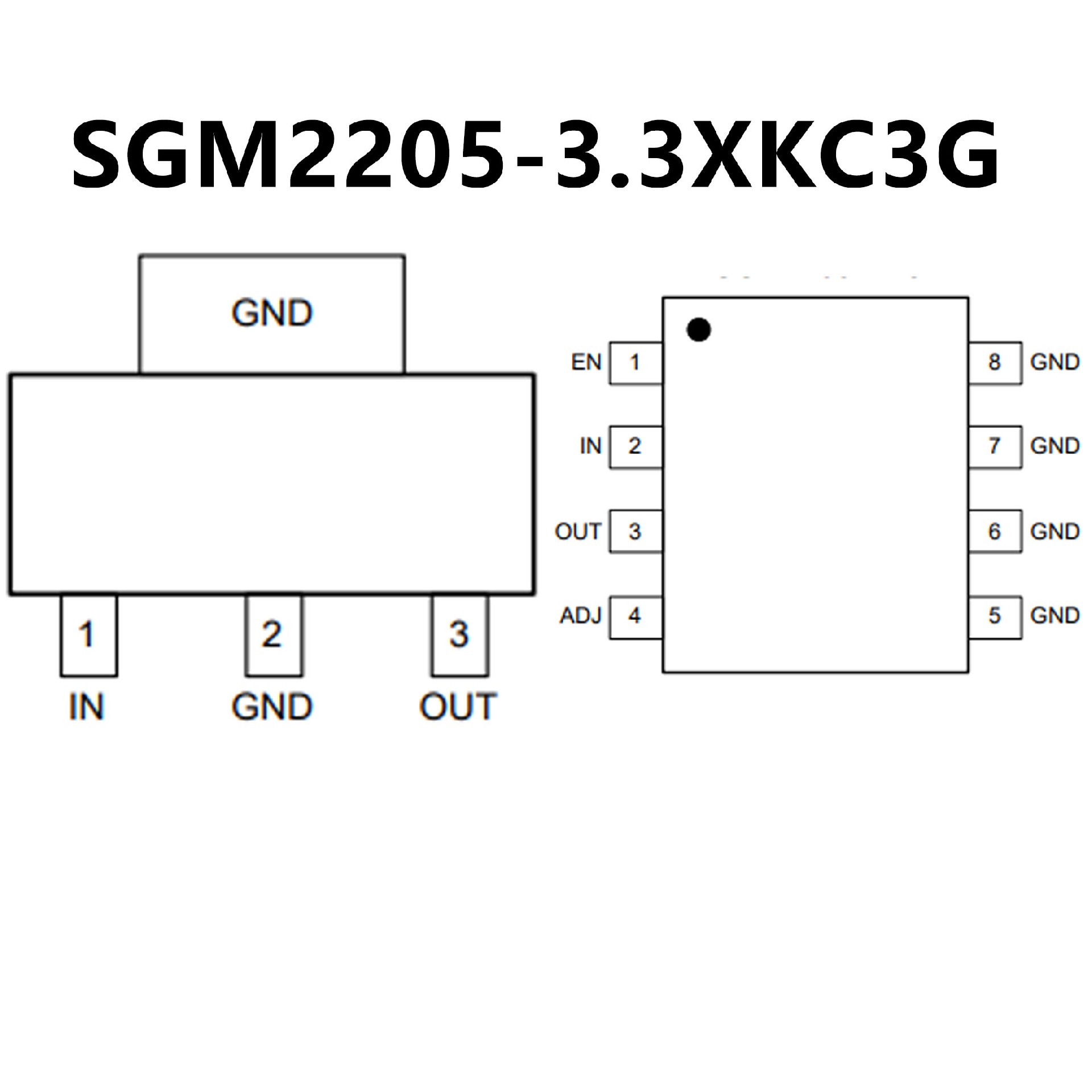

SGM2205.pdf? 2.5V to 20V Wide Input Voltage Range
? Output Voltage Range: 1.8V to 15V
? Guaranteed 800mA Output over the Full
Operating Temperature Range
? Low 480mV (TYP) Dropout Voltage at Full Load
? Extremely Tight Load and Line Regulation
? Fast Load Transient
? Low Temperature Coefficient
? Output Shorted to GND Protection
? Current and Thermal Limiting
? No-Load Stability
? Ultra Low Noise Capability
? -40℃ to +125℃ Operating Temperature Range
? Thermally-Efficient Surface-Mount Package
? Available in Green SOT-89-3, SOT-223-3, SOIC-8,
TDFN-3×3-8L and TO-263-5B Packages
? Output Voltage Accuracy: ±1.5%

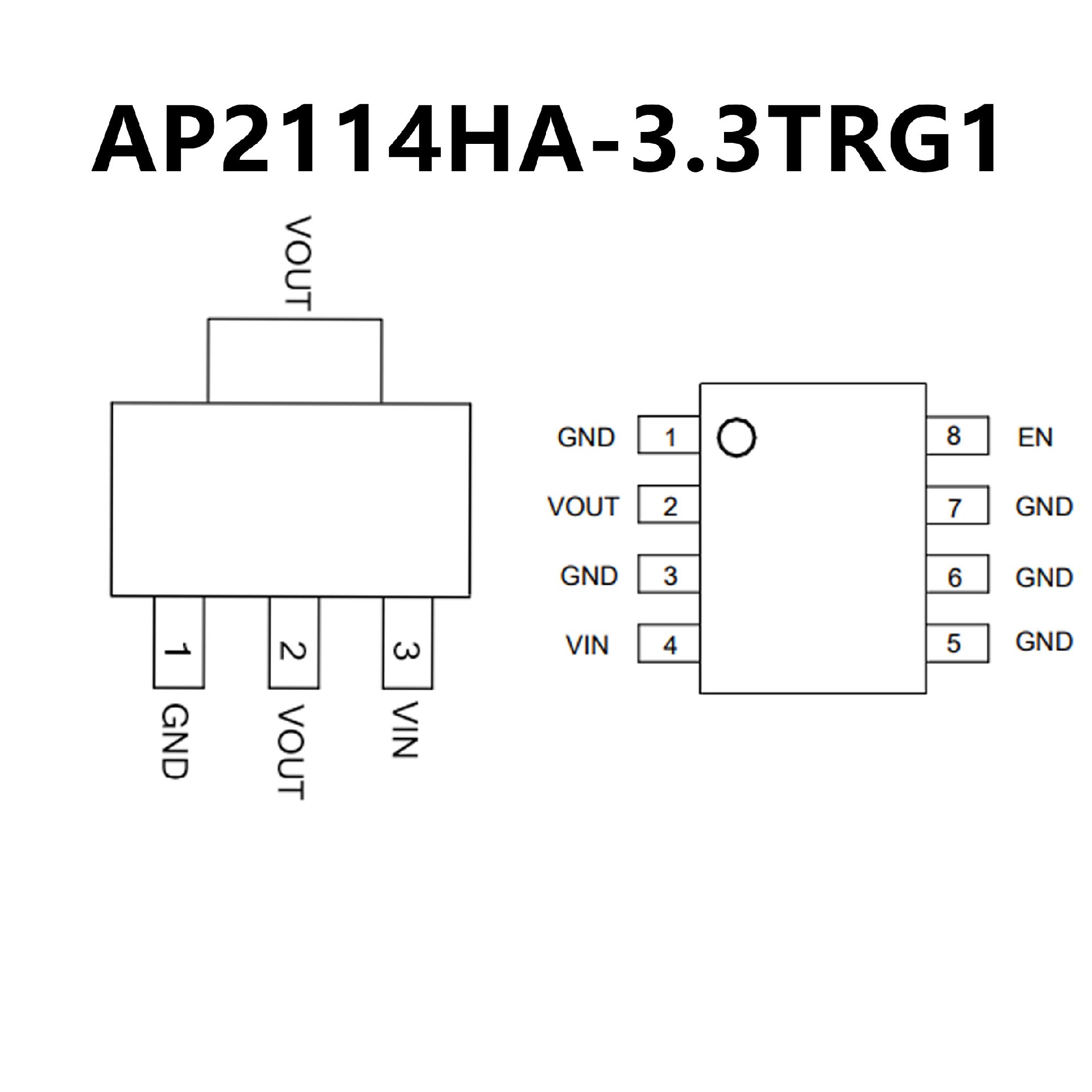

? Output Current: 1A (Min)
? Fold-back Short Current Protection: 50mA
? Low Dropout Voltage (3.3V): 450mV (Typ)@IOUT=1A
? Stable with 4.7μF Flexible Cap: Ceramic,
Tantalum and Aluminum Electrolytic
? Excellent Line Regulation: 0.02%/V (Typ),
0.1%/V (Max) @ IOUT=30mA
? Excellent Load Regulation: 0.2%A (Typ) @
IOUT=1mA to 1A
? Low Quiescent Current: 60μA (1.2V/1.5V/1.8V /2.5V/ADJ)
? Low Output Noise: 30μVRMS
? PSRR: 68dB @ Freq=1KHz (1.2V/1.5V/1.8V /ADJ)
? OTSD Protection
? Operating Temperature Range: -40°C to 85°C
? ESD: MM 400V, HBM 4000V
