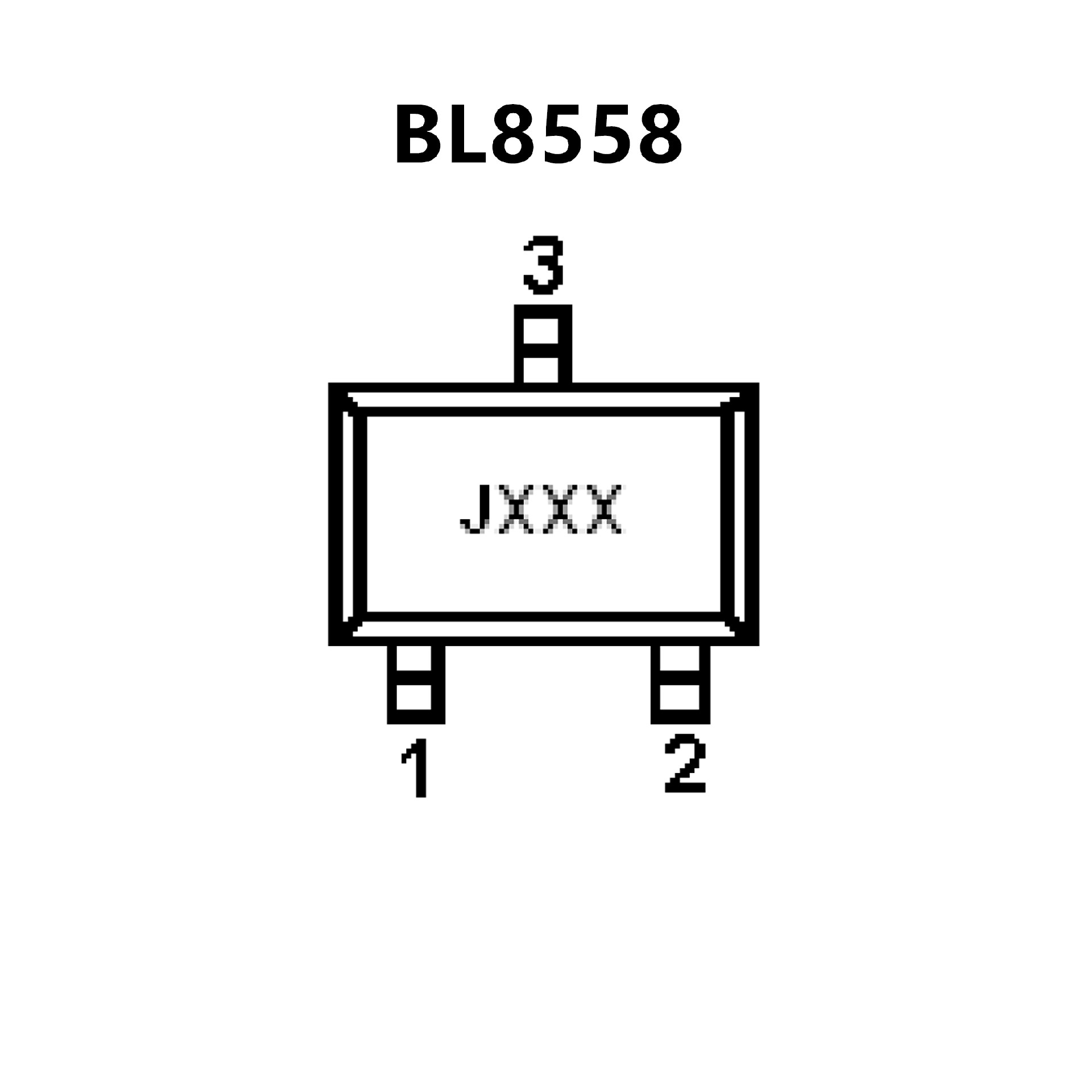

BL8558.pdf? Low Power Consumption: 75μA（Typ.）
? Low output noise (47uVRMS)
? Standby Mode: 0.1uA
? Low dropout Voltage: 0.46V@500mA (Typ.)
? High Ripple Rejection: 66dB@100Hz (Typ.)
? Low Temperature Coefficient: ±100ppm/°C
? Excellent Line regulation: 0.05%/V
? Build-in chip enable and discharge circuit
? Output Voltage Range: 1.2V~4.5V
(customized on command every 0.1V step)
? Highly Accurate: ±2% (±1% customized)
? Output Current Limit
? Short Circuit Thermal Folded Back Protection
? Low-Noise for RF Application
? Fast Response in Line/Load Transient
? Quick Start-Up (Typically 50μs)
? 0.01μA Standby Current When Shutdown
? Low Dropout : 380mV @ 500mA
? Wide Operating Voltage Ranges : 2.5V to 5.5V
? TTL-Logic-Controlled Shutdown Input
? Low Temperature Coefficient
? Current Limiting Protection
? Thermal Shutdown Protection
? Only 1μF Output Capacitor Required for Stability
? High Power Supply Rejection Ratio
? Custom Voltage Available
? RoHS Compliant and 100% Lead (Pb)-Free
