RS-485接口電路,MBUS接口電路, BL3085 Replace MAX3085.
BL3085
BL3085.pdf
BL3085.pdfFEATURES
? +5V工作電壓
? 內置失效保護電路
? 高達500kbps的傳輸速率
? 允許多達256個收發器掛接在總線上
? 具有±18kV IEC 61000-4-2接觸放電保護能力
? SOP8封裝

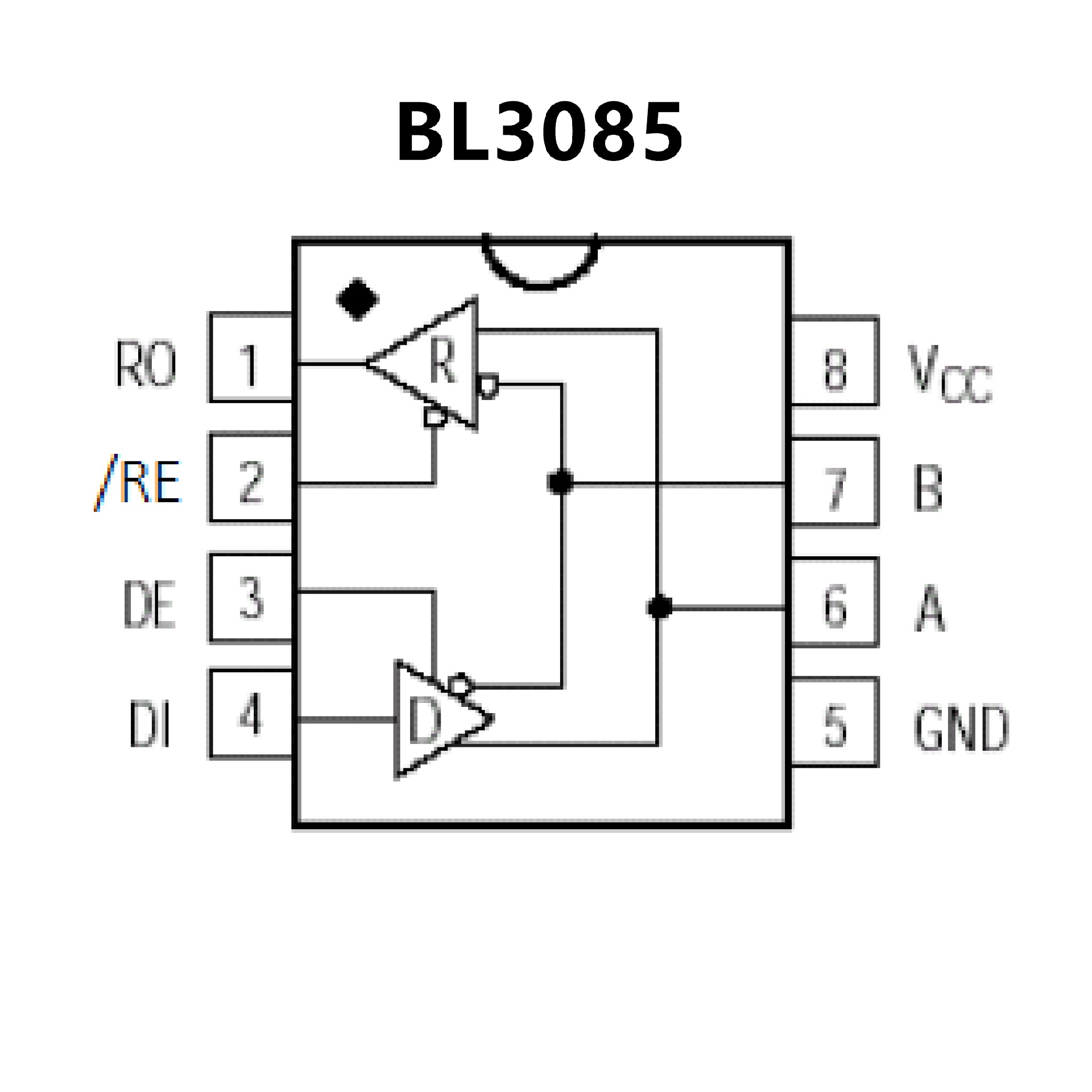

PIN CONFIGUTION
優勢替代
FEATURES
? For Fault-Tolerant Applications:MAX3430:
±80V Fault-Protected, Fail-Safe, 1/4- Unit
Load, +3.3V RS-485 Transceiver
? For Low-Voltage Applications:MAX3362:
+3.3V, High-Speed, RS-485/RS-422
Transceiver in a SOT23 Package
? For Multiple Transceiver Applications:
MAX3030E–MAX3033E: ±15kV ESD-Protected,
+3.3V, Quad, RS-422 TransmittersMAX3040
–MAX3045: ±10kV ESD-Protected, Quad,
+5V, RS-485/RS-422 Transmitters

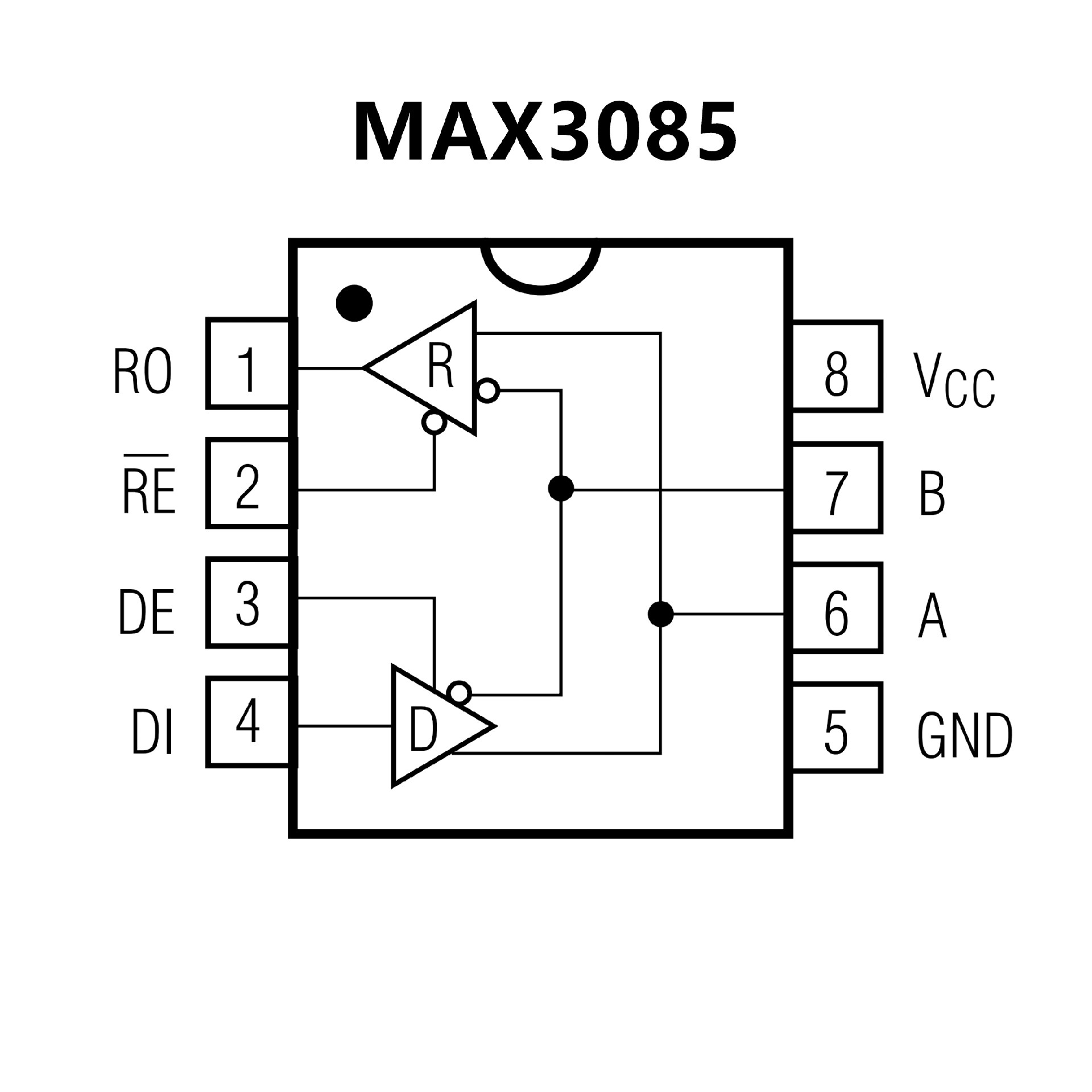

PIN CONFIGUTION
