IIC,I2C,EEPROM,存儲器,24,128k,128,BL24SA128D Replace 24SA128.
BL24SA128D
BL24SA128D.pdf
BL24SA128D.pdfFEATURES
? Compatible with all I2C bidirectional data transfer protocol
? Memory array:
128 Kbits (8 Kbytes) of EEPROM
Page size: 64 bytes
? Single supply voltage and high speed:
1MHz@1.8V Random and sequential Read modes
? Write:
Byte Write within 3 ms
Page Write within 3 ms
Partial Page Writes Allowed
? Software data Protection
? Slave Address Configurable
? Schmitt Trigger, Filtered Inputs for Noise Suppression
? High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
? Enhanced ESD/Latch-up protection
? WLCSP4 Package

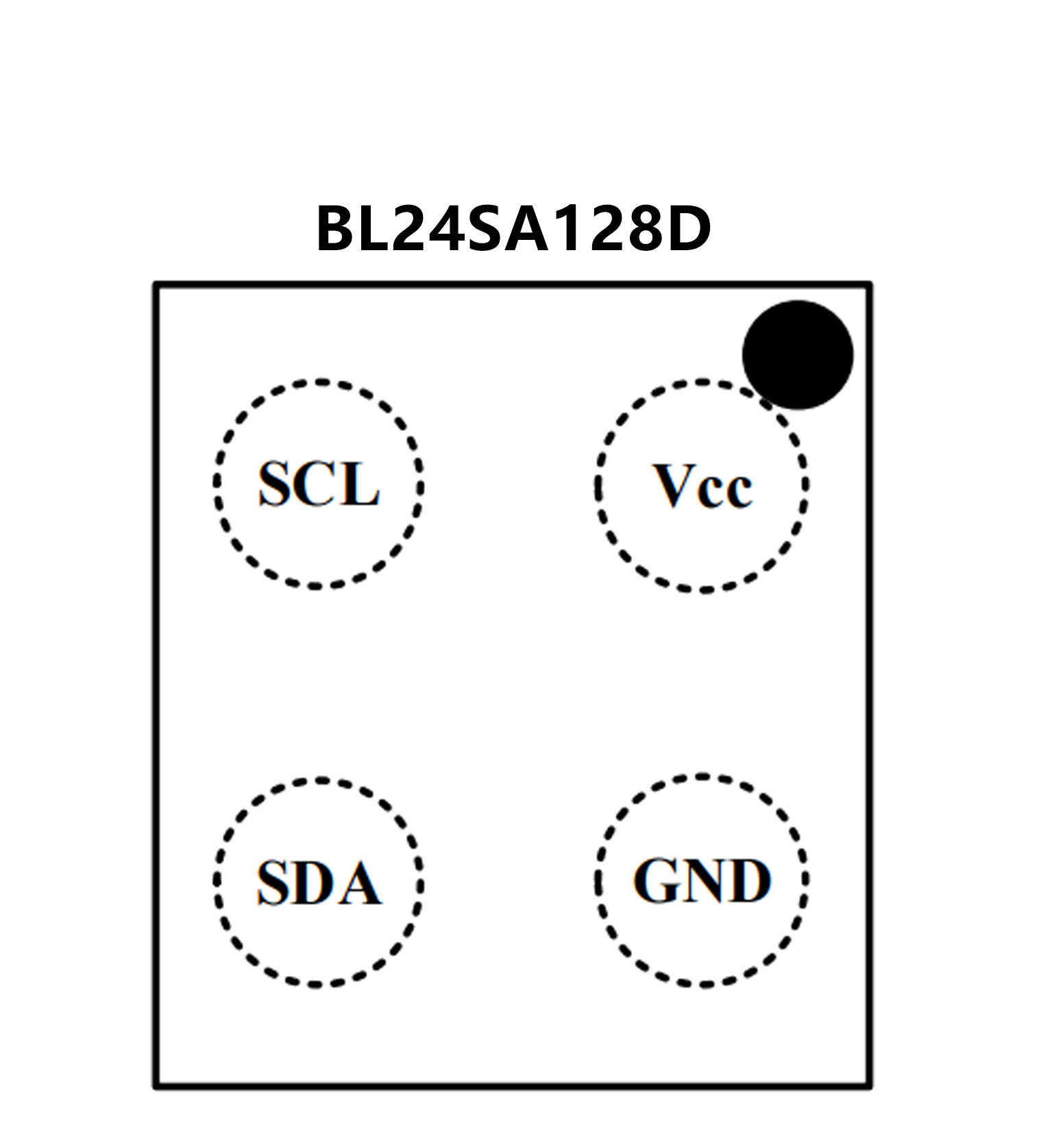

PIN CONFIGUTION
優勢替代
