BL24C64A.pdf? Compatible with all I2C bidirectional
data transfer protocol
? Memory array:
64 Kbits (8 Kbytes) of EEPROM
Page size: 32 bytes
? Single supply voltage and high speed:
1 MHz
? Random and sequential Read modes
? Write:
Byte Write within 3 ms
Page Write within 3 ms
Partial Page Writes Allowed
? Schmitt Trigger, Filtered Inputs for Noise Suppression
? High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
? Enhanced ESD/Latch-up protection
HBM 8000V

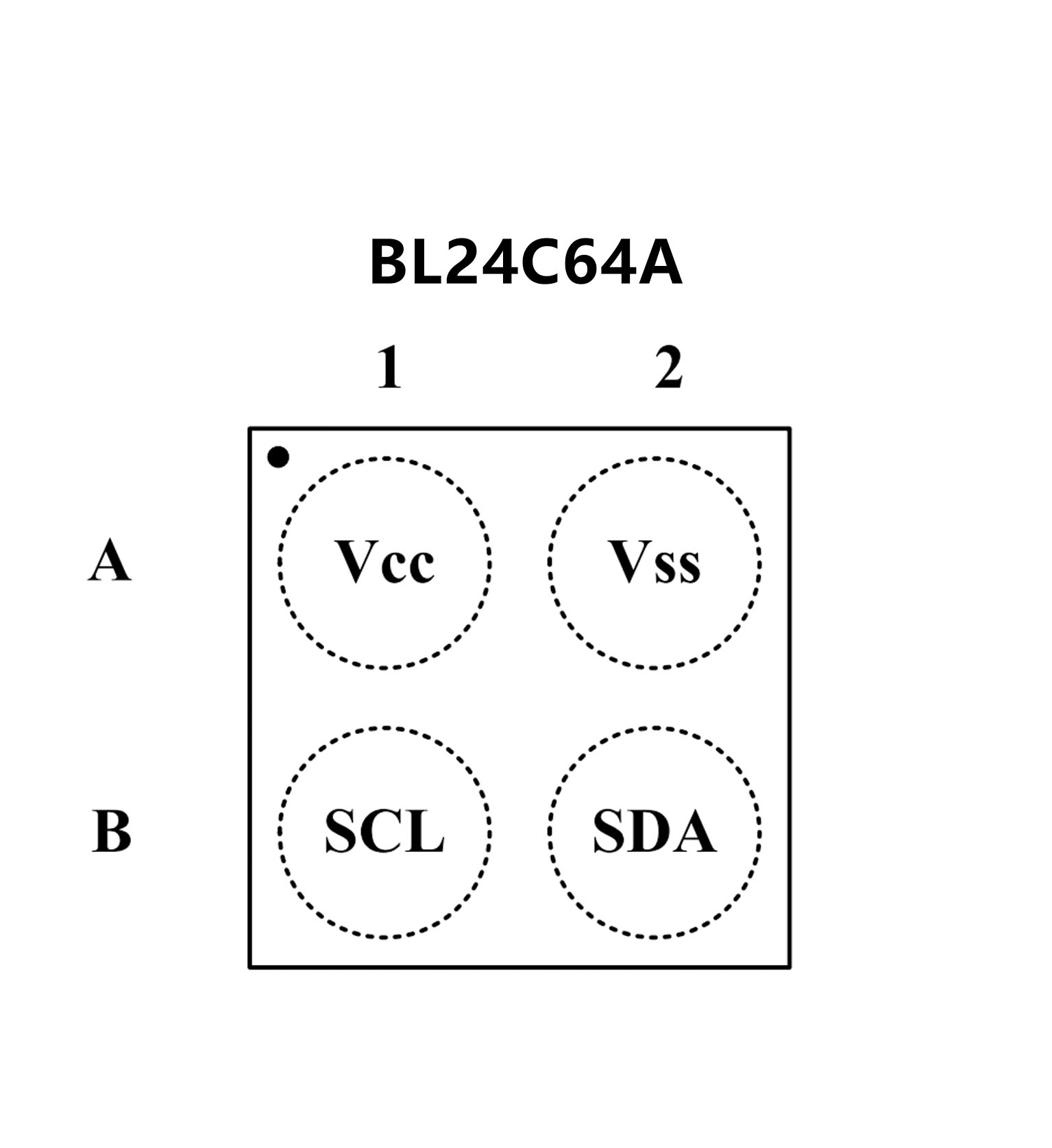

? WLCSP4 packages
? Supports Standard, Fast and Fast?Plus I2C Protocol
? 1.7 V to 5.5 V Supply Voltage Range
? 32?Byte Page Write Buffer
? Hardware Write Protection for Entire Memory
? Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs
(SCL and SDA)
? Low Power CMOS Technology
? 1,000,000 Program/Erase Cycles
? 100 Year Data Retention
? Industrial and Extended Temperature Range

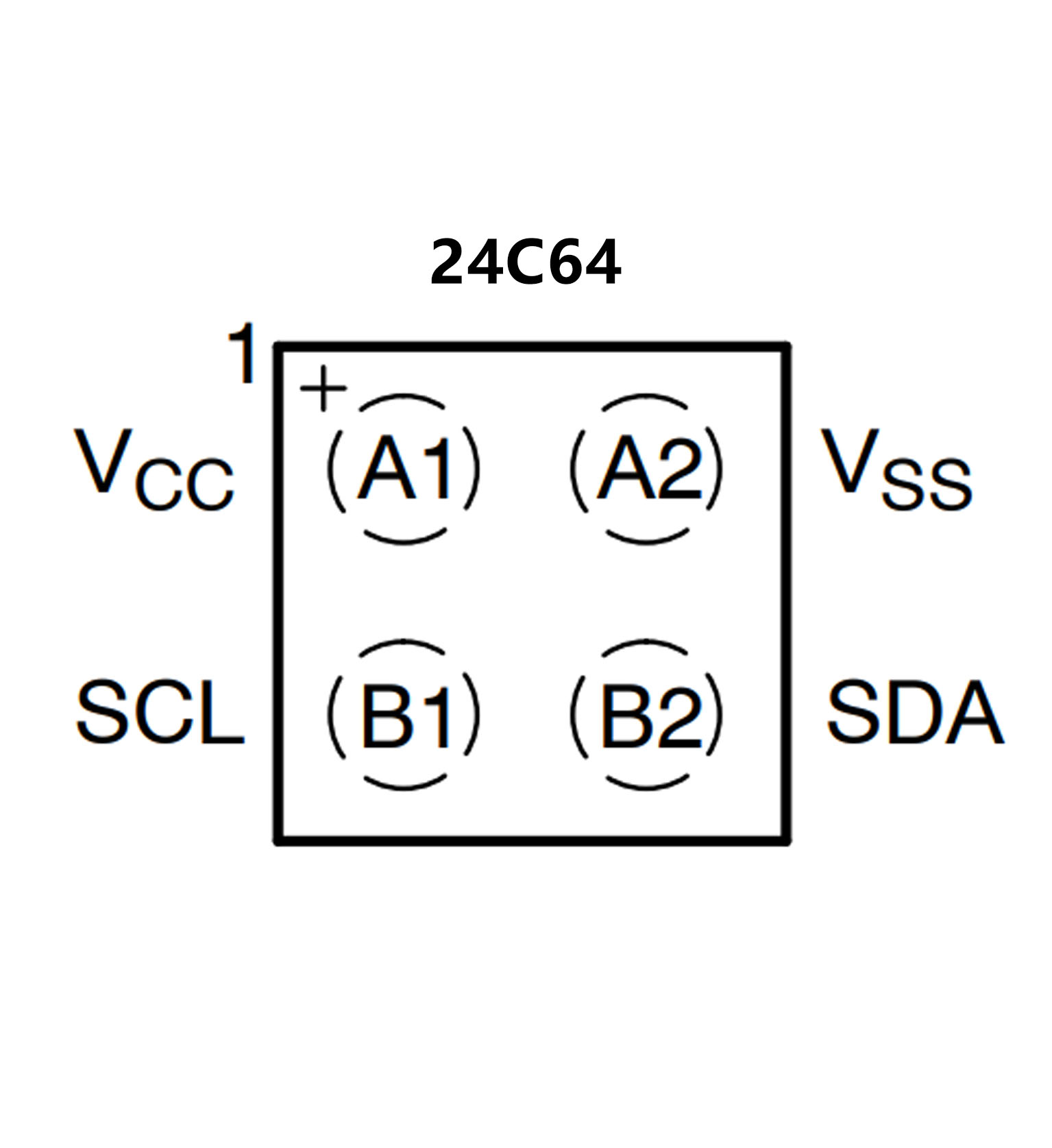

? SOIC, TSSOP, UDFN 8?pad and Ultra?thin WLCSP 4?bump Packages
? This Device is Pb?Free, Halogen Free/BFR Free, and RoHS Compliant
