5A Bipolar Linear Regulator, BL1084 Replace LM1084.
BL1084
BL1084.pdf
BL1084.pdfFEATURES
? Fixed and adjustable versions.
? Maximum output current : 5A
? Maximum input voltage: 15V
? Line regulation: 0.2％ (Typical)
? Load regulation: 0.2％ (Typical)
? On-Chip Thermal Shutdown
? Operation environment Temperature: -10℃
~ 85℃

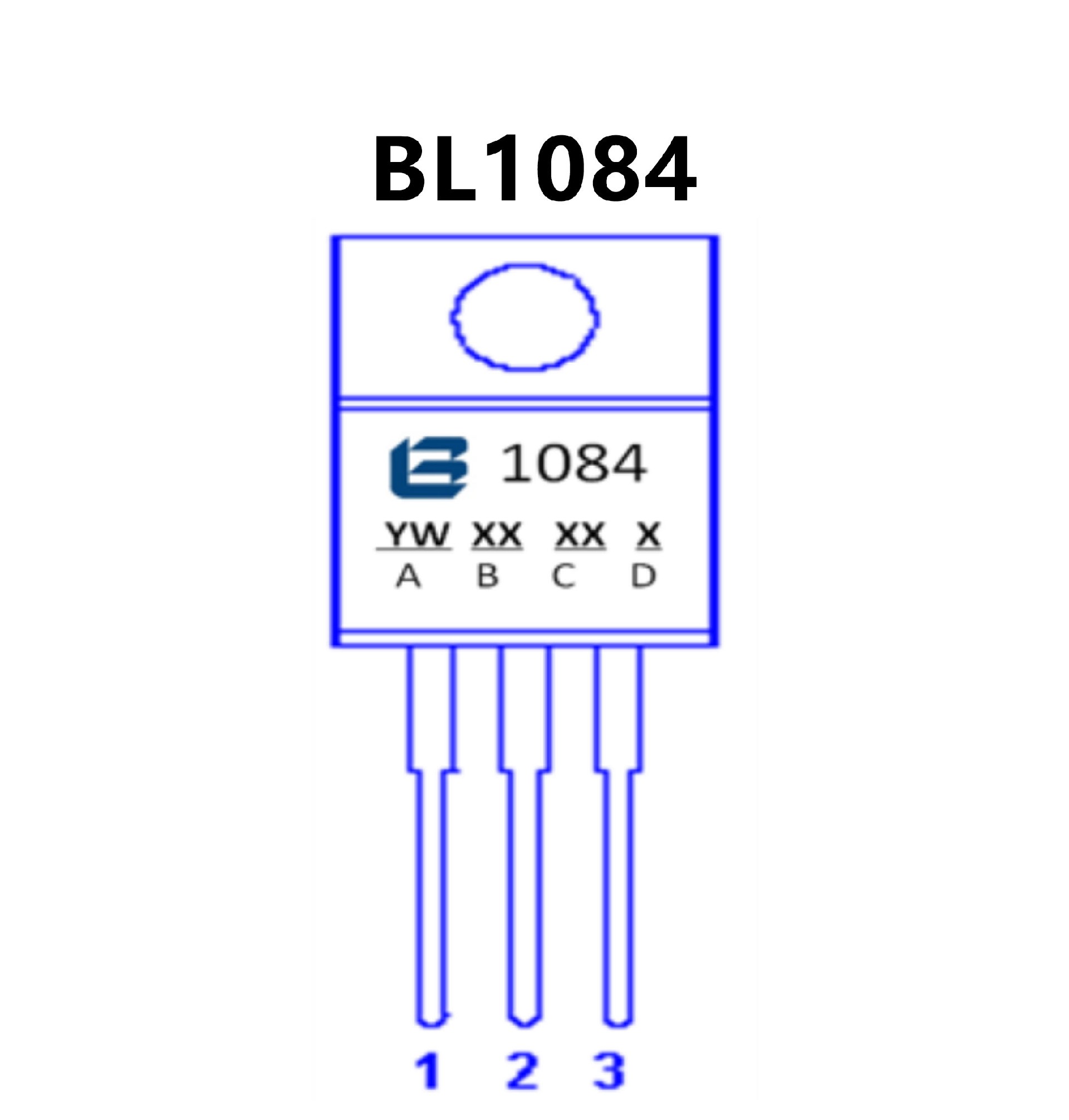

PIN CONFIGUTION
優勢替代
FEATURES
? Available in 3.3-V, 5.0-V, and Adjustable Versions
? Current Limiting and Thermal Protection
? Output Current 5 A
? Industrial Temperature Range ?40°C to 125°C
? Line Regulation 0.015% (Typical)
? Load Regulation 0.1% (Typical)

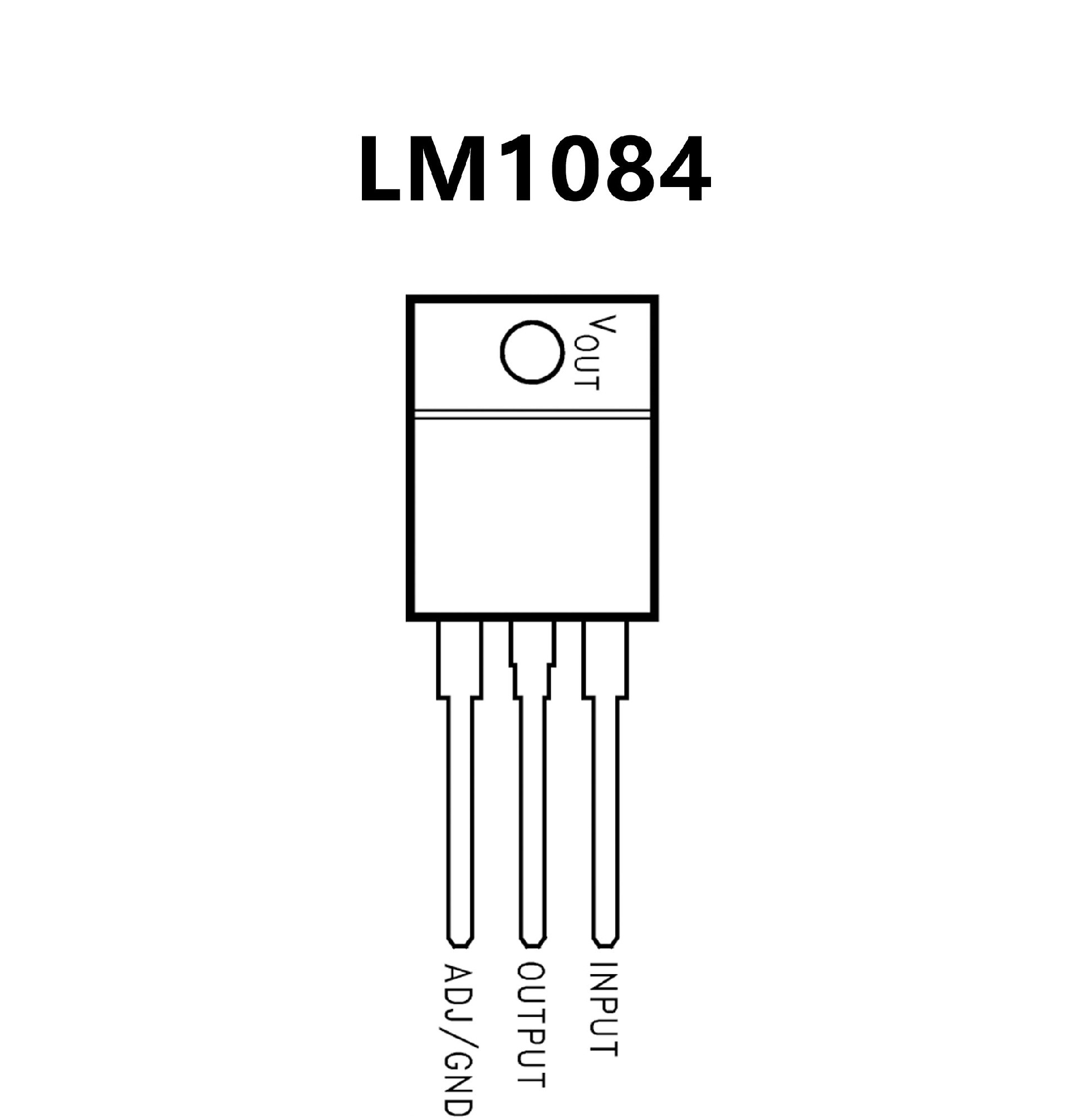

PIN CONFIGUTION
