? 16 Bits ADC:

    SGM51613H: 800kSPS

    SGM51652H: 500kSPS

    SGM51622H: 250kSPS

? Supported Input Ranges:

    Bipolar Single-Ended Ranges: ±10.24V, ±5.12V, and ±2.56V

  Unipolar Single-Ended Ranges: 0V to 10.24V and 0V to 5.12V

    Bipolar Differential Ranges: ±10.24V, ±5.12V, and ±2.56V

? Supply Voltage Ranges:

    Analog Supply: 5V

    I/O Supply: 1.65V to 5V

? On-Chip Reference: 4.096V

? Differential Nonlinearity (DNL):

    SGM51622H/SGM51652H:

    0.55LSB/+0.75LSB (TYP) for All Bipolar Ranges

    0.7LSB/+1.2LSB (TYP) for All Unipolar Range

    SGM51613H:

    0.6LSB/+0.75LSB (TYP) for All Bipolar Ranges

    0.7LSB/+1.4LSB (TYP) for All Unipolar Range

? Integral Nonlinearity (INL):

    SGM51622H/SGM51652H:

    ±1LSB (TYP) for All Bipolar Ranges

    ±1.5LSB (TYP) for All Unipolar Range

    SGM51613H:

    ±1.5LSB (TYP) for All Bipolar Ranges

    ±2LSB (TYP) for All Unipolar Range

? Signal-to-Noise Ratio (SNR):

    SGM51622H/SGM51652H: 91dB (TYP)

    SGM51613H: 90.5dB (TYP)

? Total Harmonic Distortion (THD):

    SGM51622H/SGM51652H: -104dB (TYP)

    SGM51613H: -100dB (TYP)

? Alarm Features

? Daisy-Chain Operation

? -40℃ to +125℃ Operating Temperature Range

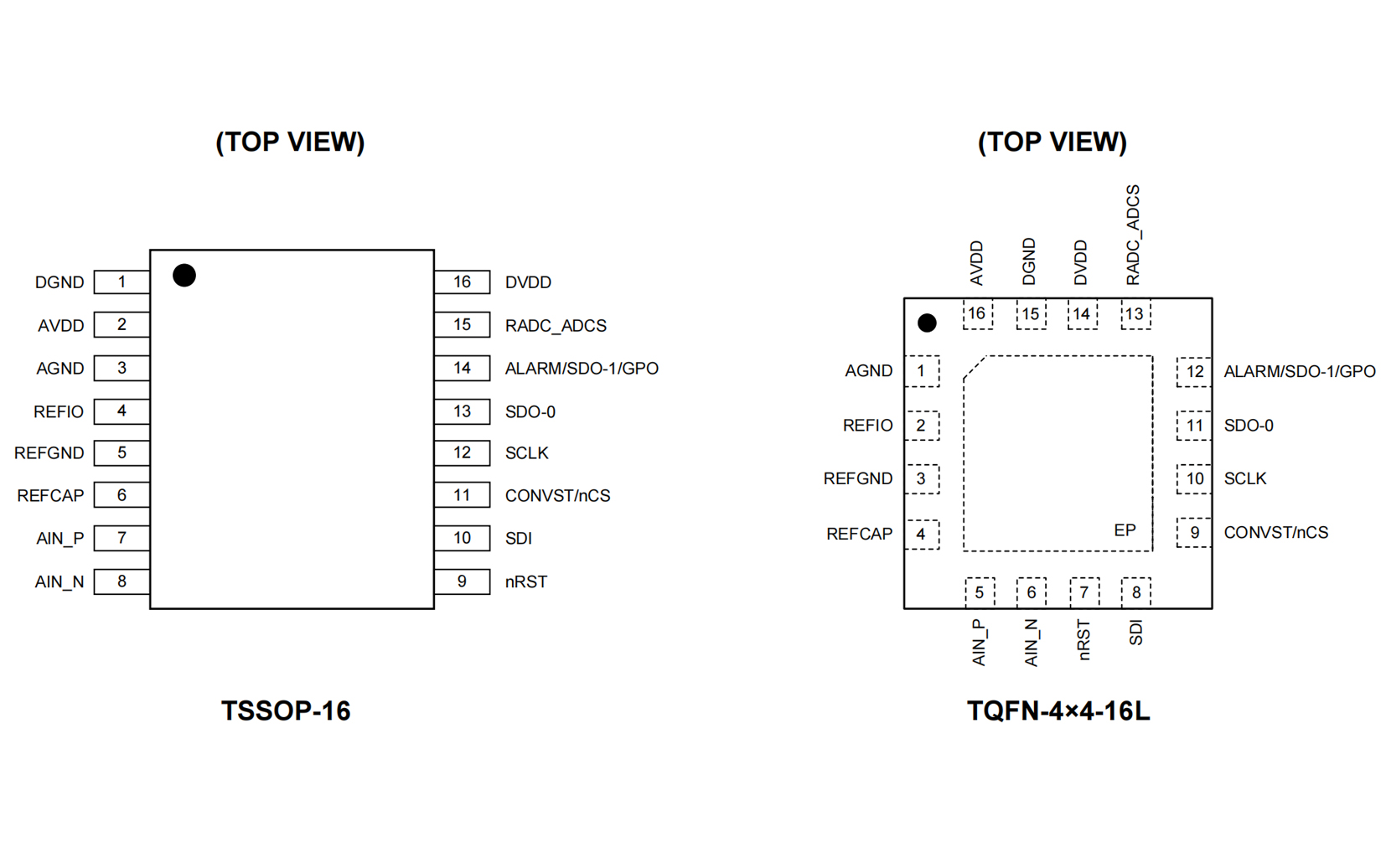

? Available in Green TSSOP-16 and TQFN-4×4-16L Packages
