Automotive, 12-Bit, 2MSPS, 1-Channel, Single-Ended, Serial Interface ADC.
SGM51223Q
SGM51223Q.pdf
SGM51223Q.pdf
No.14148
FEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Unipolar Input Range: 0V to AVDD
? Support Single-Ended Input
? Ultra-Low Power Consumption:
3.96mW (TYP) at 2MSPS with 3.6V AVDD
? Throughput:
2MSPS with Zero Data Latency
? Excellent Performance:
12-Bit Resolution with NMC
INL: ±0.8LSB (TYP)
DNL: ±0.5LSB (TYP)
SNR: 72dB (TYP) at fIN = 2kHz
THD: -80dB (TYP) at fIN = 2kHz
? Integrated Offset Calibration
? SPI-Compatible Serial Interface
? Operating Temperature Range: -40℃ to +125℃
? Available in a Green VSSOP-8 Package
DESCRIPTION
The SGM51223Q is a 12-bit, 1-channel input, successive approximation (SAR) analog-to-digital converter (ADC).
The SGM51223Q analog power supply range is 2.35V to 3.6V. The SGM51223Q has an SPI-compatible interface with the digital power supply range of 1.65V to 3.6V.
The device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
The SGM51223Q is available in a Green VSSOP-8 package. It operates over an ambient temperature range -40℃ to +125℃.

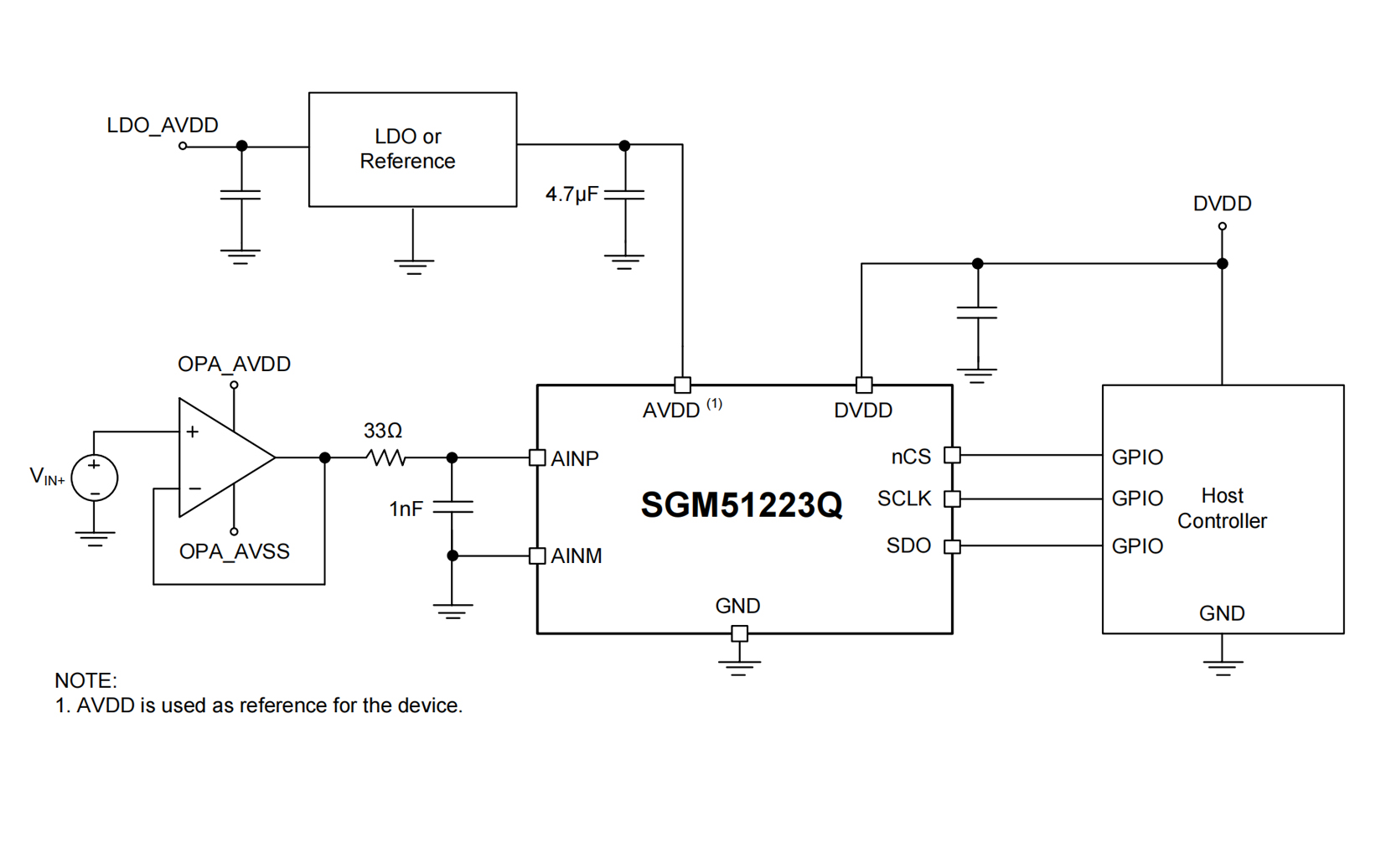

APPLICATION CIRCUIT

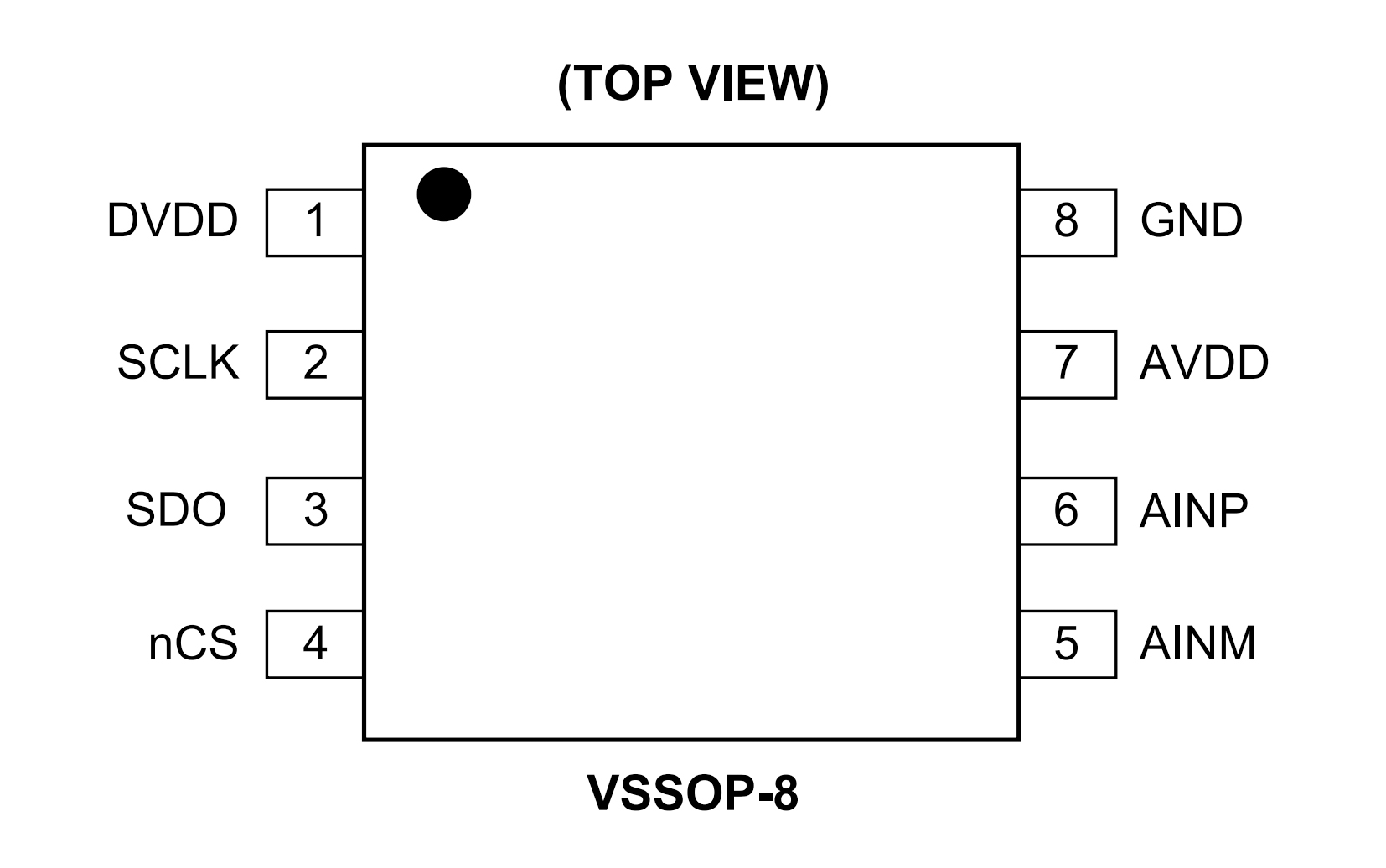

PIN CONFIGUTION
