1.5A, Low Dropout Positive Regulator.
SGM2217Q
SGM2217Q.pdf
SGM2217Q.pdf
No.14159
FEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Wide Input Voltage Range: 2.8V to 30V
? Adjustable Output from 1.25V to 26V
? 1.5A Output Current
? Low Dropout Voltage: 1.32V (TYP) at 1.5A
? Line Regulation: 0.05% (TYP)
? Load Regulation: 0.01% (TYP)
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? Stable with Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-8 (Exposed Pad) Package
DESCRIPTION
The SGM2217Q is a low noise, high current and low dropout voltage linear regulator. It is capable of supplying 1.5A output current with typical dropout voltage of 1.32V. The operating input voltage range is from 2.8V to 30V. The adjustable output voltage range is from 1.25V to 26V.
Other features include short-circuit current limit and thermal shutdown protection.
This device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
The SGM2217Q is available in a Green SOIC-8 (Exposed Pad) package. It operates over an operating temperature range of -40℃ to +125℃.

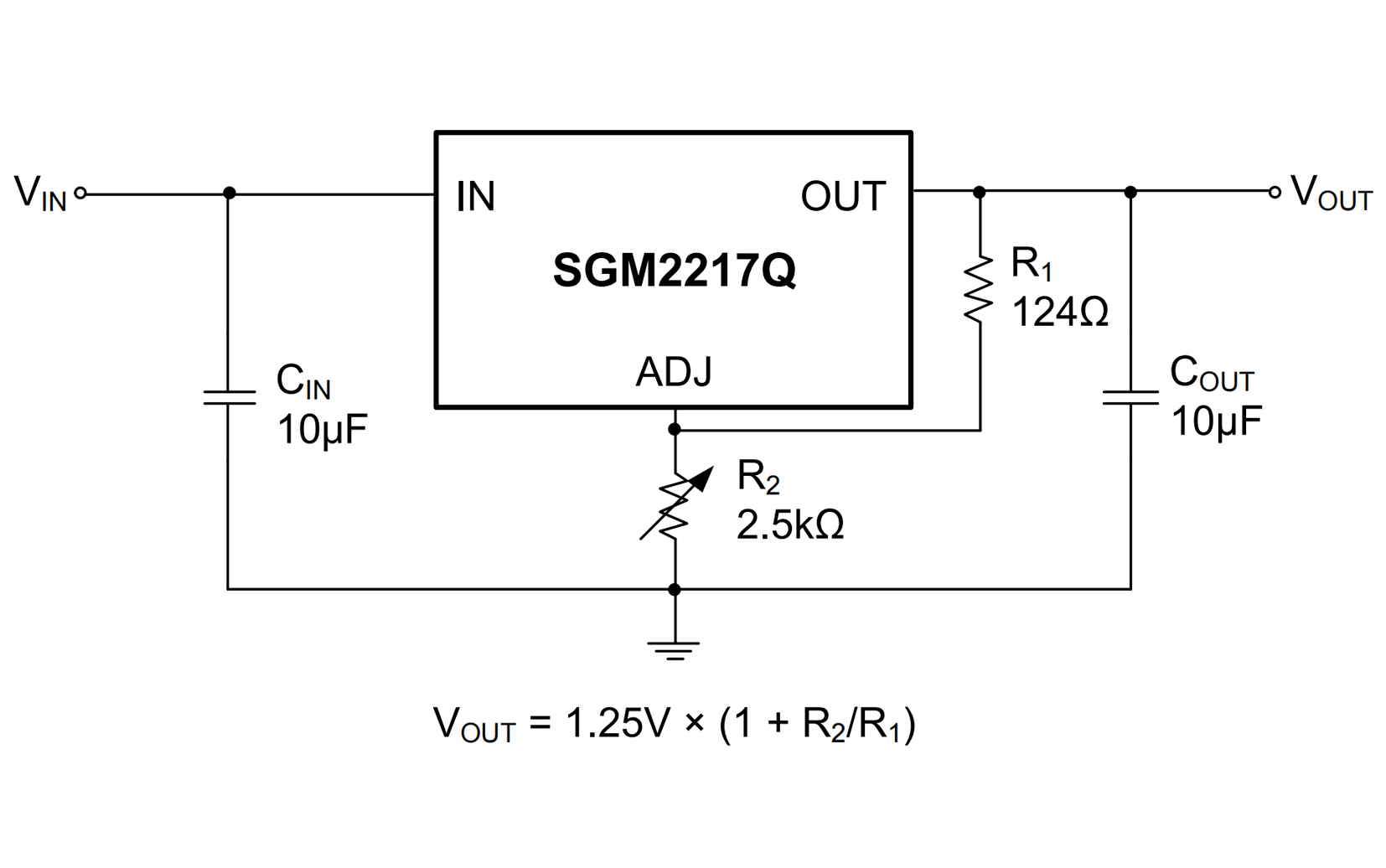

APPLICATION CIRCUIT

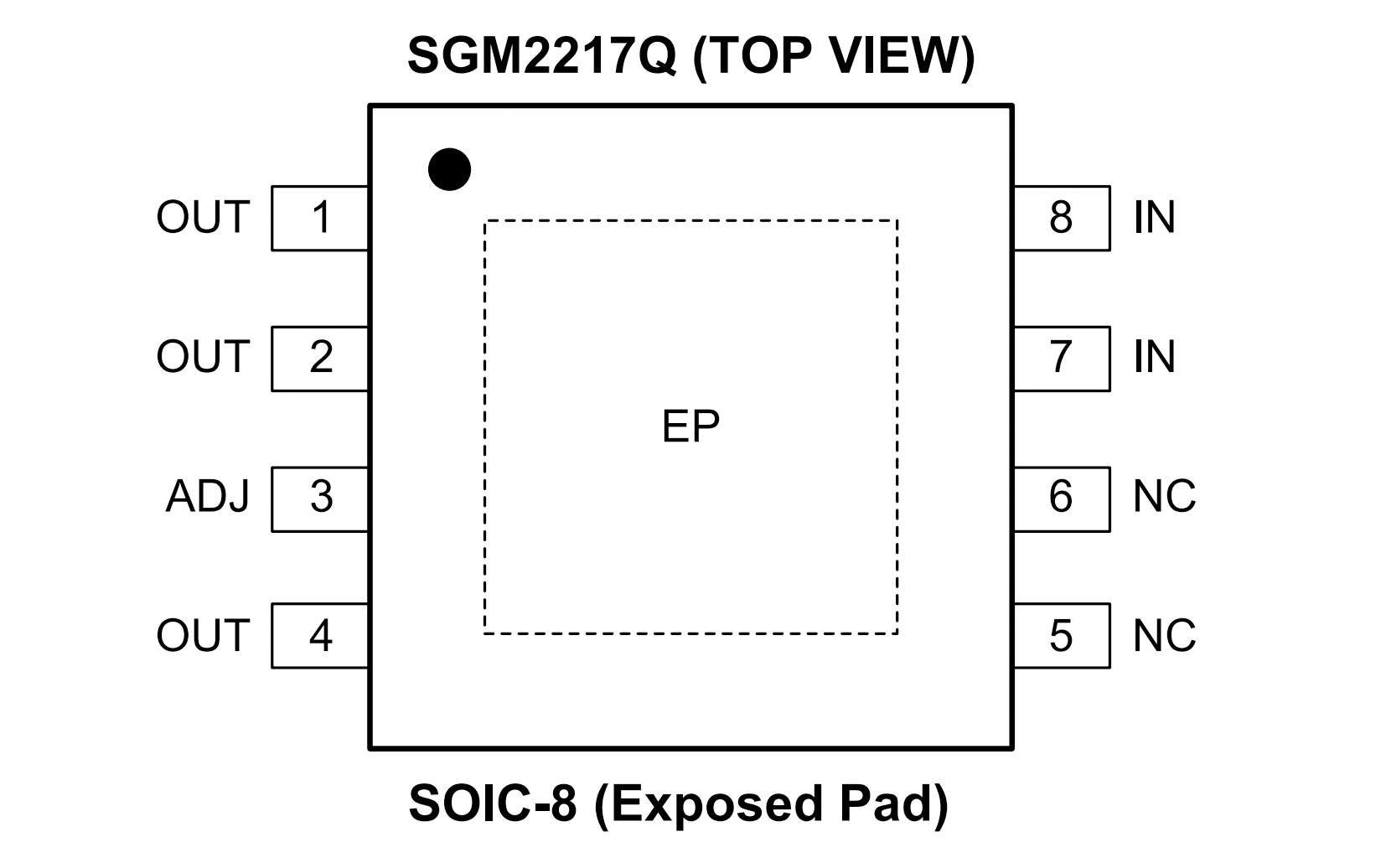

PIN CONFIGUTION
