Surface mounted Schottky barrier diode.
BAS40-04T
BAS40-04T.pdf
BAS40-04T.pdf
No.13525
FEATURES
? Low Forward Voltage Drop
? Fast Switching
? Ultra-Small Surface Mount Package
? PN Junction Guard Ring for Transient and ESD Protection
DESCRIPTION
Mechanical Data
? Package: SOT523
? Package Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Finish – Matte Tin Plated Leads, Solderable
per MIL-STD-202, Method 208
? Polarity: See Diagrams Below
? Weight: 0.002 grams (Approximate)

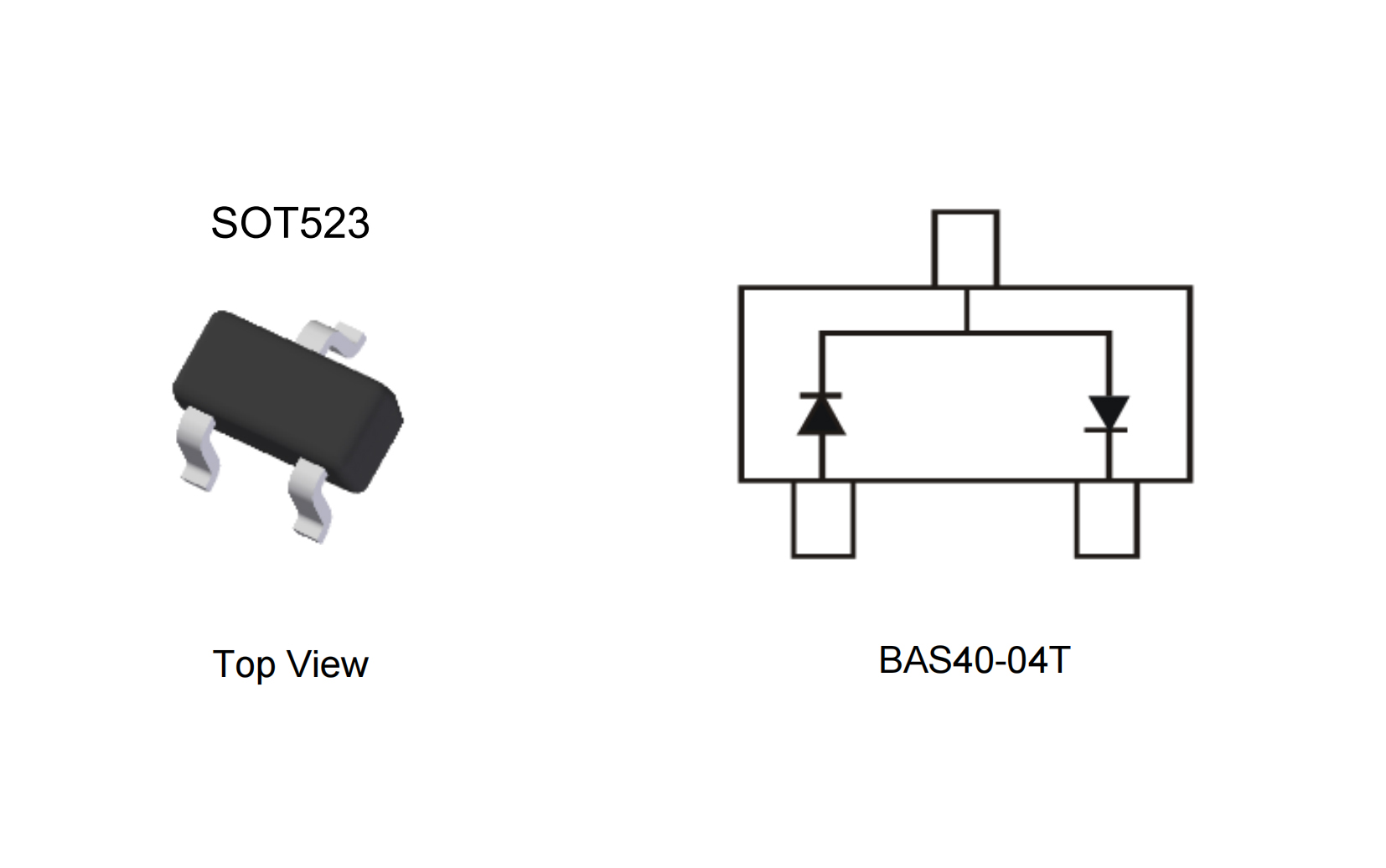

APPLICATION CIRCUIT

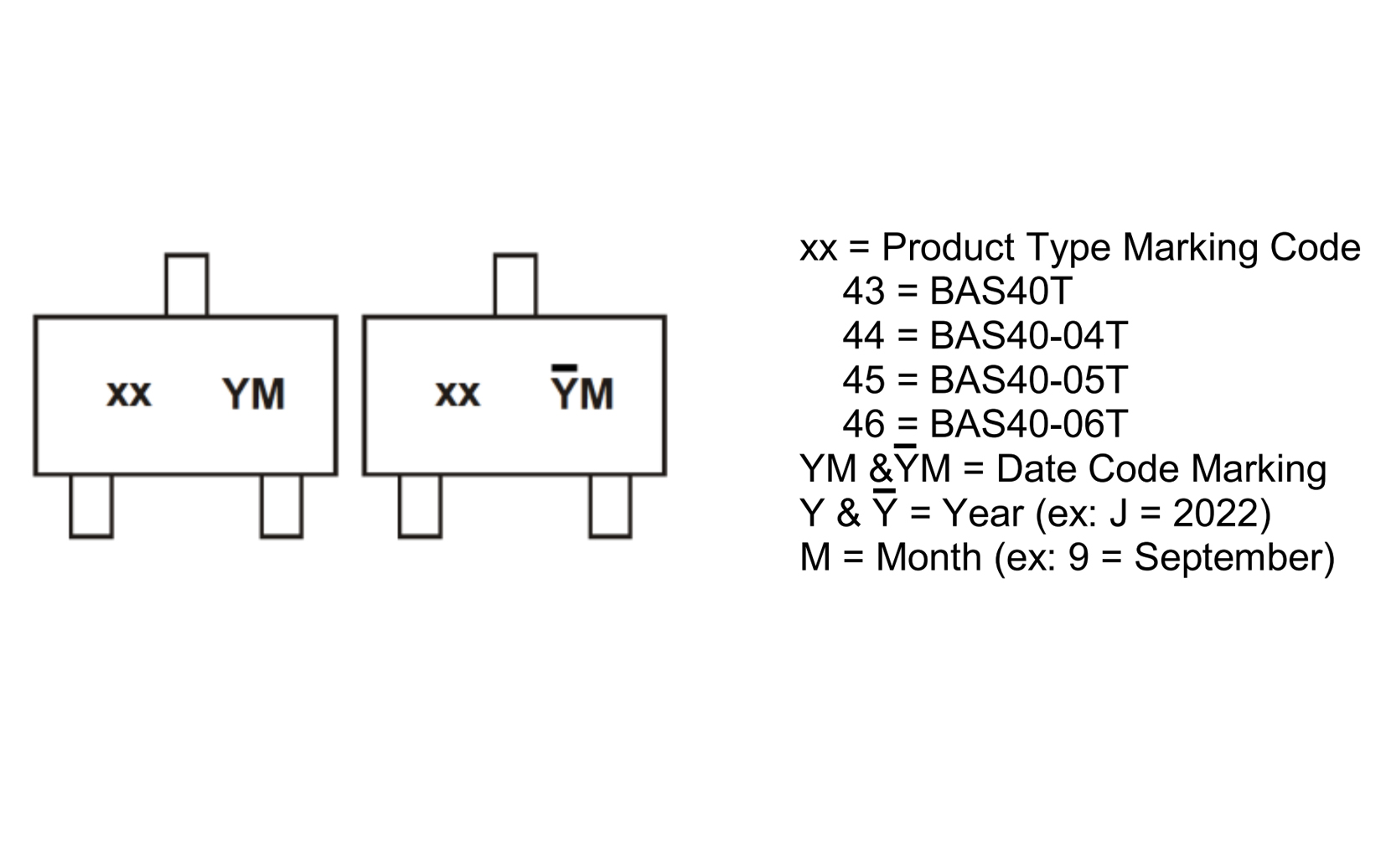

PIN CONFIGUTION
