N-Channel Enhancement Mode MOSFET.
2N7002T
2N7002T.pdf
2N7002T.pdf
No.13520
FEATURES
? Low On-Resistance
? Low Gate Threshold Voltage
? Low Input Capacitance
? Fast Switching Speed
? Low Input/Output Leakage
? Ultra-Small Surface Mount Package
DESCRIPTION
This new generation MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
? DC-DC Converters
? Power Management Functions
? Battery Operated Systems and Solid-State Relays
? Drivers: Relays, Solenoids, Lamps, Hammers, Displays,
Memories, Transistors, etc.

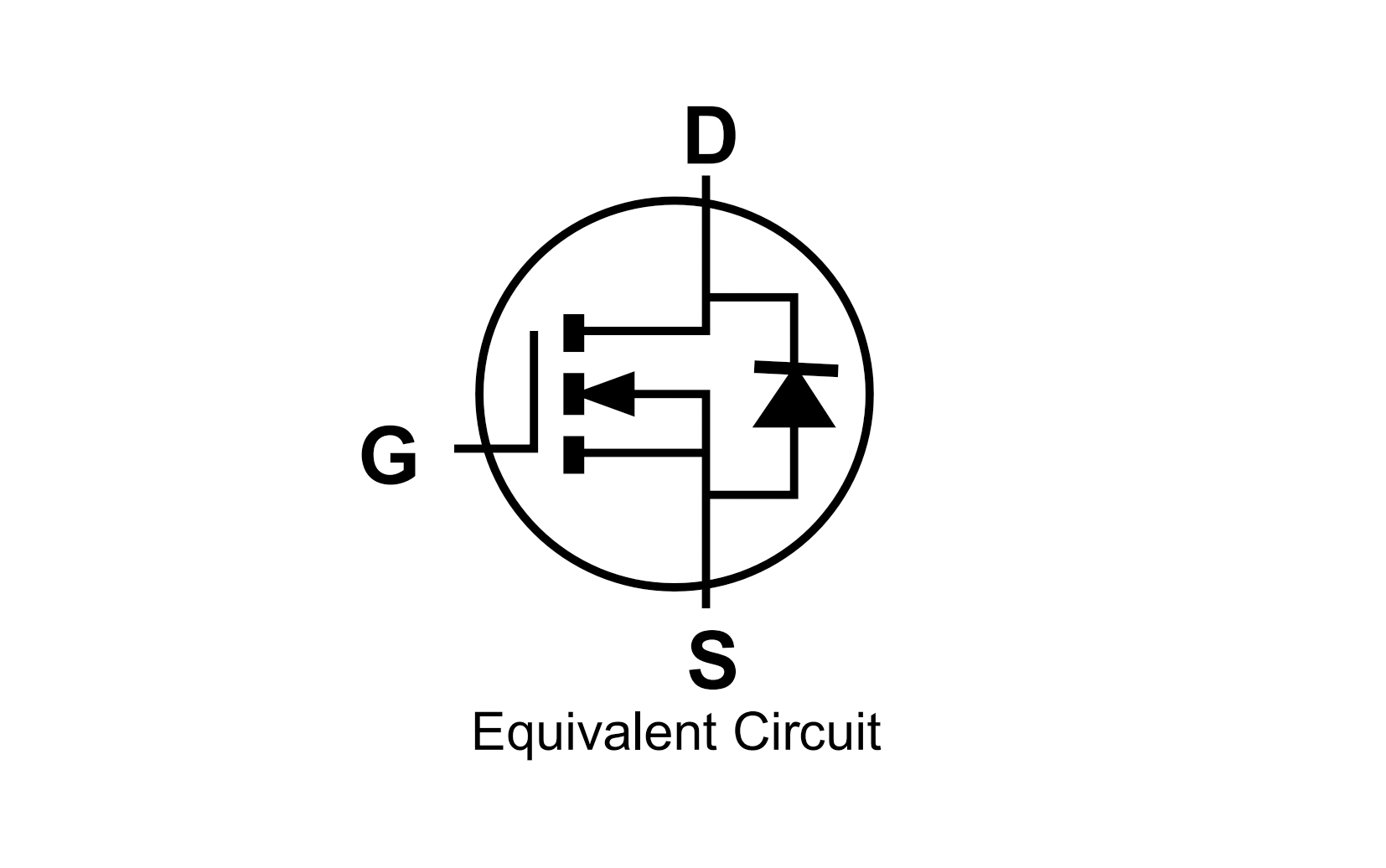

APPLICATION CIRCUIT

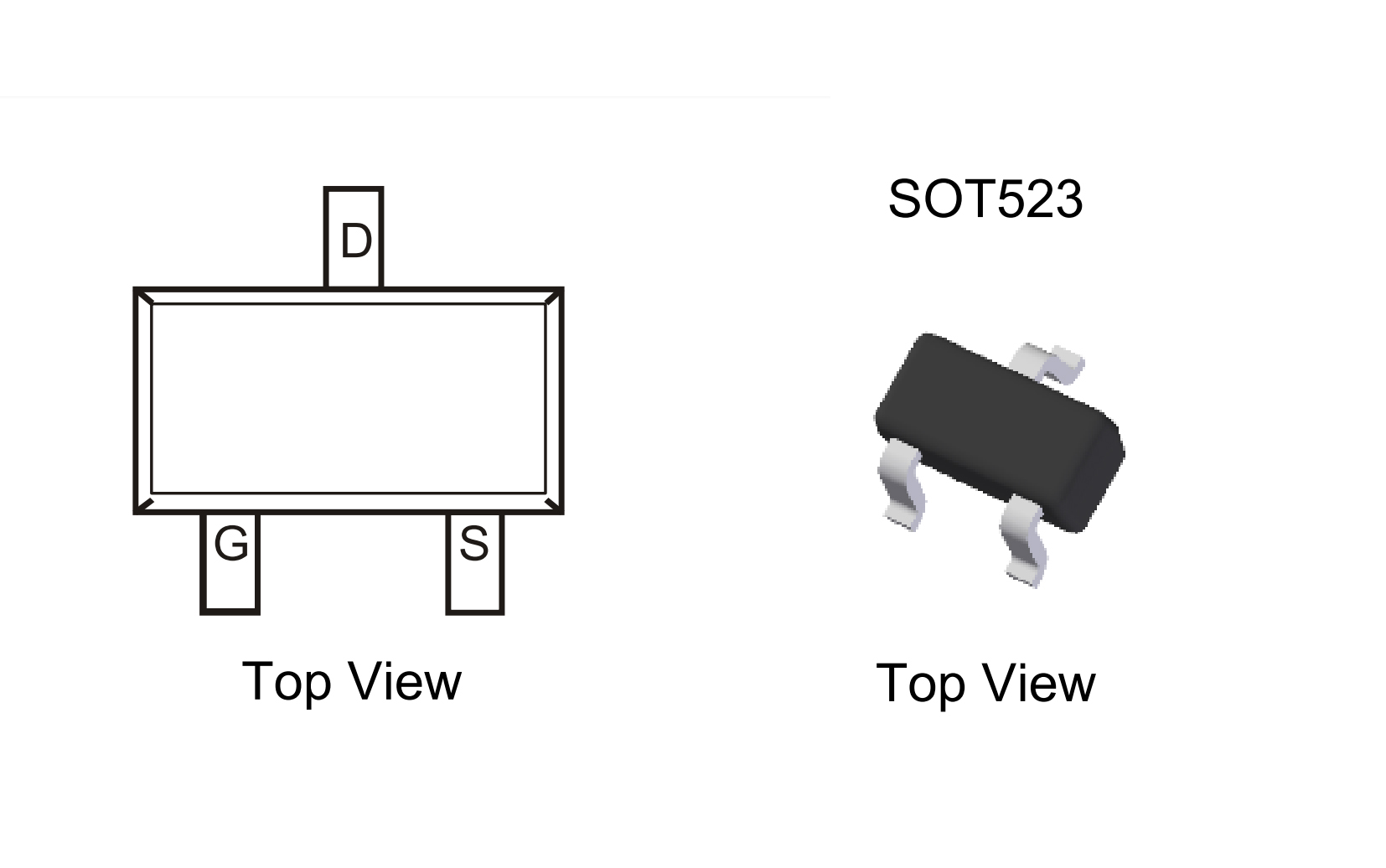

PIN CONFIGUTION
