P-CHANNEL ENHANCEMENT MODE MOSFET.
DMP3098L-7
DMP3098L-7.pdf
DMP3098L-7.pdf
No.13888
FEATURES
? Low On-Resistance
? Low Gate Threshold Voltage
? Low Input Capacitance
? Fast Switching Speed
? Low Input/Output Leakage
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? Qualified to AEC-Q101 Standards for High Reliability
DESCRIPTION
This new generation MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

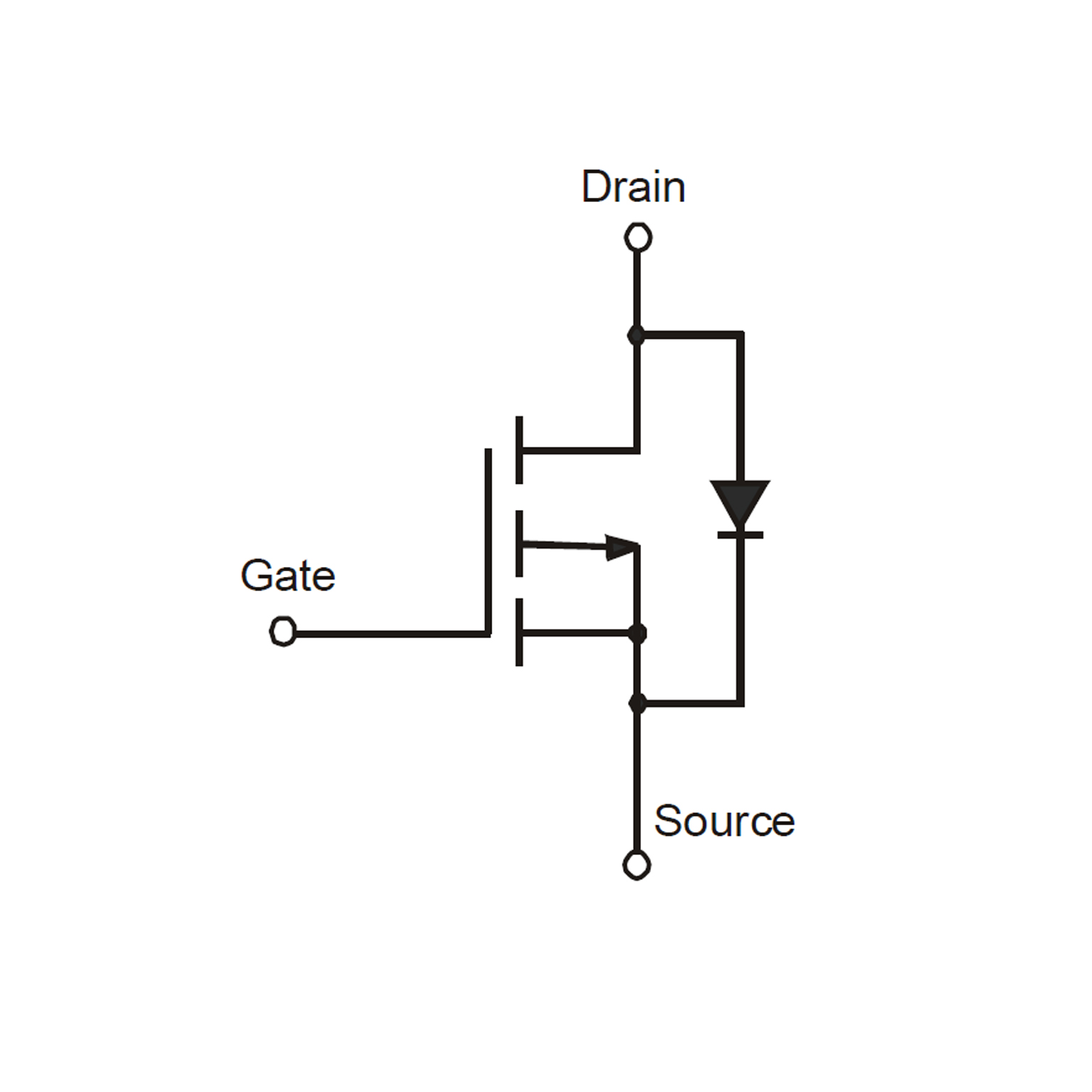

APPLICATION CIRCUIT

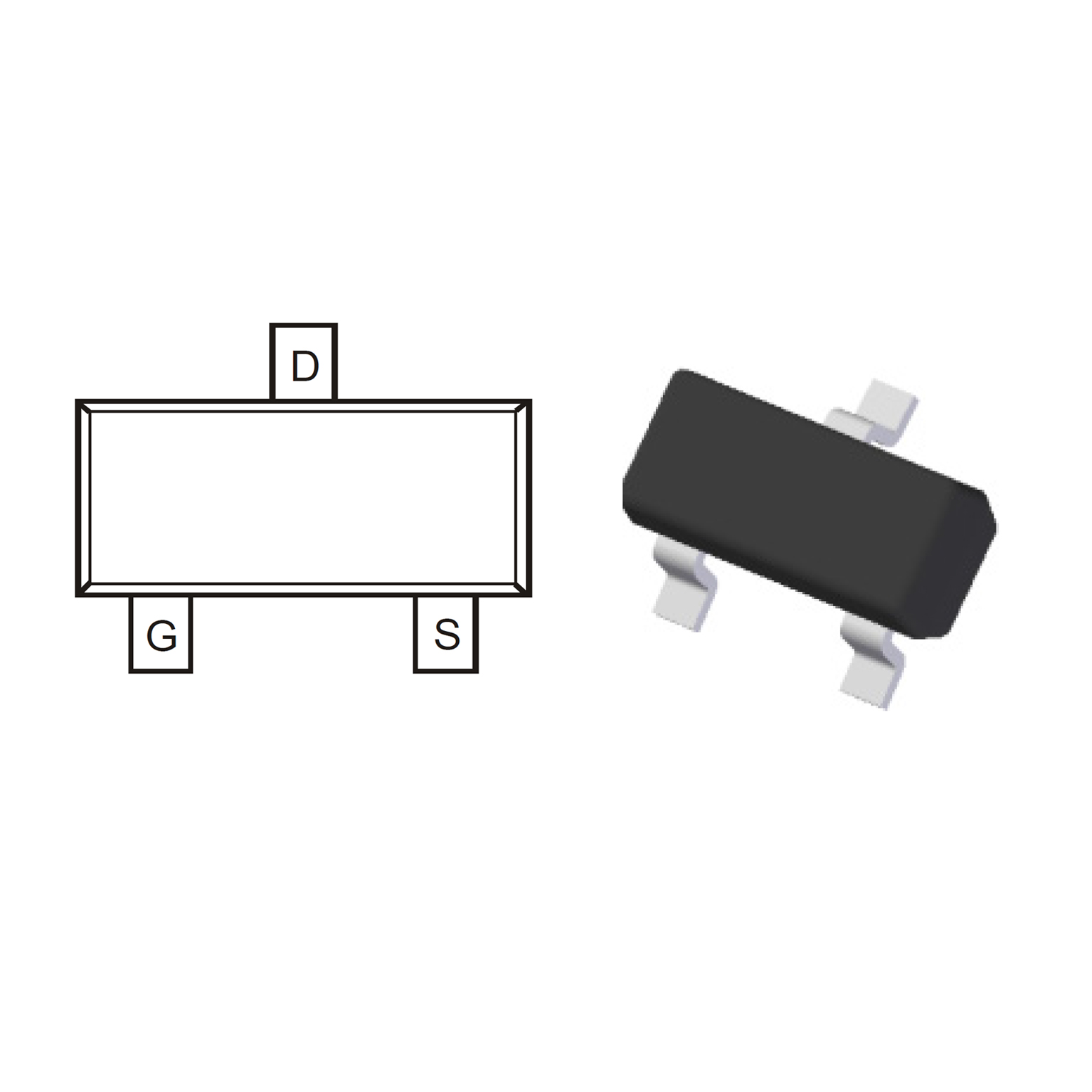

PIN CONFIGUTION
