High-Voltage, High-Current DMOS Arrays, ULN62003 Replace TBD62003.
ULN62003
ULN62003.pdf
ULN62003.pdfFEATURES
? 500mA Rated Drain Current (Single Output)
? High-Voltage Outputs: 50V
? Output Clamp Diodes
? Inputs Compatible with Popular Logic Types
? Relay Driver Applications
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control

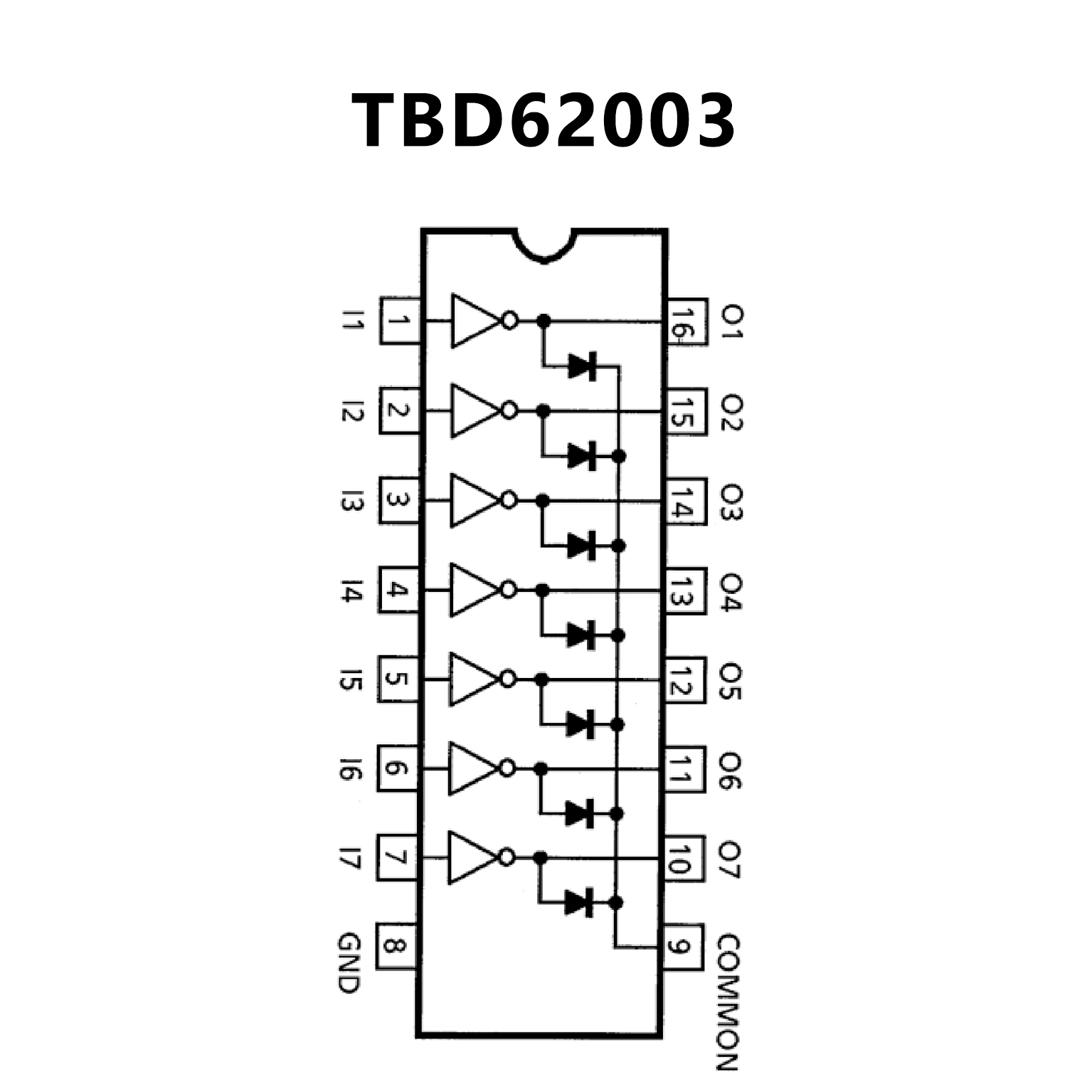

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 7 circuits built-in
? High voltage : VOUT = 50 V (MAX)
? High current : IOUT = 500 mA/ch (MAX)
? Input voltage(output on) :
TBD62003A series 2.5 V (MIN)
TBD62004A series 7.0 V (MIN)
? Input voltage(output off) :
TBD62003A series 0.6 V (MAX)
TBD62004A series 1.0 V (MAX)
? Package
: PG type DIP16-P-300-2.54A
FG type SOP16-P-225-1.27
FNG type SSOP16-P-225-0.65B
FWG type P-SOP16-0410-1.27-002

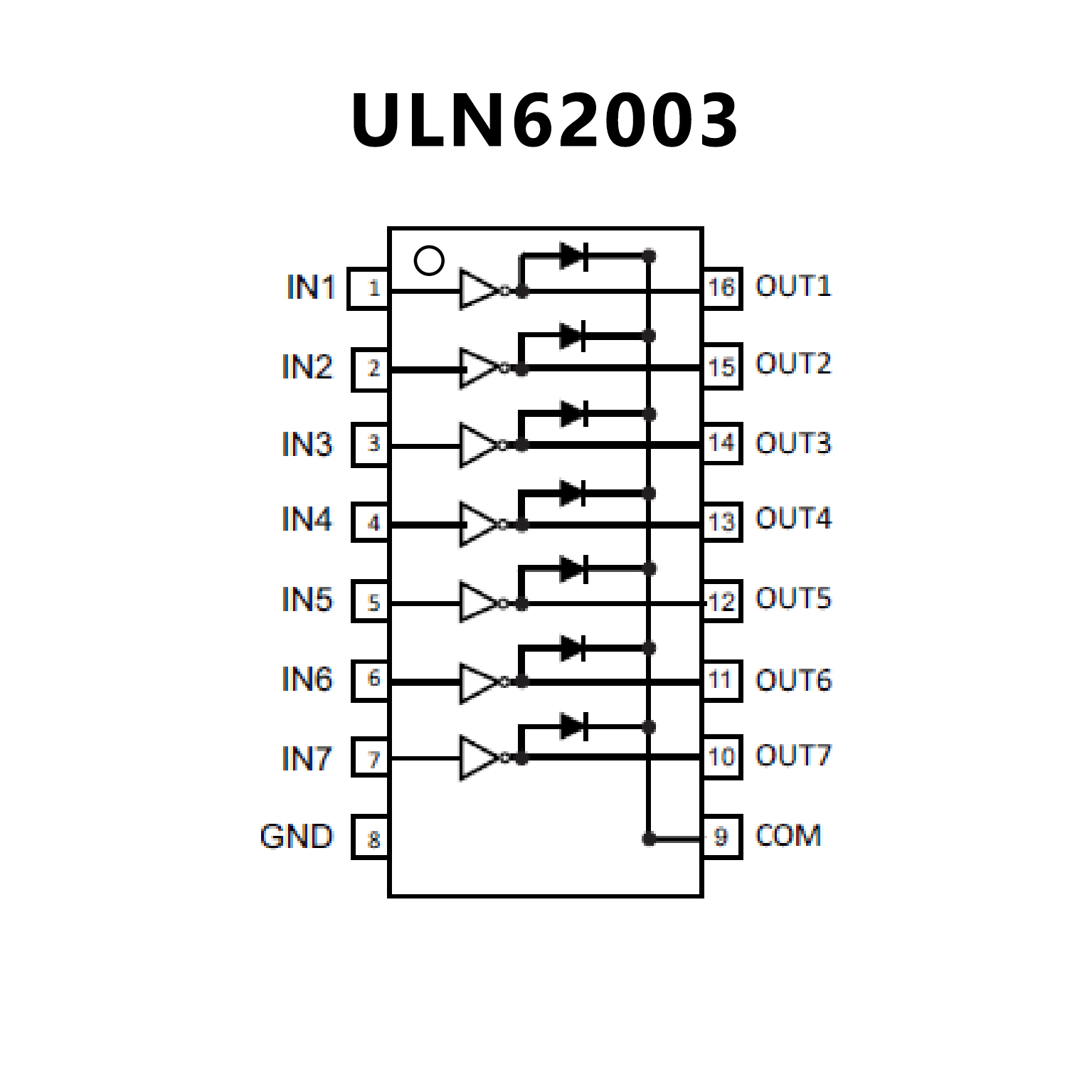

PIN CONFIGUTION
