Automotive Low Side GaN and MOSFET Driver For High Frequency and Narrow Pulse Applications, TMIS31025 P2P LMG1025.
TMIS31025.pdf優勢替代
FEATURES
? AEC-Q100 grade 1 qualified
? 1.25-ns typical minimum input pulse width
? 2.6-ns typical rising propagation delay
? 2.9-ns typical falling propagation delay
? 300-ps typical pulse distortion
? Independent 7-A pull-up and 5-A pull-down current
? 650-ps typical rise time (220-pF load)
? 850-ps typical fall time (220-pF load)
? 2-mm x 2-mm QFN package
? Inverting and non-inverting inputs
? UVLO and over-temperature protection
? Single 5-V supply voltage

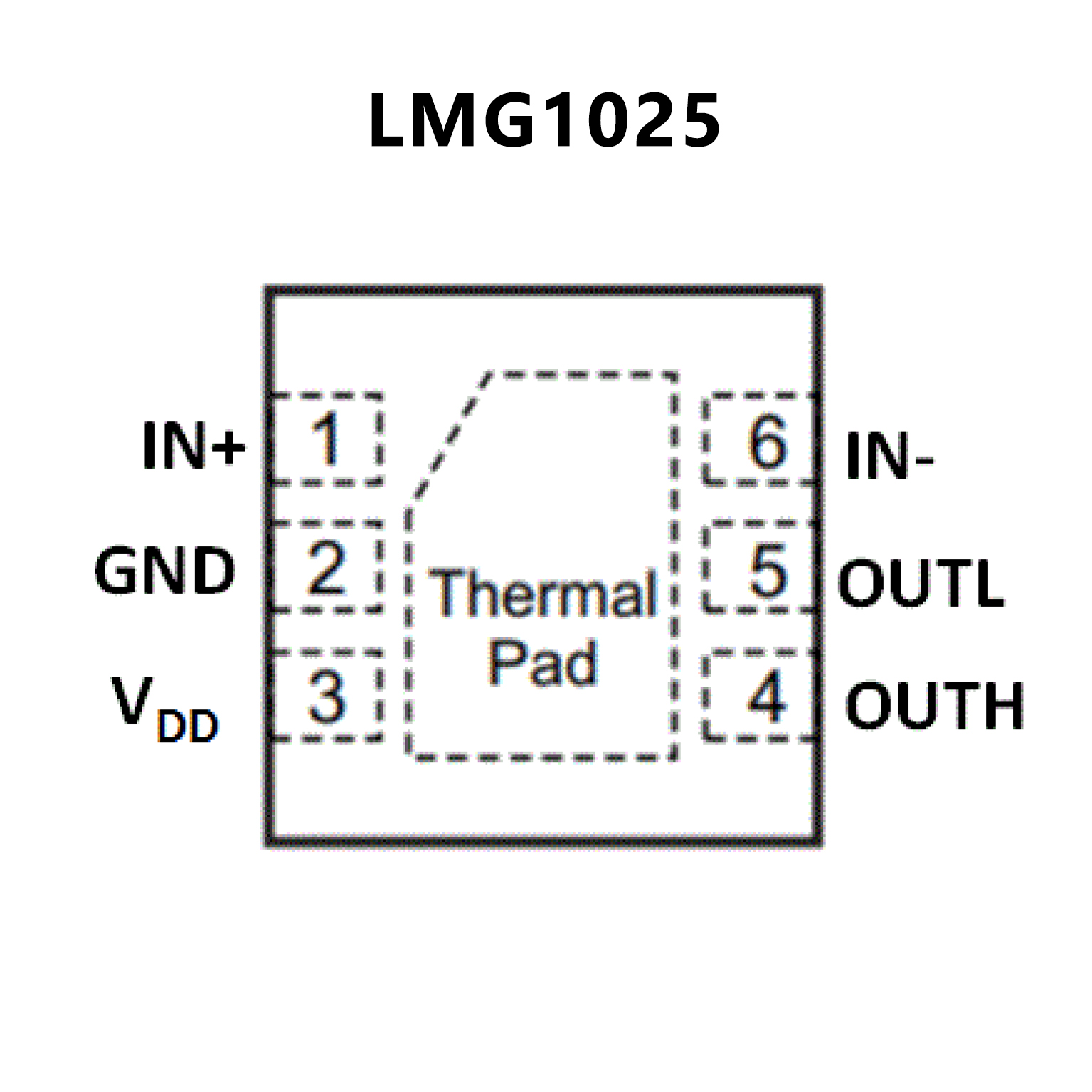

PIN CONFIGUTION
