Precision Power Distribution Switch, TMI6263AL Replace TPS2041CDBVR.
TMI6263AL
TMI6263AL.pdf
TMI6263AL.pdfFEATURES
? Integrated 60mΩ Power MOSFET
? 1μA Typical at Switch Off State
? Wide Input Voltage Range: 2.5V to 5.5V
? Fast Transient Response: 15μs
? 0.1ms Typical Rise Time
? Reverse Current Flow Blocking
? Automatic output discharge at shutdown
? Deglitched Open-Drain Over-Current Flag
Output (TMI6263AH, TMI6263AL)
? Thermal Shutdown Protection
? Hot Plug-In Application (Soft-Start)
? Two Enable polarities and four current levels
TMI6263AH: 2.0A/Enable High
TMI6263AL: 2.0A/Enable Low
TMI6263CH: 1.5A/Enable High
TMI6263BH: ADJ /Enable High
? CB Test Certification by IEC62368-1:2014
? UL 2367 Certification - E528420
? SOT-23-5 package

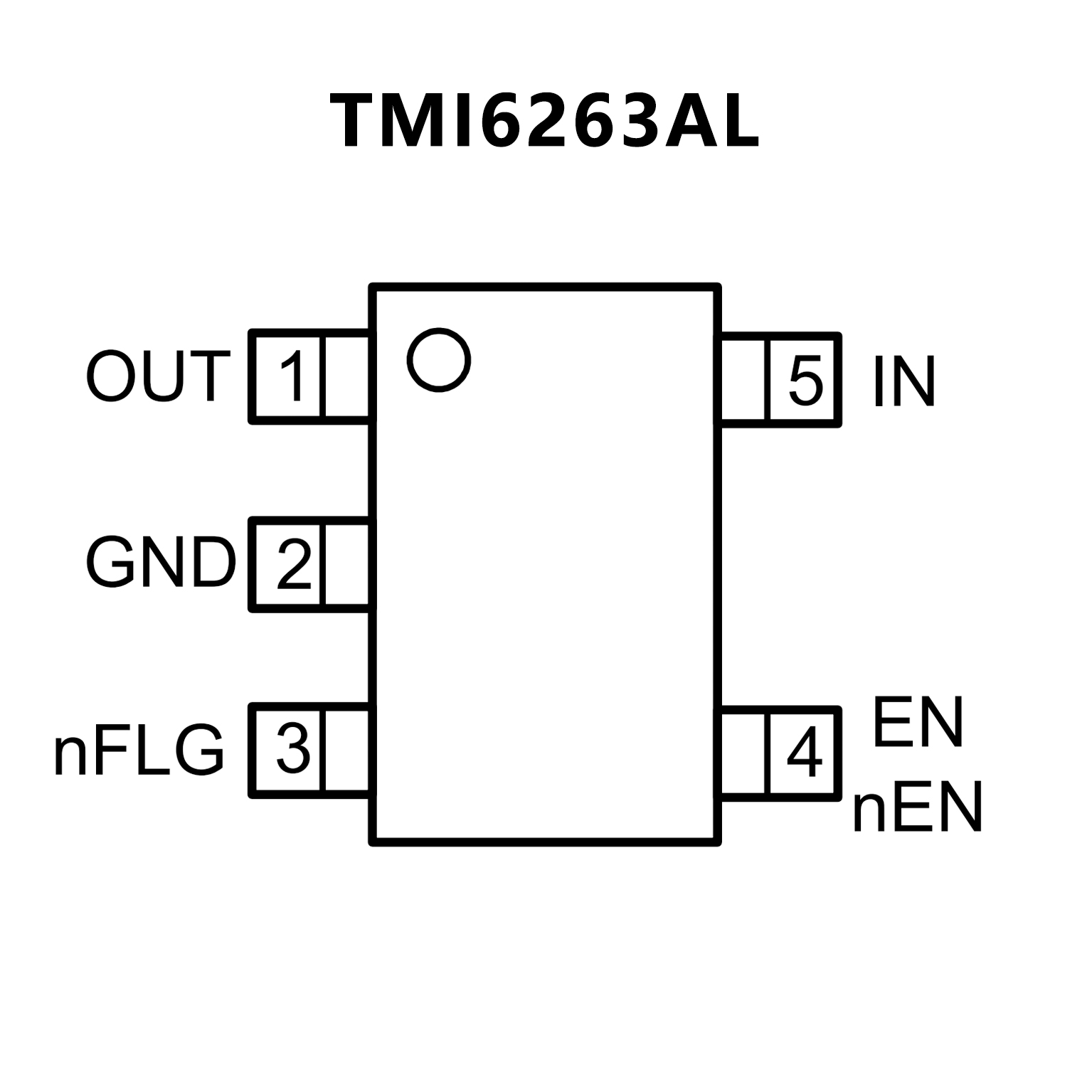

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Single Power Switch Family
? Pin-for-Pin With Existing TI Switch Portfolio
? Rated Currents of 0.5 A, 1 A, 1.5 A, 2 A
? ±20% Accurate, Fixed, Constant Current Limit
? Fast Overcurrent Response: 2 μs
? Deglitched Fault Reporting
? Selected Parts With (TPS20xxC) and Without
(TPS20xxC-2) Output Discharge
? Reverse Current Blocking
? Built-In Soft Start
? Ambient Temperature Range: –40°C to 85°C
? UL Listed and CB-File No. E169910

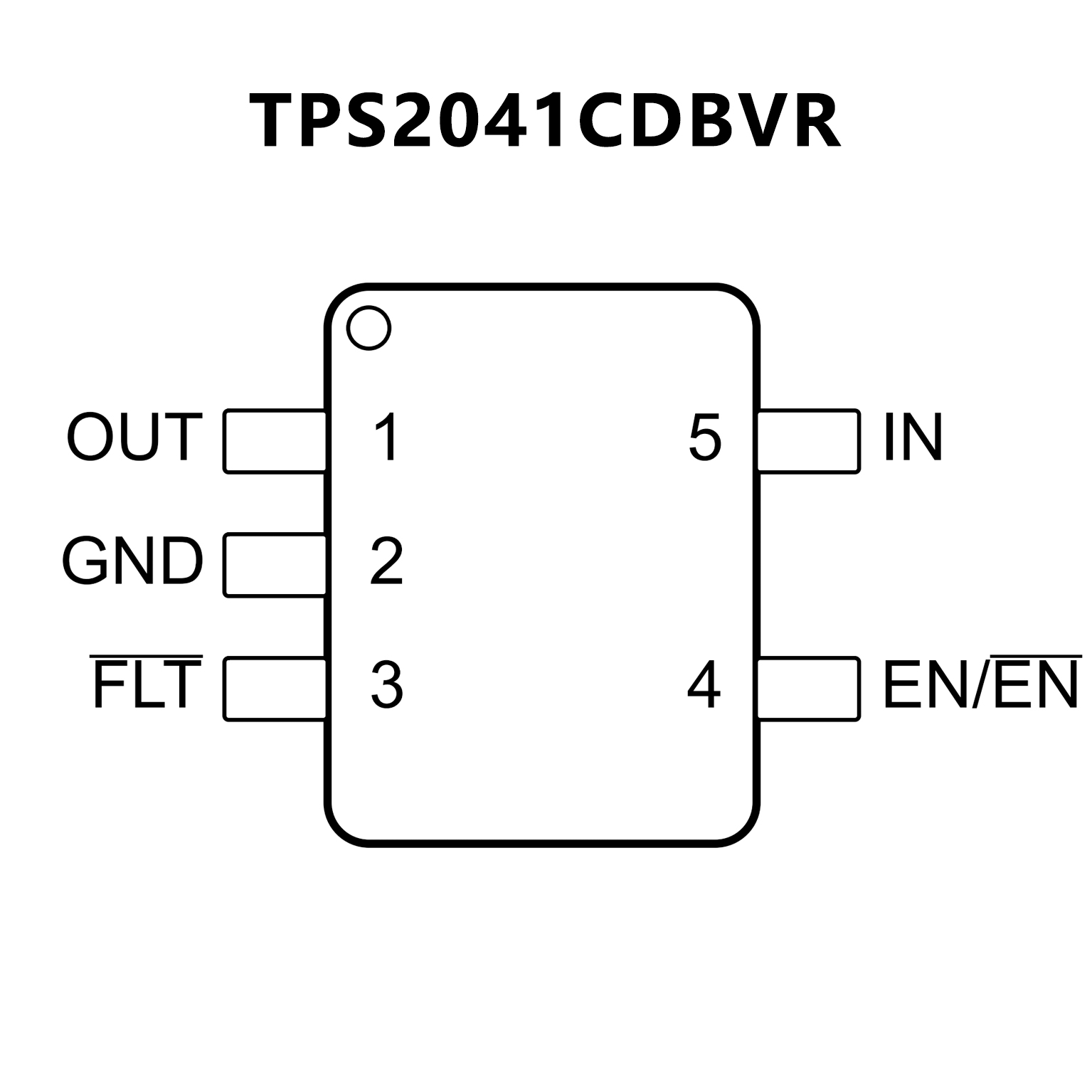

PIN CONFIGUTION
