Precision Adjustable Power Distribution Switch, TMI6260D P2P TPS2553DRVR.
TMI6260D
TMI6260D.pdf
TMI6260D.pdfFEATURES
? Integrated 60mΩ Power MOSFET
? Adjustable Current Limit 0.3A to 2.5A (typ.)
? Low Supply Current
? 30μA Typical at Switch On State
? 1μA Typical at Switch Off State
? Wide Input Voltage Range: 2.5V to 5.5V
? Fast Transient Response: 8μs
? 0.1ms Typical Rise Time
? Reverse Current Flow Blocking
? Deglitched Open-Drain Over-Current Flag
Output (TMI6260C and TMI6260D)
? Thermal Shutdown Protection
? Hot Plug-In Application (Soft-Start)
? UL 2367 Certification - E528420
? SOT-23-5/SOT-23-6/DFN2x2-6L Package

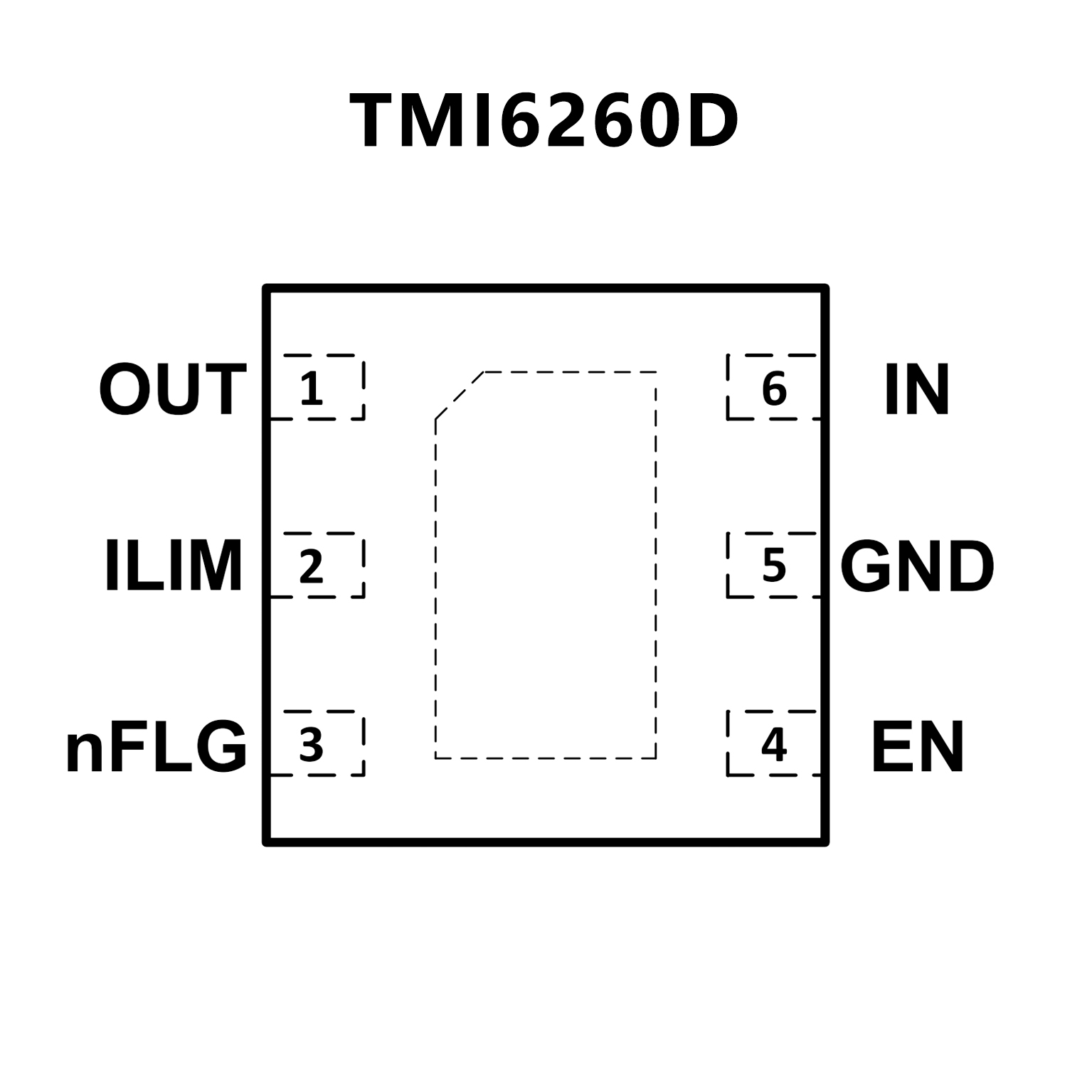

PIN CONFIGUTION
優勢替代
FEATURES
? Up to 1.5-A Maximum Load Current
? ±6% Current-Limit Accuracy at 1.7 A (Typical)
? Meets USB Current-Limiting Requirements
? Backwards Compatible With TPS2550 and
TPS2551
? Adjustable Current Limit: 75 mA to 1700 mA
(Typical)
? Constant-Current (TPS255x) and Latch-Off
(TPS255x-1) Versions
? Fast Overcurrent Response - 2 μs (Typical)
? 85-mΩ High-Side MOSFET (DBV Package)
? Reverse Input-Output Voltage Protection
? Operating Range: 2.5 V to 6.5 V
? Built-In Soft Start
? 15-kV ESD Protection per IEC 61000-4-2 (With
External Capacitance)
? UL Listed – File No. E169910 and NEMKO
IEC60950-1-am1 ed2.0
? See the TI Switch Portfolio

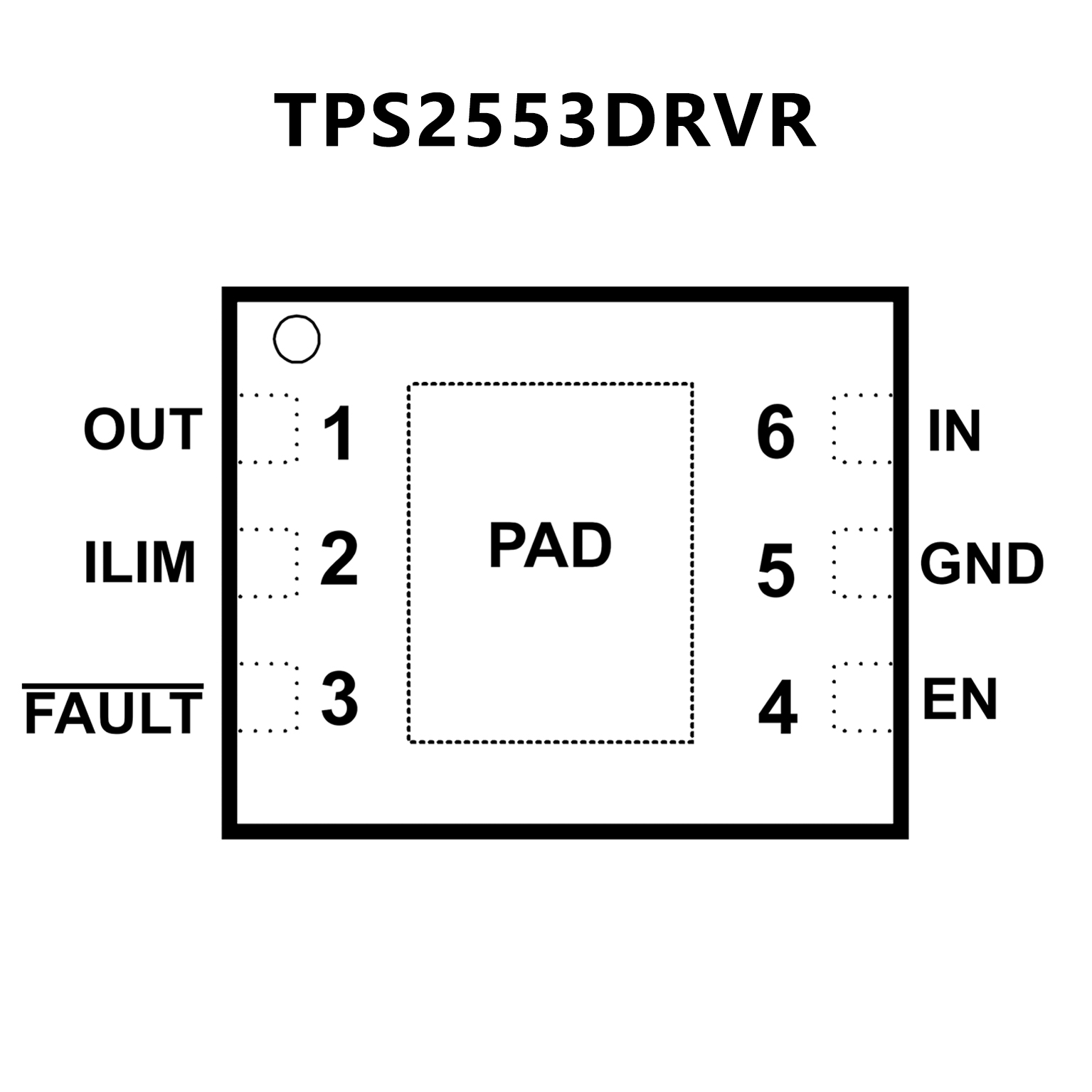

PIN CONFIGUTION
