500-mA, High-Accuracy, Adjustable LDO in a Small Size Package, TMI6056 Replace TLV758P.
TMI6056/D.pdf優勢替代
FEATURES
? Input voltage range: 1.5 V to 6.0 V
? Adjustable output voltage:
– 0.55 V to 5.5 V
? Low dropout:
– 130 mV (max) at 500 mA (3.3 VOUT)
? High output accuracy: 0.7% (typical) and 1%
(maximum over temperature)
? IQ: 25 μA (typical)
? Built-in soft-start with monotonic VOUT rise
? Packages:
– 2-mm × 2-mm WSON-6 (DRV)
– SOT23-5 (DBV)
? Active output discharge

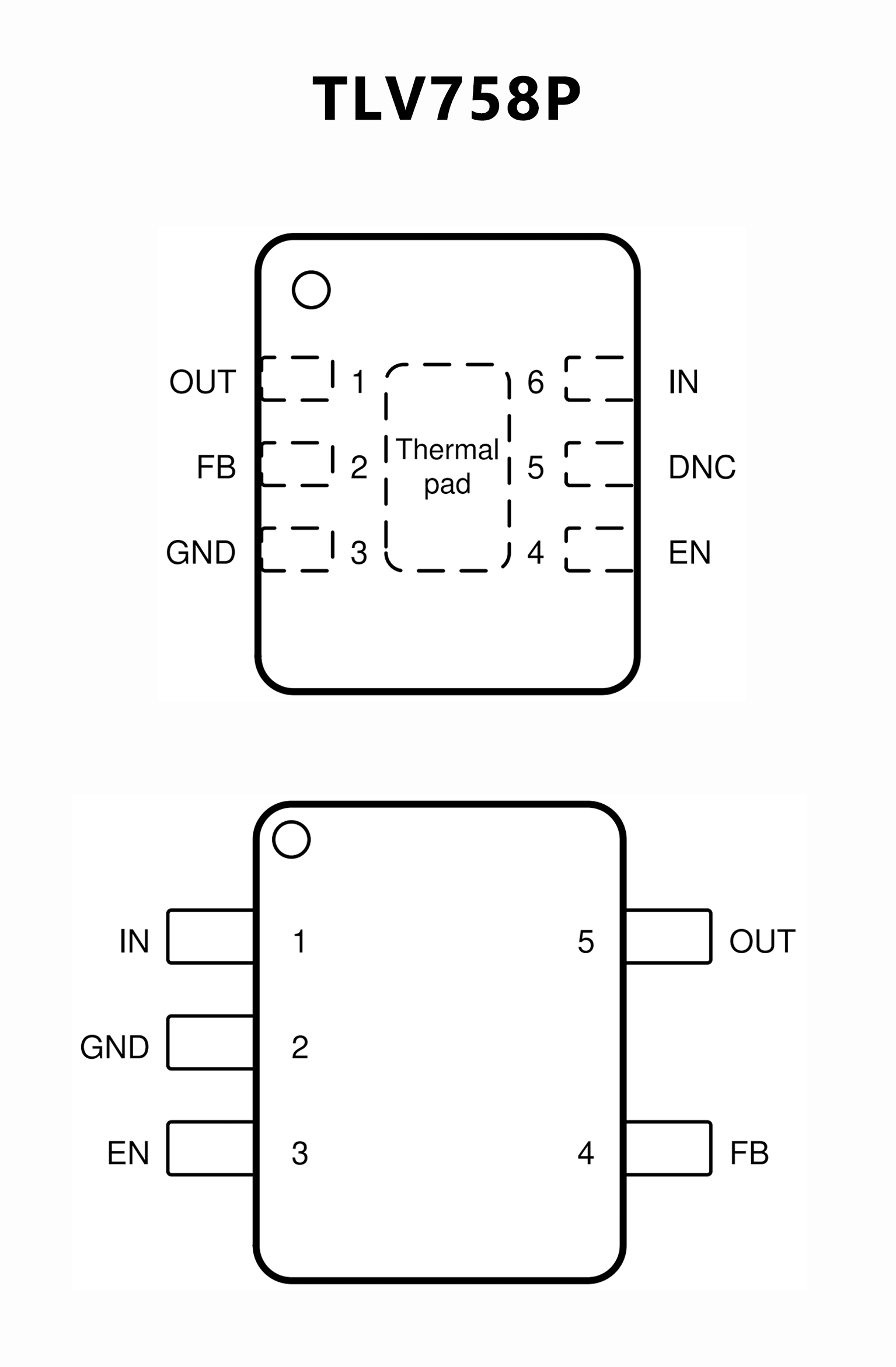

PIN CONFIGUTION
