1.5μA Low Iq, 300mA Low Noise LDO Regulator, TMI6038 Replace TPS79333.
TMI6038
TMI6038.pdf
TMI6038.pdfFEATURES
? 1.5μA Quiescent Current Typically
? 70dB PSRR at 1kHz
? Up to 300mA Output Current
? Low Shutdown Current: <0.1μA
? Output Voltage Accuracy: ±2%
? Output Current Limit Protection
? Fixed Output Voltage 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
? Stable with Ceramic Output Capacitors
? Thermal Shutdown
? Output Auto-Discharge in EN Shutdoun
? Available in SOT23-5 Package

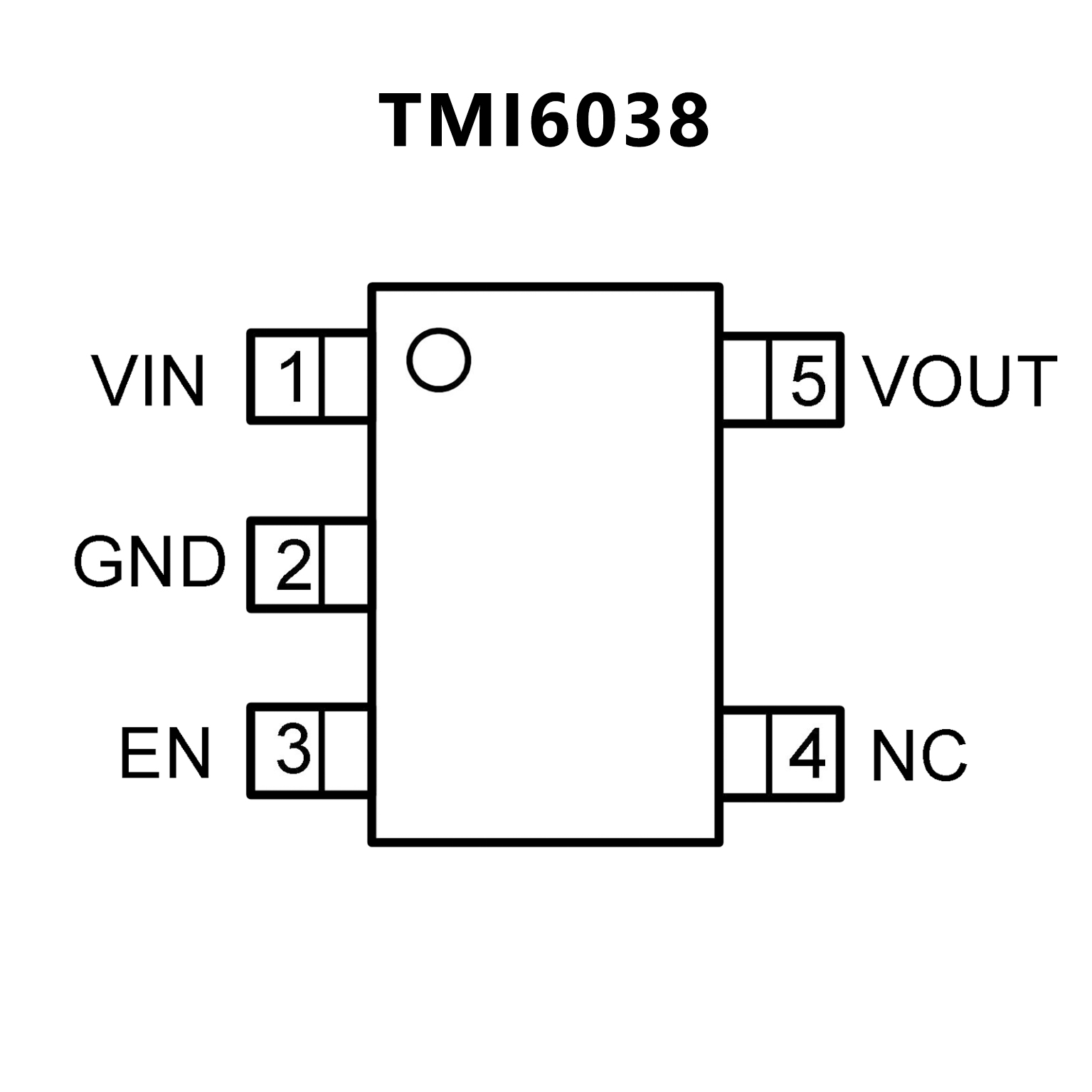

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 200-mA RF Low-Dropout Regulator With Enable
? Available in Fixed-Voltage Versions from 1.8 V to
4.75 V and Adjustable (1.22 V to 5.5 V)
? High PSRR (70 dB at 10 kHz)
? Low Noise (32 μVRMS, TPS79328)
? Fast Start-Up Time (50 μs)
? Stable With a 2.2-μF Ceramic Capacitor
? Excellent Load and Line Transient Response
? Very Low Dropout Voltage (112 mV at 200 mA,
TPS79330)
? 5- and 6-Pin SOT23 (DBV) and NanoStar Wafer
Chip Scale (YZQ) Packages
PIN CONFIGUTION
