1.5μA Low Iq, 300mA Low Noise LDO Regulator, TMI6038 Replace TLV702XX.
TMI6038
TMI6038.pdf
TMI6038.pdfFEATURES
? 1.5μA Quiescent Current Typically
? 70dB PSRR at 1kHz
? Up to 300mA Output Current
? Low Shutdown Current: <0.1μA
? Output Voltage Accuracy: ±2%
? Output Current Limit Protection
? Fixed Output Voltage 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
? Stable with Ceramic Output Capacitors
? Thermal Shutdown
? Output Auto-Discharge in EN Shutdoun
? Available in SOT23-5 Package

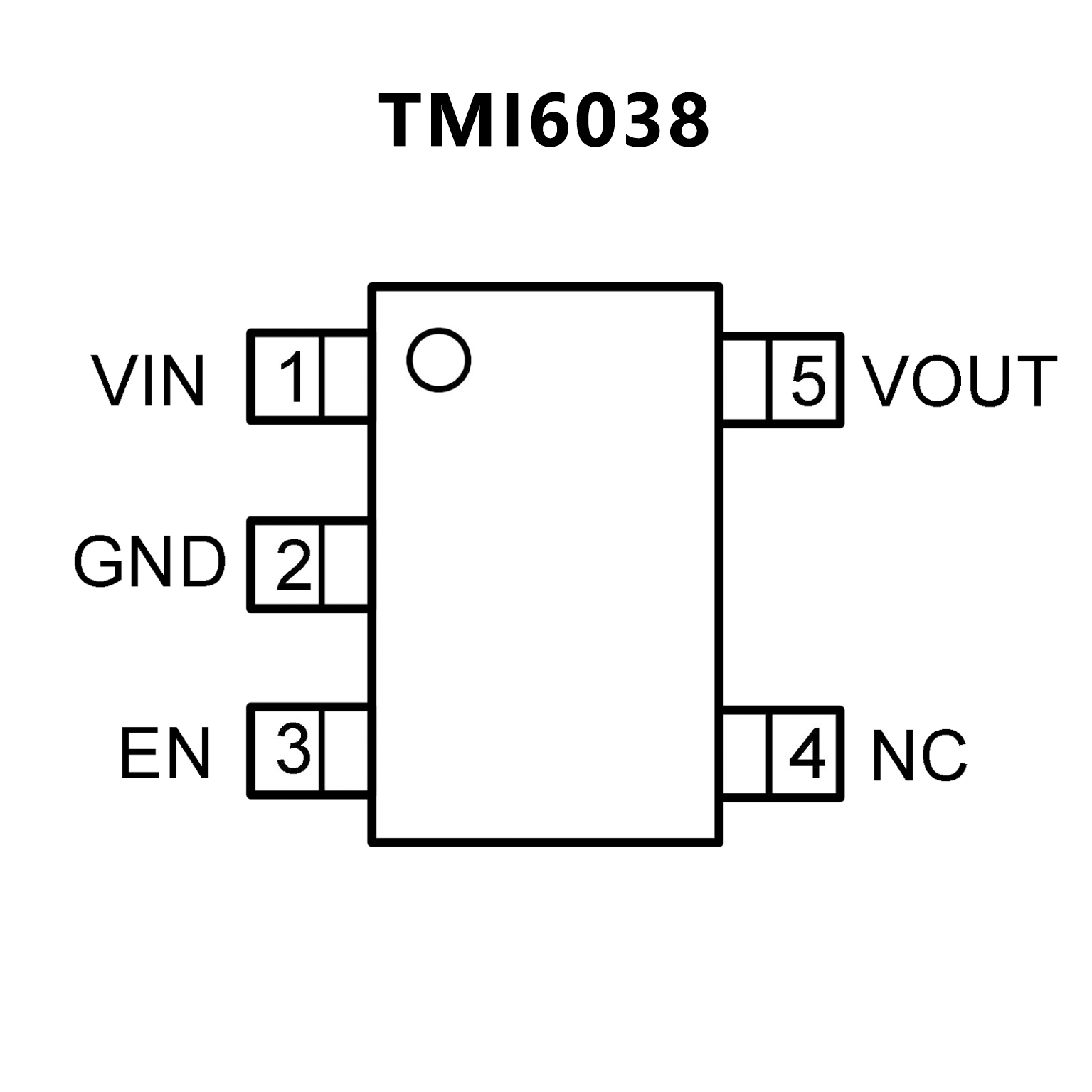

PIN CONFIGUTION
優勢替代
FEATURES
? Very Low Dropout:
– 37 mV at IOUT = 50 mA, VOUT = 2.8 V
– 75 mV at IOUT = 100 mA, VOUT = 2.8 V
– 220mV at IOUT = 300 mA, VOUT = 2.8 V
? 2% Accuracy
? Low IQ: 35 μA
? Fixed-Output Voltage Combinations Possible from
1.2 V to 4.8 V
? High PSRR: 68 dB at 1 kHz
? Stable With Effective Capacitance of 0.1 μF (1)
? Thermal Shutdown and Overcurrent Protection
? Packages: 5-Pin SOT-23 and 1.5-mm × 1.5-mm,
6-Pin WSON

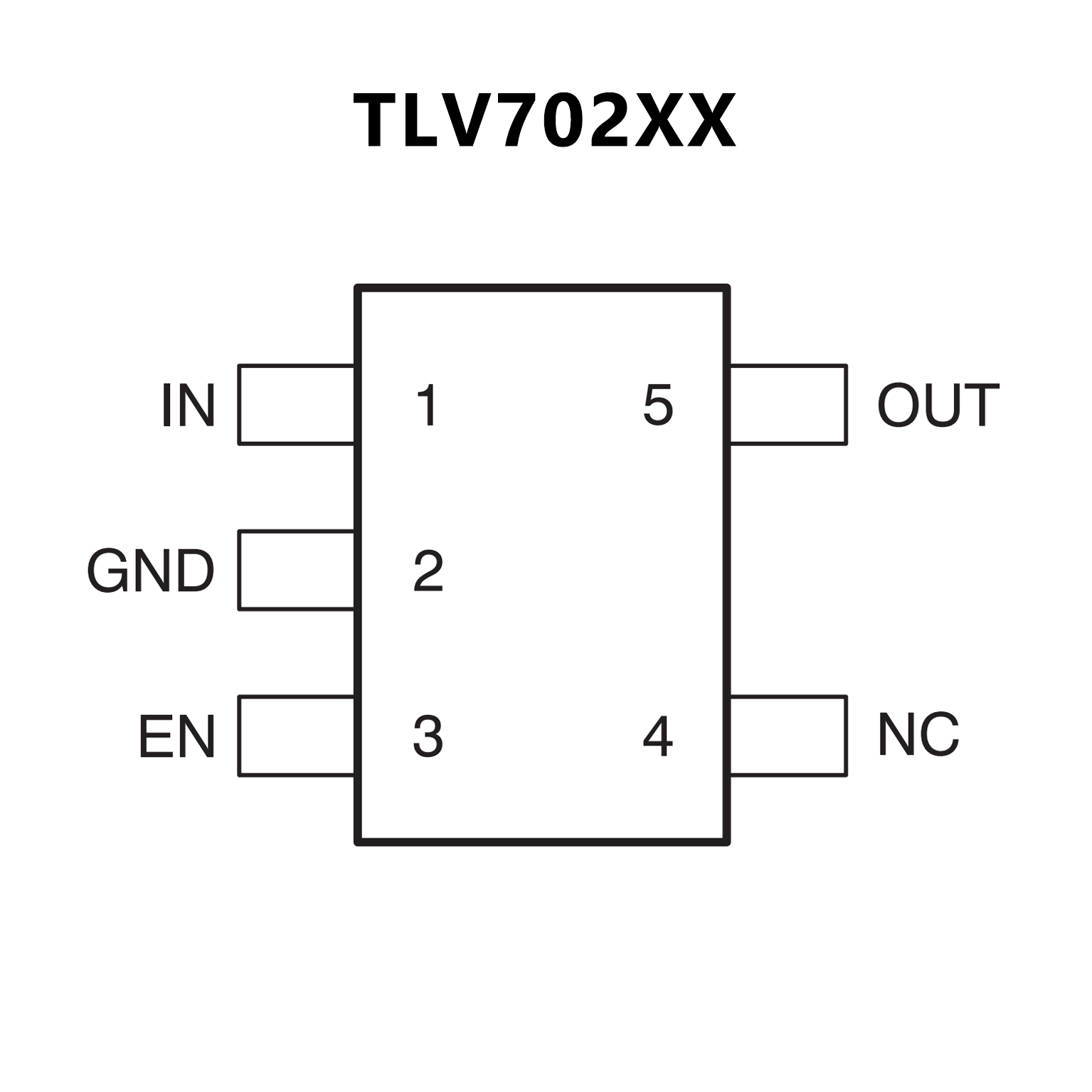

PIN CONFIGUTION
