300mA, Low IQ, High PSRR LDO Regulators, TMI6030 Replace TPS79901.
TMI6030系列
TMI6030系列.pdf
TMI6030系列.pdfFEATURES
? 2.5V to 5.5V Input Voltage Range
? 320mV @300mA typical Dropout Voltage
? Excellent Transient Response
? Stable with 1μF Ceramic Output Capacitor
? 70dB PSRR at 1kHz
? Low Quiescent Current: 50μA typical.
? Low Shutdown Current: <1μA
? Output Accuracy: ±2%
? Fixed Output Voltage: 1.2V~3.3V
? Current Limit Protection
? Thermal Shutdown
? Output Auto-Discharge in Shutdown
? RoHS Compliant and 100% Lead (Pb)- Free, Halogen-Free

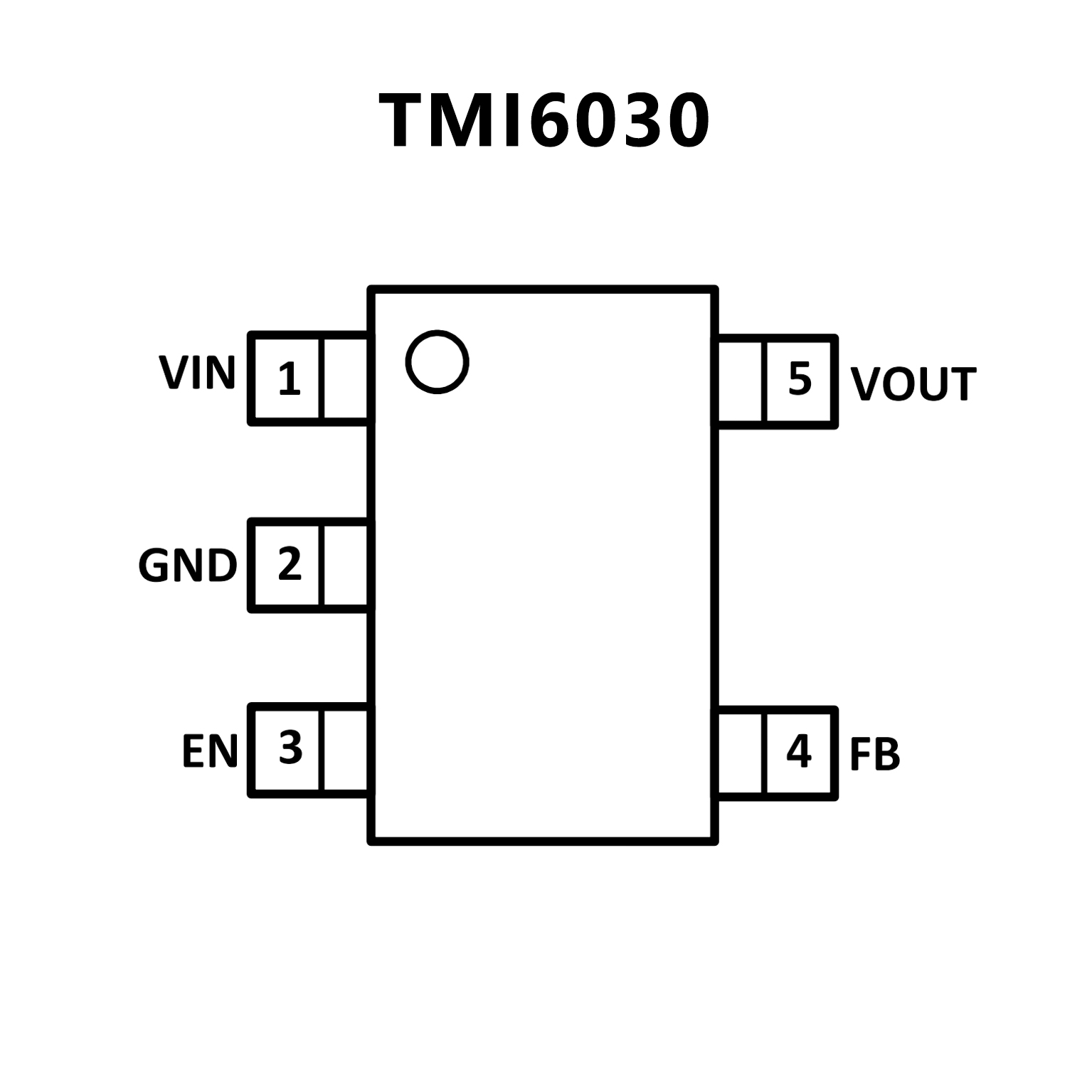

PIN CONFIGUTION
優勢替代
FEATURES
? 200mA Low Dropout Regulator with EN
? Low IQ: 40mA
? Multiple Output Voltage Versions Available:
– Fixed Outputs of 1.2V to 4.5V Using
Innovative Factory EEPROM Programming
– Adjustable Outputs from 1.20V to 6.5V
? High PSRR: 66dB at 1kHz
? Ultra-low Noise: 29.5mVRMS
? Fast Start-Up Time: 45ms
? Stable with a Low-ESR, 2.0mF Typical Output Capacitance
? Excellent Load/Line Transient Response
? 2% Overall Accuracy (Load/Line/Temp)
? Very Low Dropout: 100mV
? ThinSOT-23, WCSP, and 2mm × 2mm SON-6 Packages

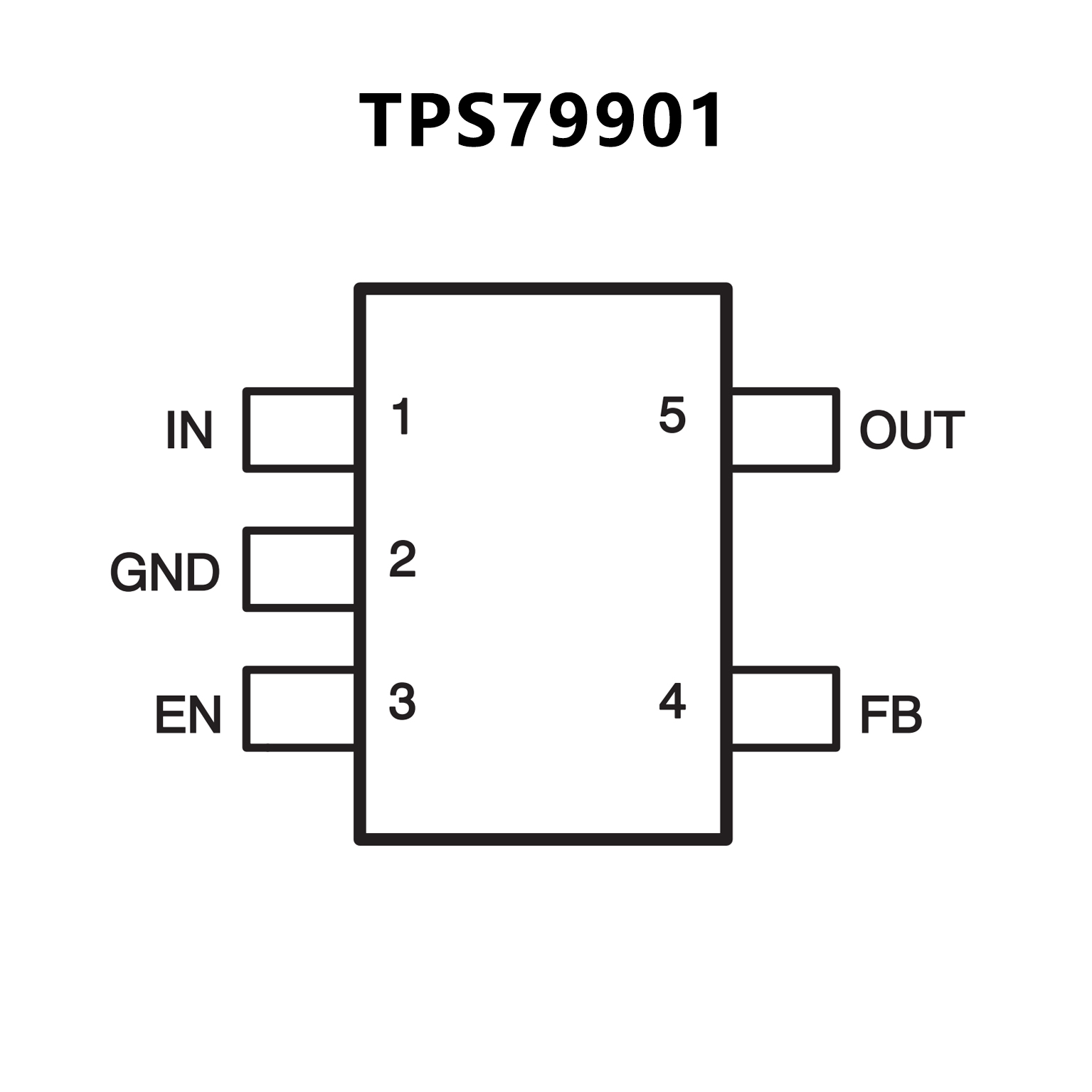

PIN CONFIGUTION
