300mA, Low IQ, High PSRR LDO Regulators, TMI6030 Replace TLV700XX.
TMI6030系列
TMI6030系列.pdf
TMI6030系列.pdfFEATURES
? 2.5V to 5.5V Input Voltage Range
? 320mV @300mA typical Dropout Voltage
? Excellent Transient Response
? Stable with 1μF Ceramic Output Capacitor
? 70dB PSRR at 1kHz
? Low Quiescent Current: 50μA typical.
? Low Shutdown Current: <1μA
? Output Accuracy: ±2%
? Fixed Output Voltage: 1.2V~3.3V
? Current Limit Protection
? Thermal Shutdown
? Output Auto-Discharge in Shutdown
? RoHS Compliant and 100% Lead (Pb)- Free, Halogen-Free
PIN CONFIGUTION
優勢替代
FEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to 125°C
Ambient Operating Temperature Range
– Device HBM ESD Classification Level H2
– Device CDM ESD Classification Level C3B
? 2% Accuracy
? Low IQ: 35 μA
? Fixed-Output Voltages: 1.2 V and 1.8 V
? High PSRR: 68 dB at 1 kHz
? Stable With Effective Capacitance of 0.1 μF

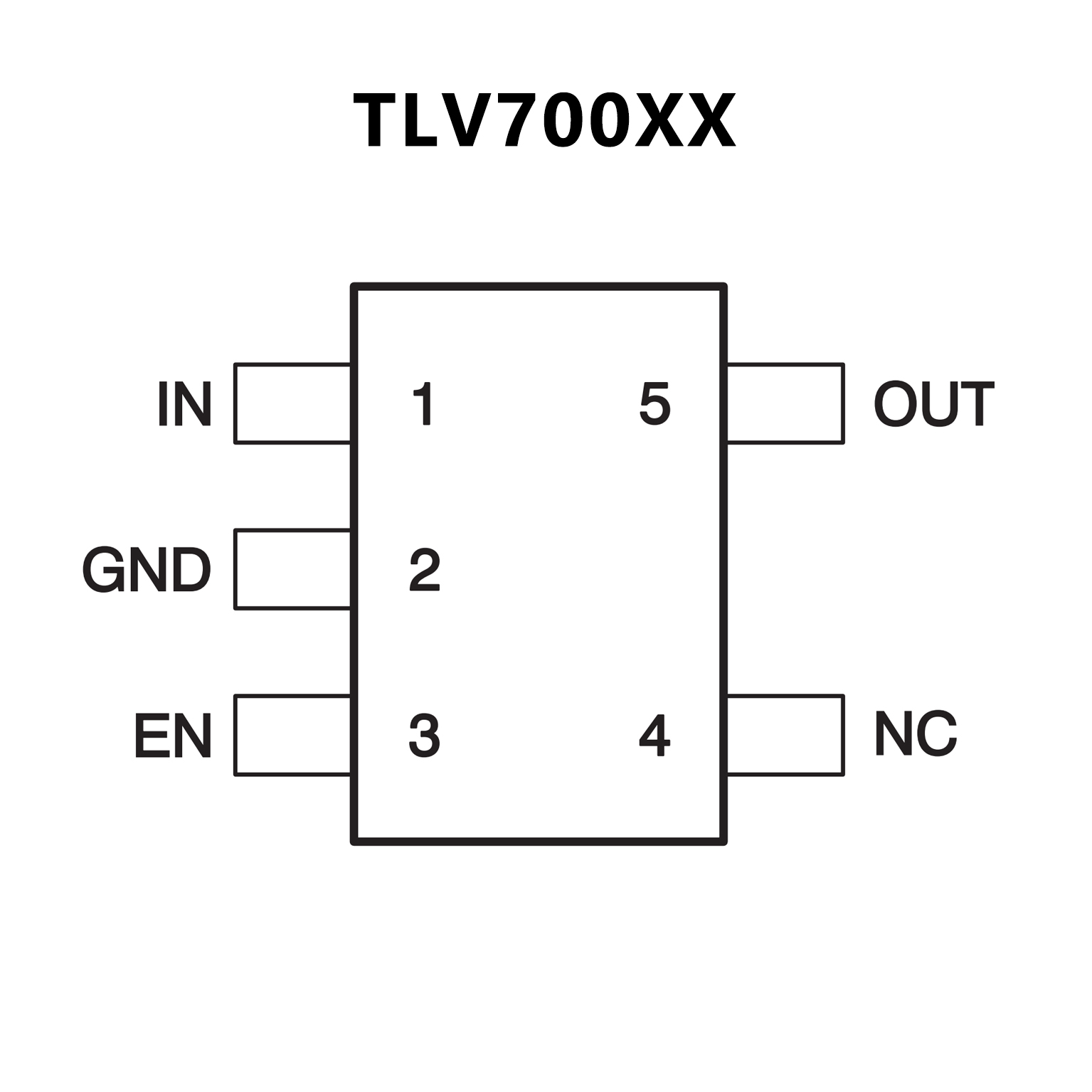

PIN CONFIGUTION
