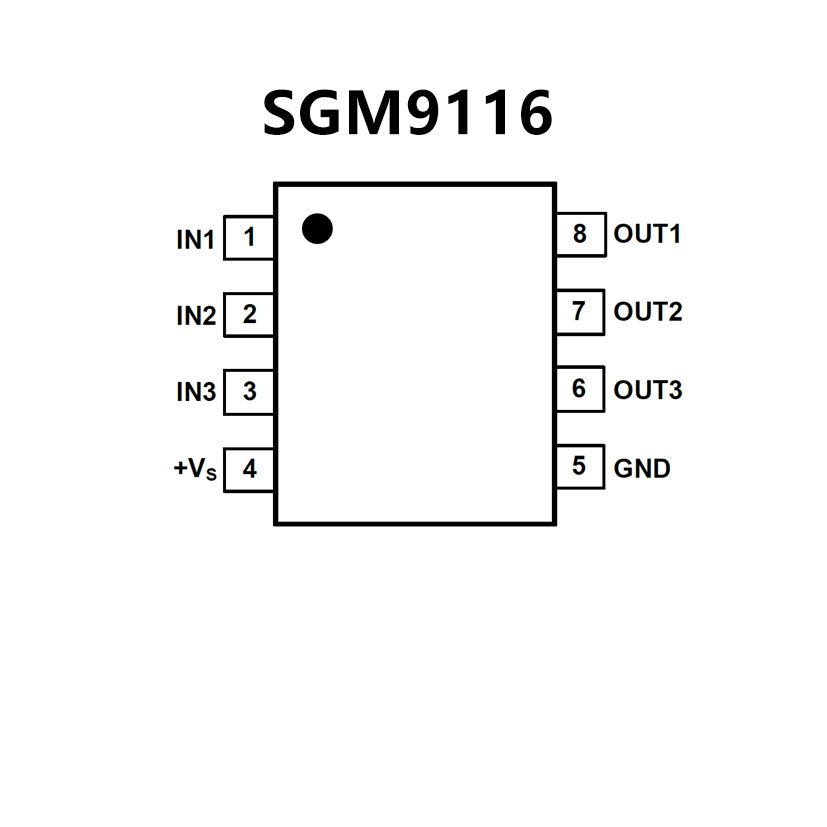

SGM9116.pdf? Triple 6th-Order 38.5MHz (HD) Filters
? Transparent Input Clamping
? 6dB Output Driver Gain and Drive
Dual Video Loads
? Rail-to-Rail Output
? Input Voltage Range Includes Ground
? AC- or DC-Coupled Inputs
? AC- or DC-Coupled Outputs
? Operates from 3.3V to 5.5V
Single Power Supply
? Low Power
30mA Total Supply Current
? Available in Green SOIC-8 Package
? -40℃ to +125℃ Operating
Temperature Range

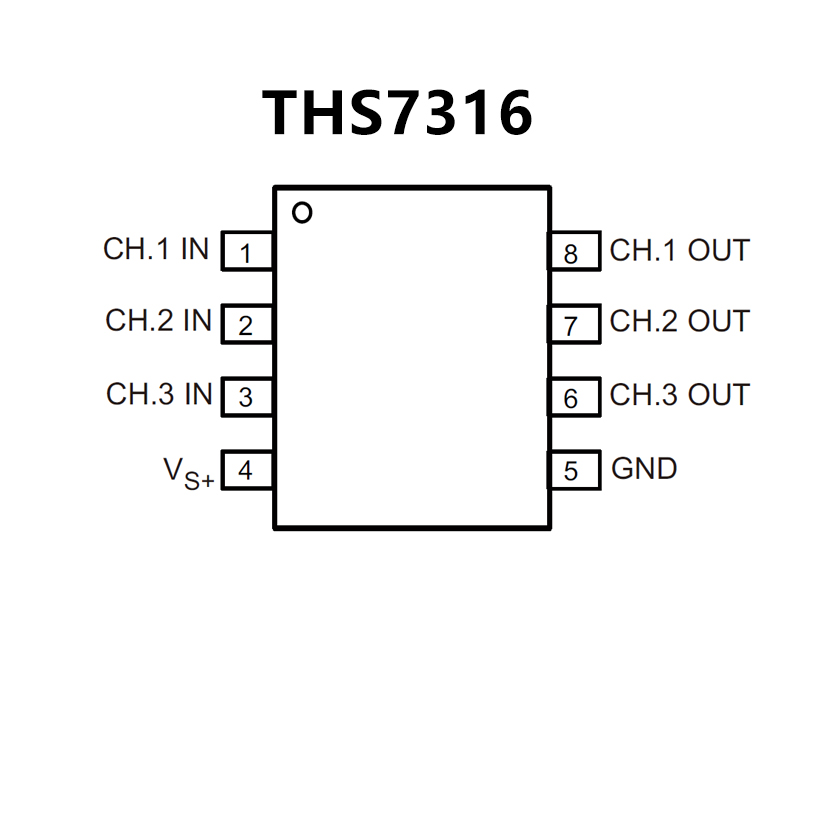

? 3 HDTV Video Amplifiers for
Y'P'BP'R 720p and
? 1080i, G'B'R' (R'G'B'),
VGA/SVGA/XGA
? Integrated Low-Pass Filters
5th-Order 36-MHz (–3 dB) Butterworth Filter
–1 dB Passband Bandwidth at 31 MHz
30 dB Attenuation at 74 MHz
? Versatile Input Biasing
DC-Coupled With 140-mV Input Shift
AC-Coupled with Sync-Tip Clamp
Allows AC-Coupled With Biasing
? Built-in 6-dB Gain (2V/V)
? 3-V to 5-V Single Supply Operation
? Rail-to-Rail Output:
Output Swings Within 100 mV From the
Rails Allowing AC or DC Output Coupling
Supports Driving 2 Lines per Channel
? Low 18.3-mA at 3.3-V Total Quiescent Current
? Low Differential Gain/Phase of 0.1% / 0.1°
? SOIC-8 Package
