8-Channel, 12-Bit, Configurable ADC/DAC with On-Chip Reference, I2C Interface, SGM90508 Replace AD5593.
SGM90508
SGM90508.pdf
SGM90508.pdfFEATURES
? Configurable 8 I/O Pins
8 Channels, 12-Bit VDAC
4 Channels, 12-Bit IDAC
8 Channels, 12-Bit ADC
8 Channels, GPIO
? Ultra-Low Drift IDAC: 100ppm/℃ (TYP)
? On-Chip Temperature Sensor
? Supply Monitor
? I2C Interface
? Available in Green TSSOP-16, TQFN-3×3-16BL and WLCSP-2.05×2.05-16B Packages

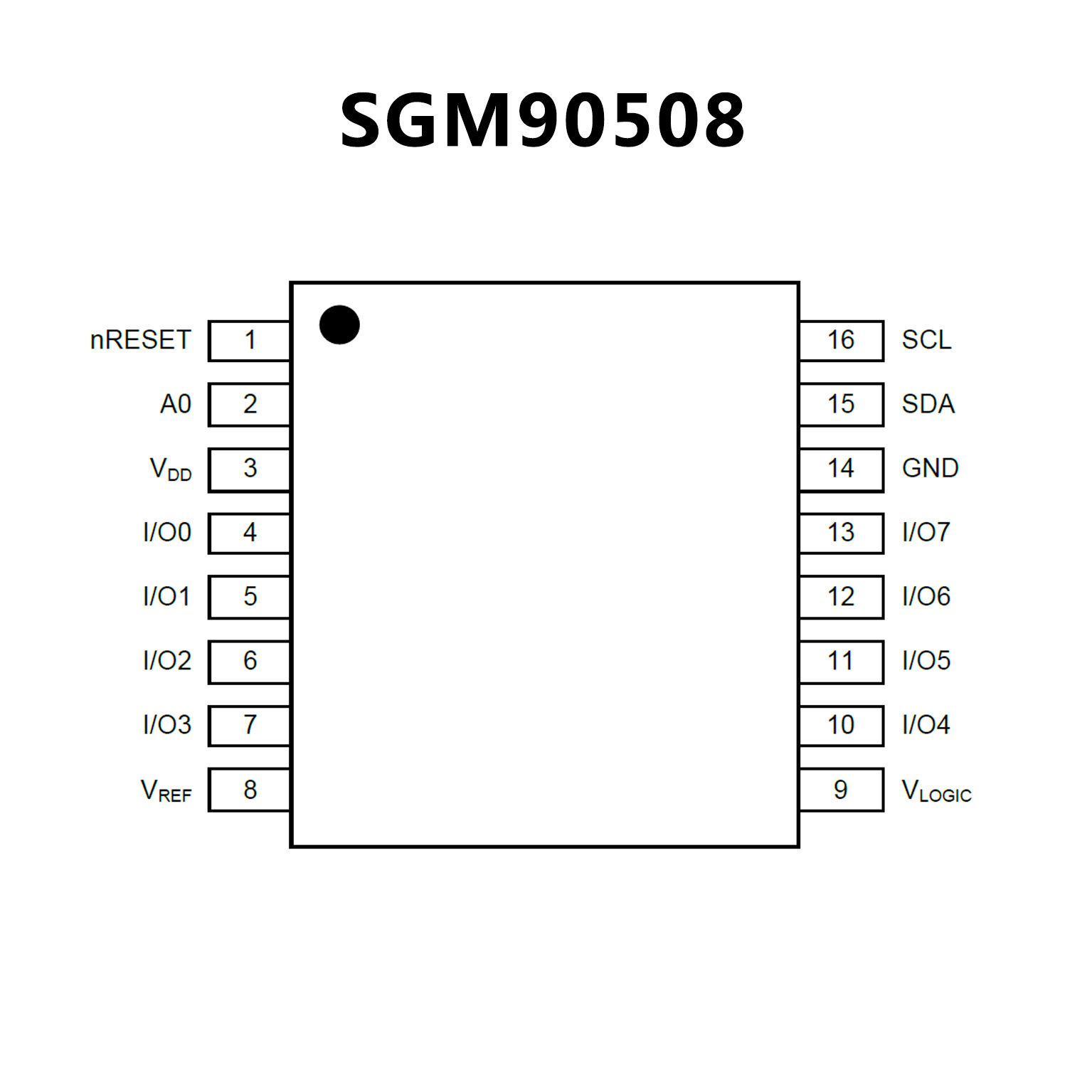

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 8-channel, configurable ADC/DAC/GPIO
Configurable as any combination of
8 12-bit DAC channels
8 12-bit ADC channels
8 general-purpose I/O pins
? Integrated temperature sensor
? 16-lead TSSOP and LFCSP and 16-ball WLCSP packages
I2C interface

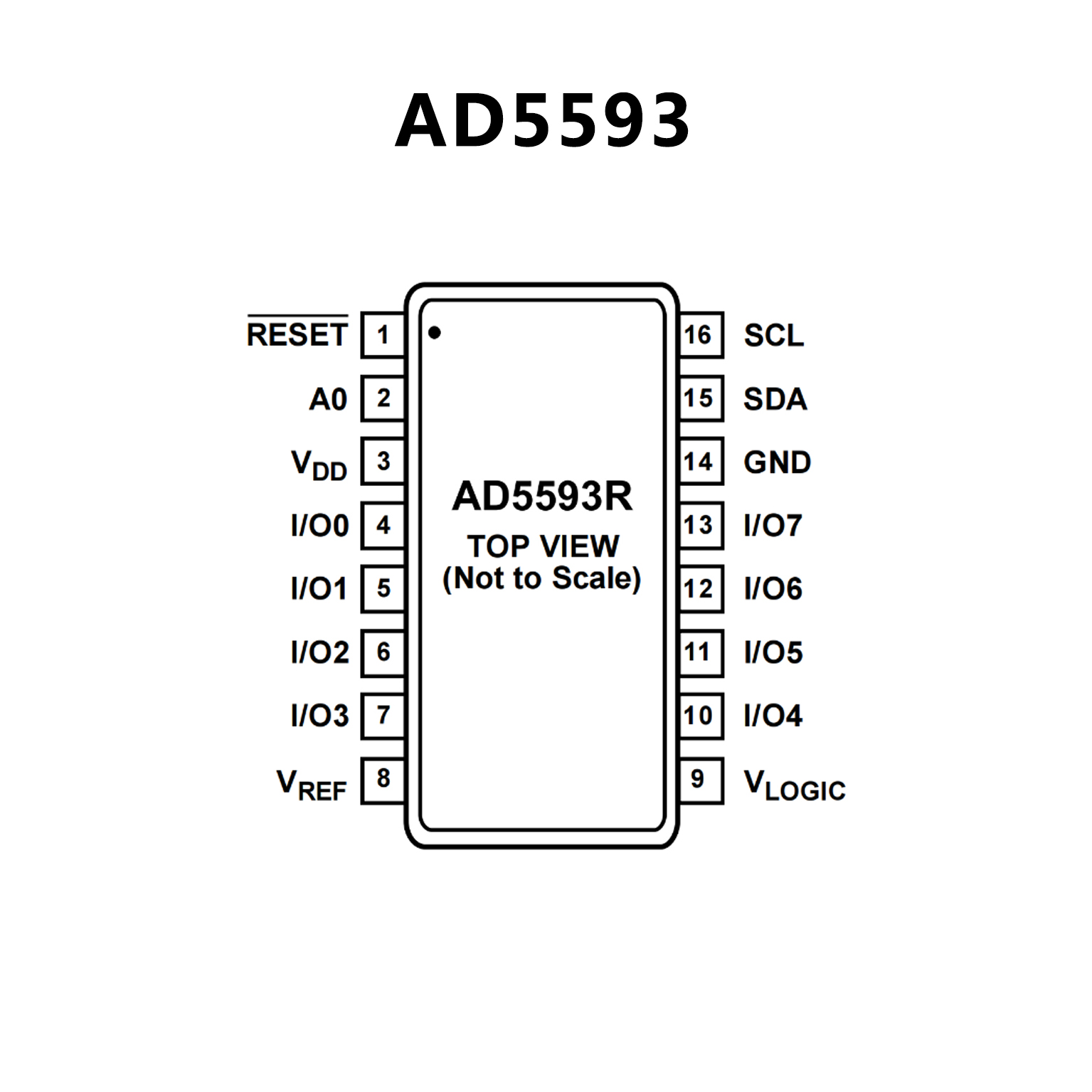

PIN CONFIGUTION
