8-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs.
SGM8T245
SGM8T245.pdf
SGM8T245.pdfFEATURES
? Control Inputs VIH/VIL Levels are
Referenced toVCCA Voltage
? VCC Isolation: If Either VCC Input is at GND,
All I/O Ports are in the High-Impedance State
? IOFF: Supports Partial Power-Down Mode Operation
? Fully Configurable Dual-Rail Design
Allows EachPort toOperate Over the Full
1.2V to 5.0VPower-Supply Range
? I/Os are 6.0V Tolerant
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TSSOP-24 and
TQFN-5.5×3.5-24LPackages

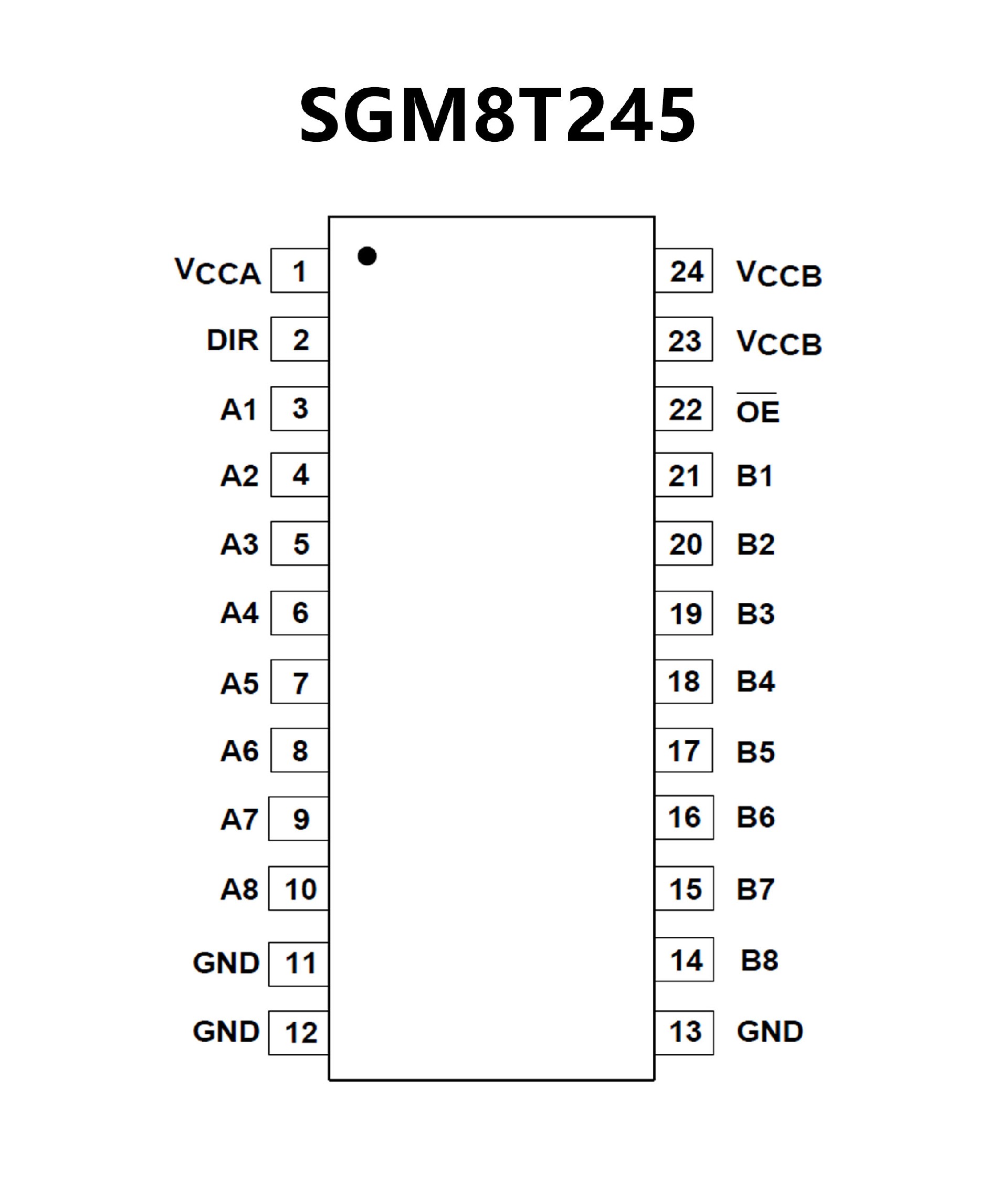

PIN CONFIGUTION
優勢替代
FEATURES
? Bidirectional Voltage Translator
? 5.5 V on A Port and 2.7 V to 3.6 V on B Port
? Control Inputs VIH/VIL Levels Are Referenced to
VCCA Voltage
? Latch-Up Performance Exceeds 250 mA Per
JESD 17
? ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model
– 200-V Machine Model
– 1000-V Charged-Device Model

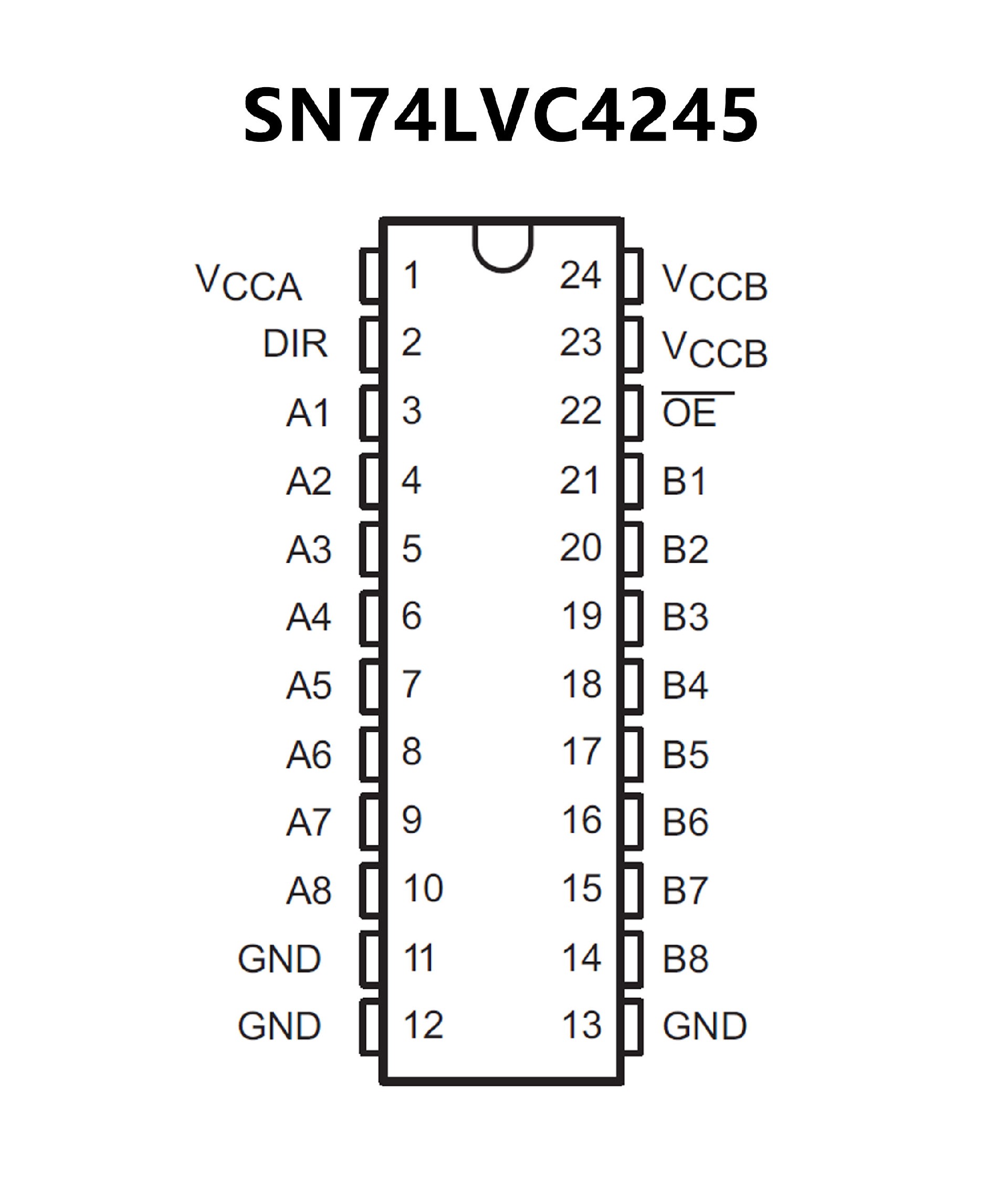

PIN CONFIGUTION
