SGM8968-4.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 240μV (MAX)
? High Gain-Bandwidth Product: 10MHz
? High Slew Rate: 20V/μs
? Settling Time to 0.1% with 2V Step: 280ns
? Overload Recovery Time: 100ns
? Low Noise: 8nV/ Hz at 10kHz
? Supply Voltage Range: 1.8V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
Supply Current: 1.6mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8968-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8968-2 Available in Green SOIC-8 and
MSOP-8 Packages

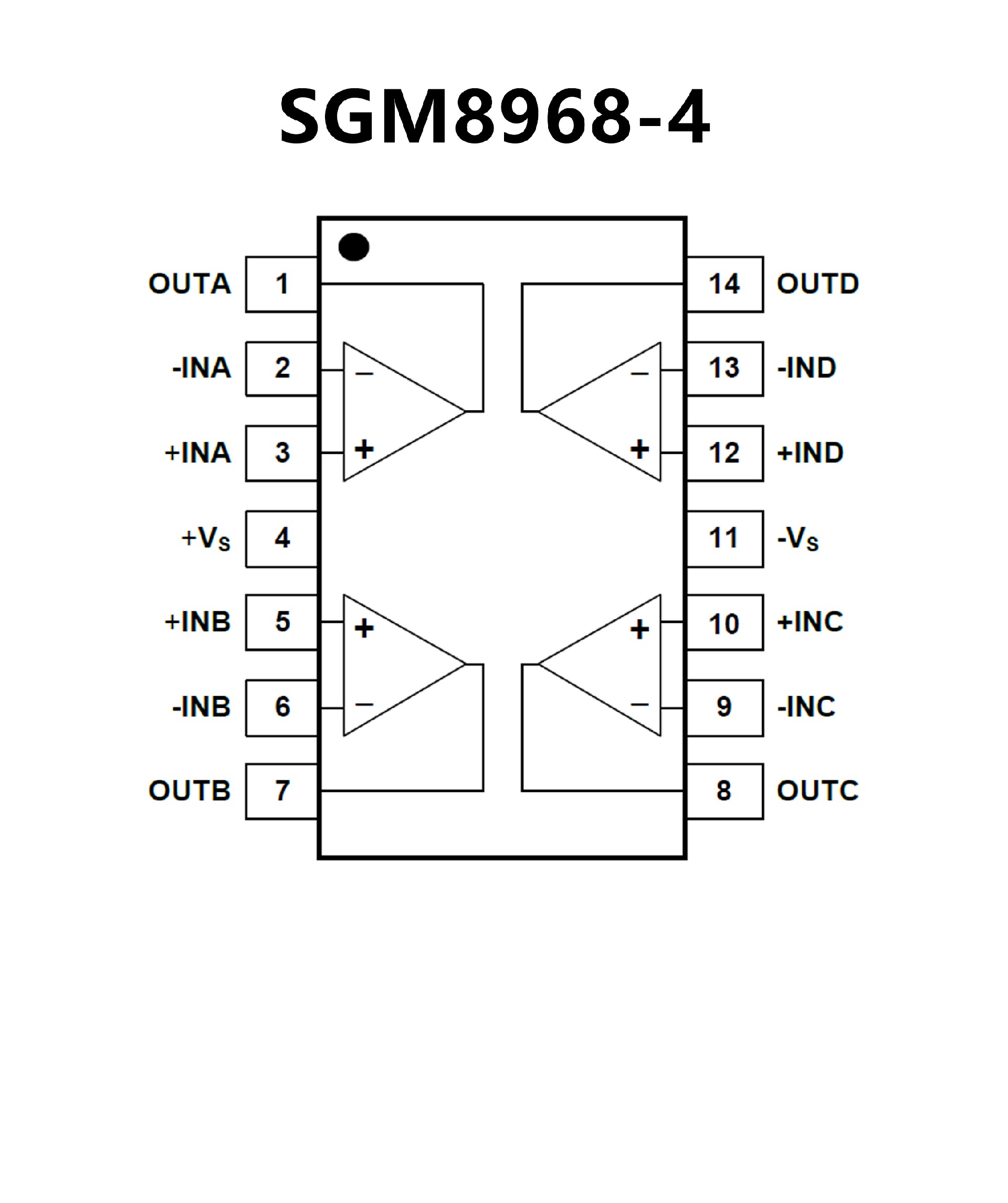

SGM8968-4 Available in Green SOIC-14 and
TSSOP-14 Packages
? Precision Amplifier for Cost-Sensitive Systems
? Low IQ: 65 μA/ch
? Wide Supply Range: 1.8 V to 5.5 V
? Low Noise: 26 nV/√Hz at 1 kHz
? Gain Bandwidth: 1 MHz
? Rail-to-Rail Input/Output
? Low Input Bias Current: 1 pA
? Low Offset Voltage: 0.75 mV
? Unity-Gain Stable
? Internal RF/EMI Filter
? Extended Temperature Range:
–40°C to +125°C
