SGM8967-1XN5G.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 240μV (MAX)
? High Gain-Bandwidth Product: 27MHz
? High Slew Rate: 30V/μs
? Settling Time to 0.1% with 2V Step: 120ns
? Overload Recovery Time: 60ns
? Low Noise: 8nV/ Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
Supply Current: 2.7mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

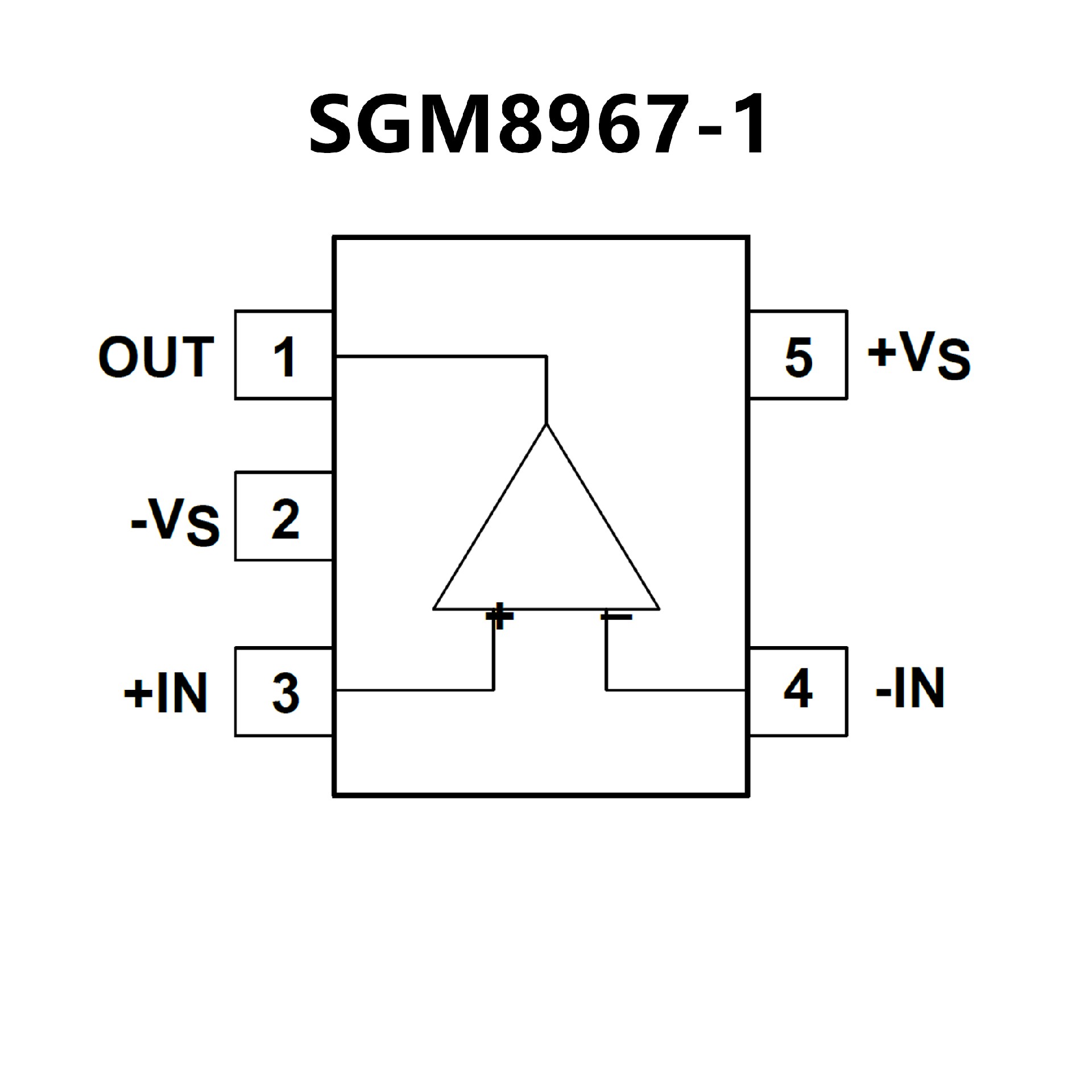

SGM8967-1 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8967-2 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8967-4 Available in Green SOIC-14 and
TSSOP-14 Packages

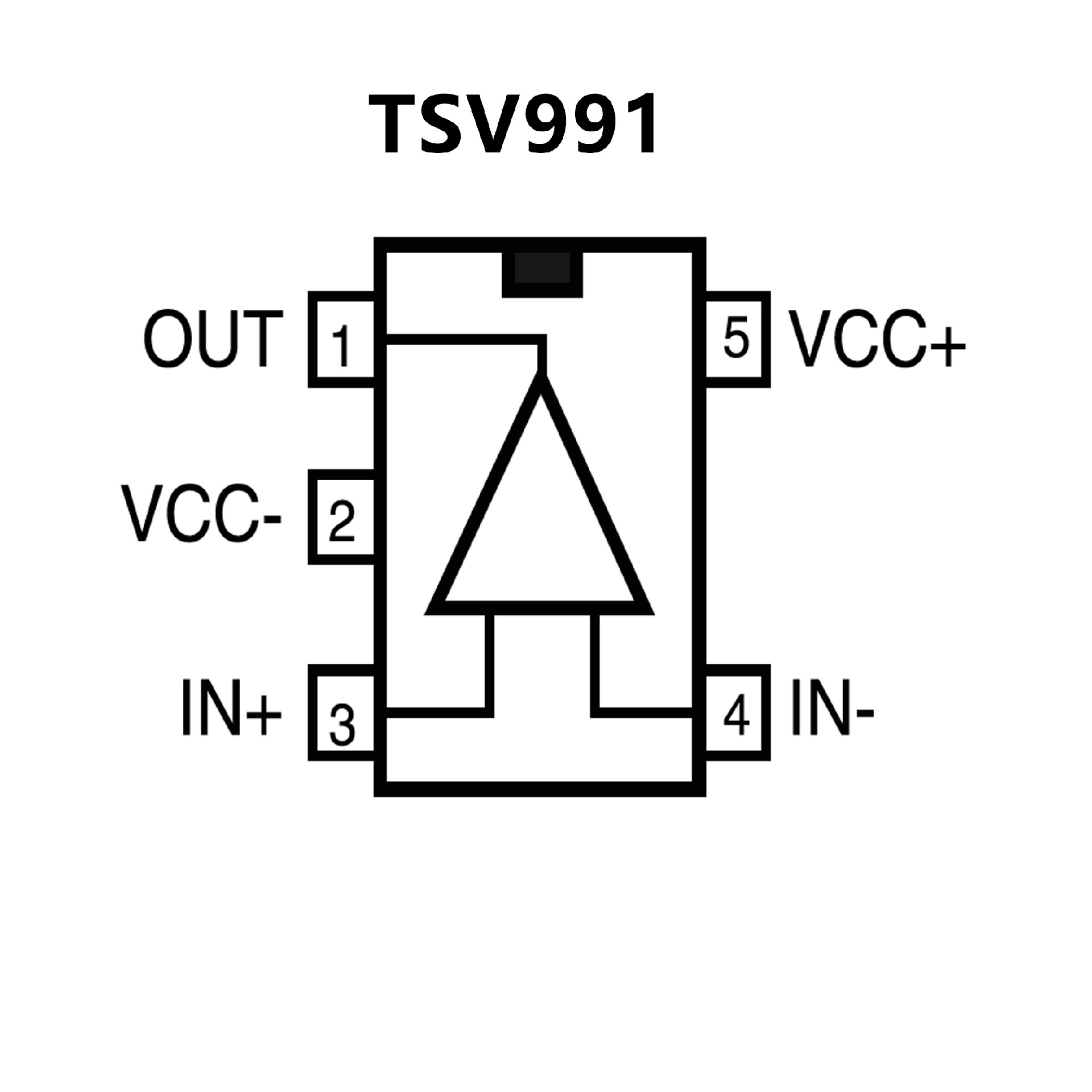

? Low input offset voltage: 1.5 mV max. (A grade)
? Rail-to-rail input and output
? Wide bandwidth 20 MHz
? Stable for gain ≥ 4 or ≤ -3
? Low power consumption: 820 μA typ.
? High output current: 35 mA
? Operating from 2.5 V to 5.5 V
? Low input bias current, 1 pA typ.
? ESD internal protection ≥ 5 kV
