High precision Operational Amplifier,SGM8955 Replace MCP616.
SGM8955
SGM8955.pdf
SGM8955.pdfFEATURES
? Low Offset Voltage: 50μV (MAX)
? Low 0.1Hz to 10Hz Noise: 2μVP-P
? Quiescent Current: 20μA/Amplifier (TYP)
? Integrated RFI Filter
? Single-Supply Operation
? Supply Voltage Range: 1.8V to 5.5V
? Rail-to-Rail Input and Output
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8955 Available in Green SOT-23-5, SC70-5 and SOIC-8

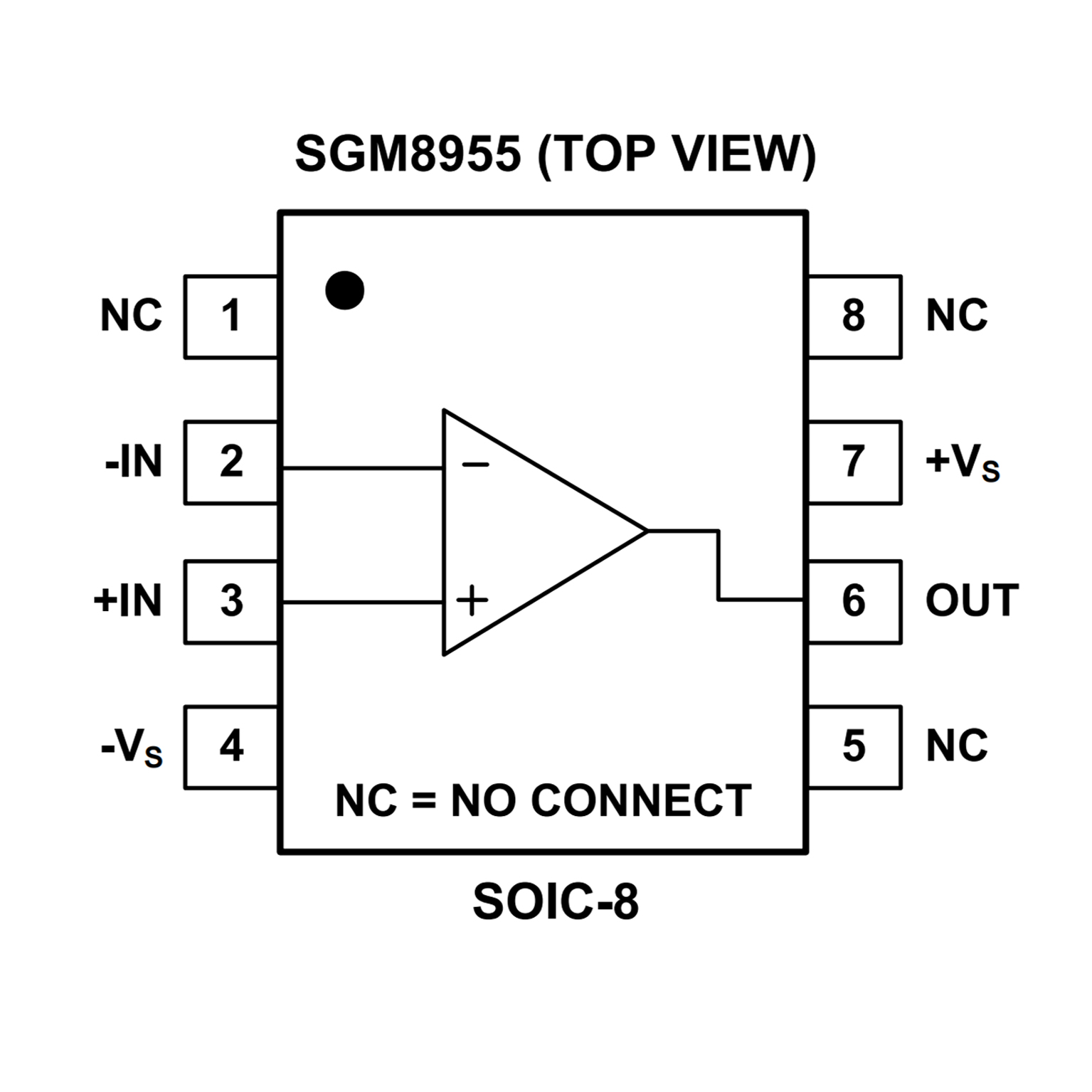

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low Input Offset Voltage: ±150 μV (maximum)
? Low Noise: 2.2 μVP-P (typical, 0.1 Hz to 10 Hz)
? Rail-to-Rail Output
? Low Input Offset Current: 0.3 nA (typical)
? Low Quiescent Current: 25 μA (maximum)
? Power Supply Voltage: 2.3V to 5.5V
? Unity Gain Stable
? Industrial Temperature Range: -40°C to +85°C
? No Phase Reversal
? Available in Single, Dual and Quad Packages

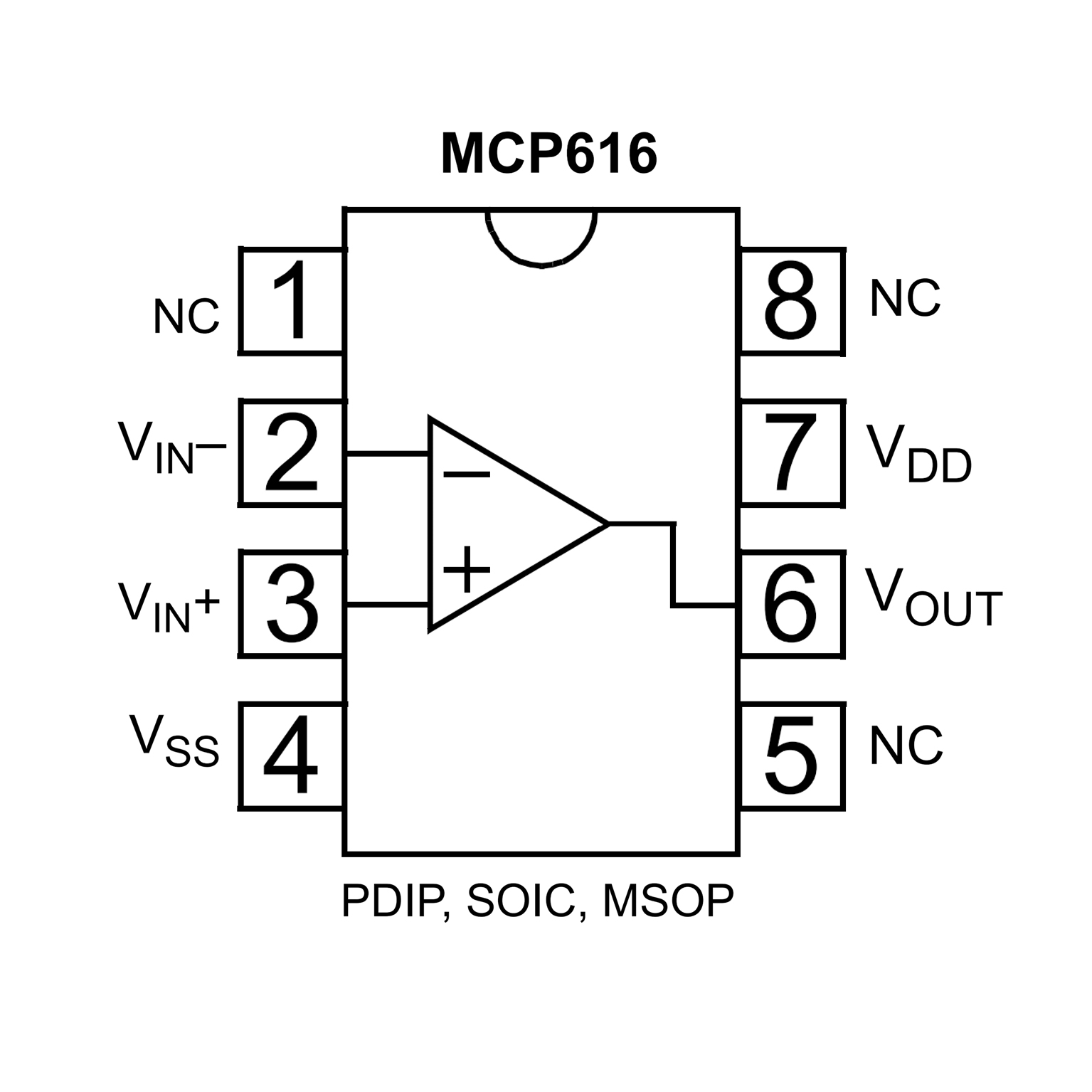

PIN CONFIGUTION
