Single Differntial Comparator, SGM8774D-1 Replace AP331AWRG7.
SGM8774D-1.pdf優勢替代
FEATURES
? Wide supplyVoltage range: 2.0V to 36V
Single or dual supplies: ±1.0V to ±18V
? Very low supply current drain (0.4mA)
independent ofsupply voltage
? Low input biasing current: 150nA
? Low input offset current: ±70nA
? Low input offset voltage: ±4mV
? Input common-mode voltage range includes ground
? Differential input voltage range
equal to the powersupply voltage
? Low output saturation voltage: 250mV at 4mA
? Output voltage compatible with
TTL, DTL, ECL, MOSand CMOS logic systems
? SOT25 and SOT25R: Available in
“Green” MoldingCompound (No Br, Sb)
? Lead Free Finish/ RoHS Compliant (Note 1)

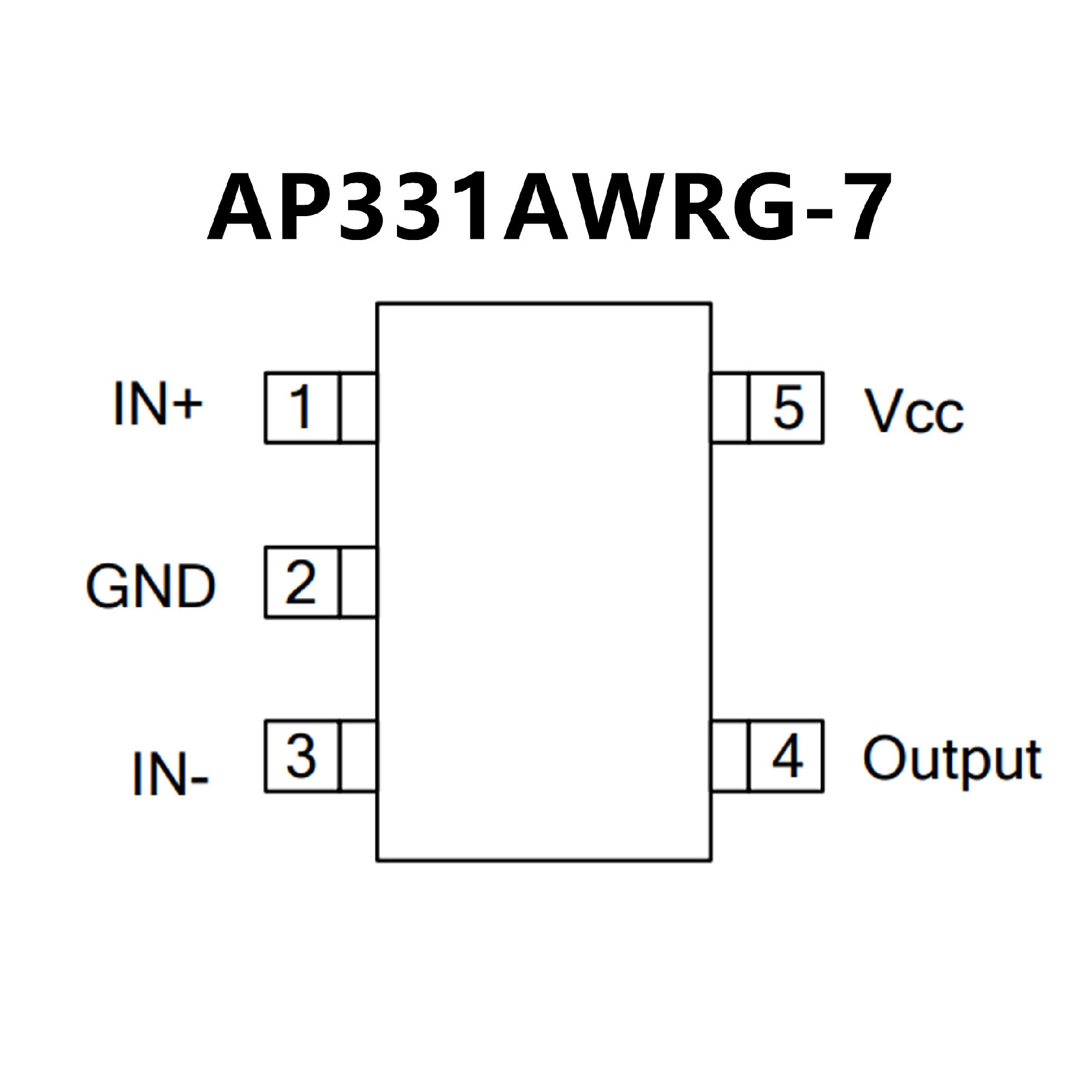

PIN CONFIGUTION
