Single Comparator, SGM8774D-1 Replace TL331BIDBVR.
SGM8774D-1.pdf優勢替代
FEATURES
? NEW TL331B and TL391B
? Improved specifications of B-version
Maximum rating: up to 38 V
ESD rating (HBM): 2k V
Improved reverse voltage performance
Low input offset: 0.37 mV
Low input bias current: 3.5 nA
Low supply-current: 430 μA
Faster response time of 1 μsec
TL391B provides an alternate pinout
? TL331B is improved drop-in replacement for
TL331
? Common-mode input voltage range includes
ground
? Differential input voltage range
equal to maximumrated
supply voltage: ±38 V
? Low output saturation voltage
? Output compatible with TTL, MOS, and CMOS

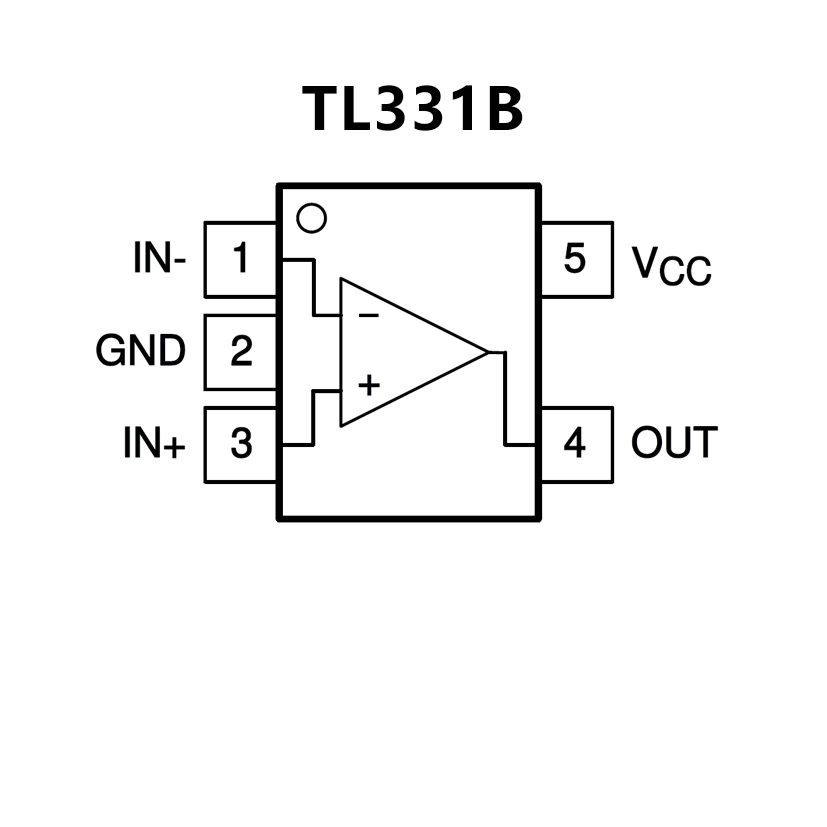

PIN CONFIGUTION
