High Voltage, High Precision,Dual Differential Comparator,SGM8770XS8G Replace uPC393G2-A.
SGM8770XS8G
SGM8770XS8G.pdf
SGM8770XS8G.pdfFEATURES
? Single Supply or Dual Supplies
? Wide Supply Voltage Range: 2.8V to 36V
? Open-Drain Output
? Low Supply Current Independent of
Supply Voltage:310μA (TYP)
? Low Input Offset Voltage: 2.4mV (MAX)
? Low Input Bias Current: ±20pA (TYP)
? Input Common Mode Voltage
Range Includes Ground
? Differential Input Voltage Range Equal
to Maximum-Rated Supply Voltage: ±36V
? Low Output Saturation Voltage
? Output Compatible with TTL and CMOS
? -40℃ to +125℃ Operating
Temperature Range
? Available in Green SOIC-8
and TDFN-3×3-8L Packages

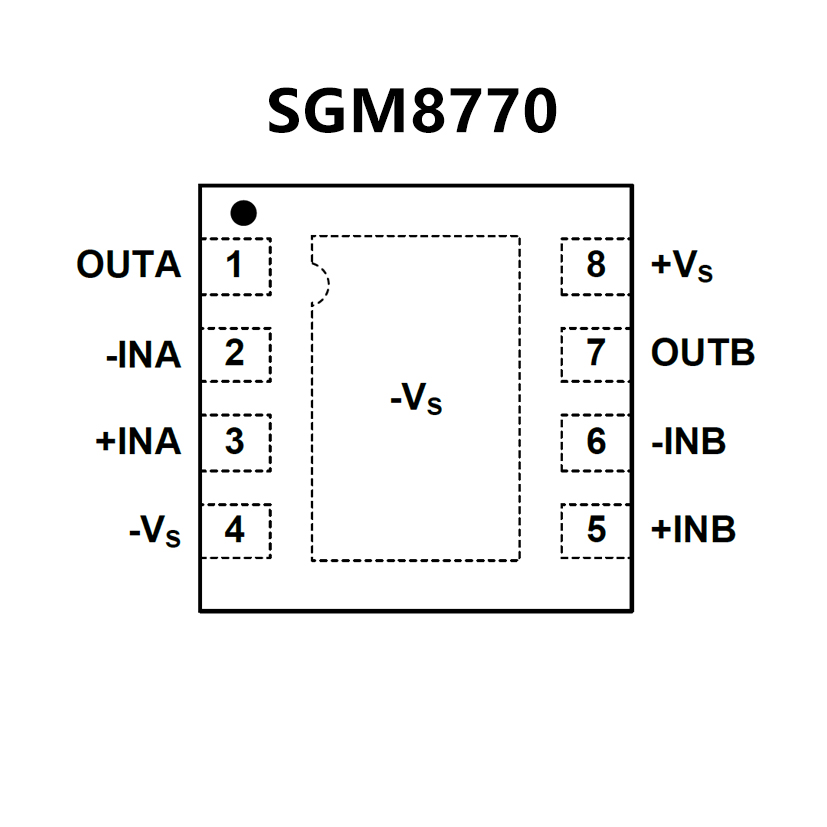

PIN CONFIGUTION
優勢替代
