High Speed Operational Amplifier, SGM8652 Replace OPA2350.
SGM8652
SGM8652.pdf
SGM8652.pdfFEATURES
? Low Cost
? Rail-to-Rail Output 2mV Typical VOS
? Gain-Bandwidth Product: 50MHz
? High Slew Rate: 66V/μs
? Settling Time to 0.1% with 2V Step: 60ns
? Overload Recovery Time: 25ns
? Low Noise: 8.7nV/ Hz
? Operates on 2.5V to 5.5V Supplies
? Input Voltage Range = -0.2V to + 3.8V with VS = 5V
? Low Power
2.3mA/Amplifier Typical Supply Current
75μA/Amplifier when Disabled (SGM8653/5 Only)

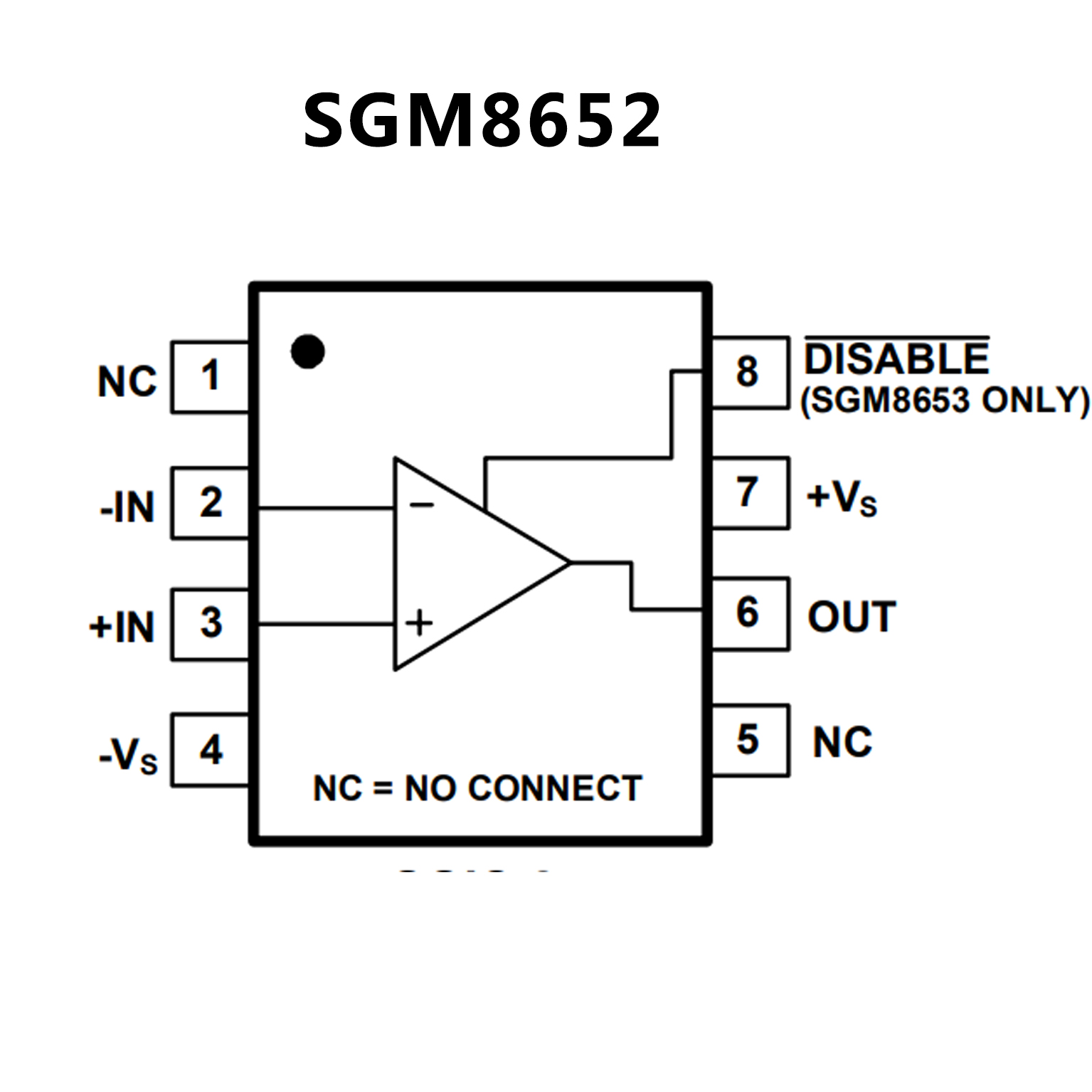

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Rail-to-Rail Input
? Rail-to-Rail Output (Within 10 mV)
? Wide Bandwidth: 38 MHz
? High Slew Rate: 22 V/μs
? Low Noise: 5 nV/√Hz
? Low THD+Noise: 0.0006%
? Unity-Gain Stable
? MicroSize Packages
? Single, Dual, and Quad

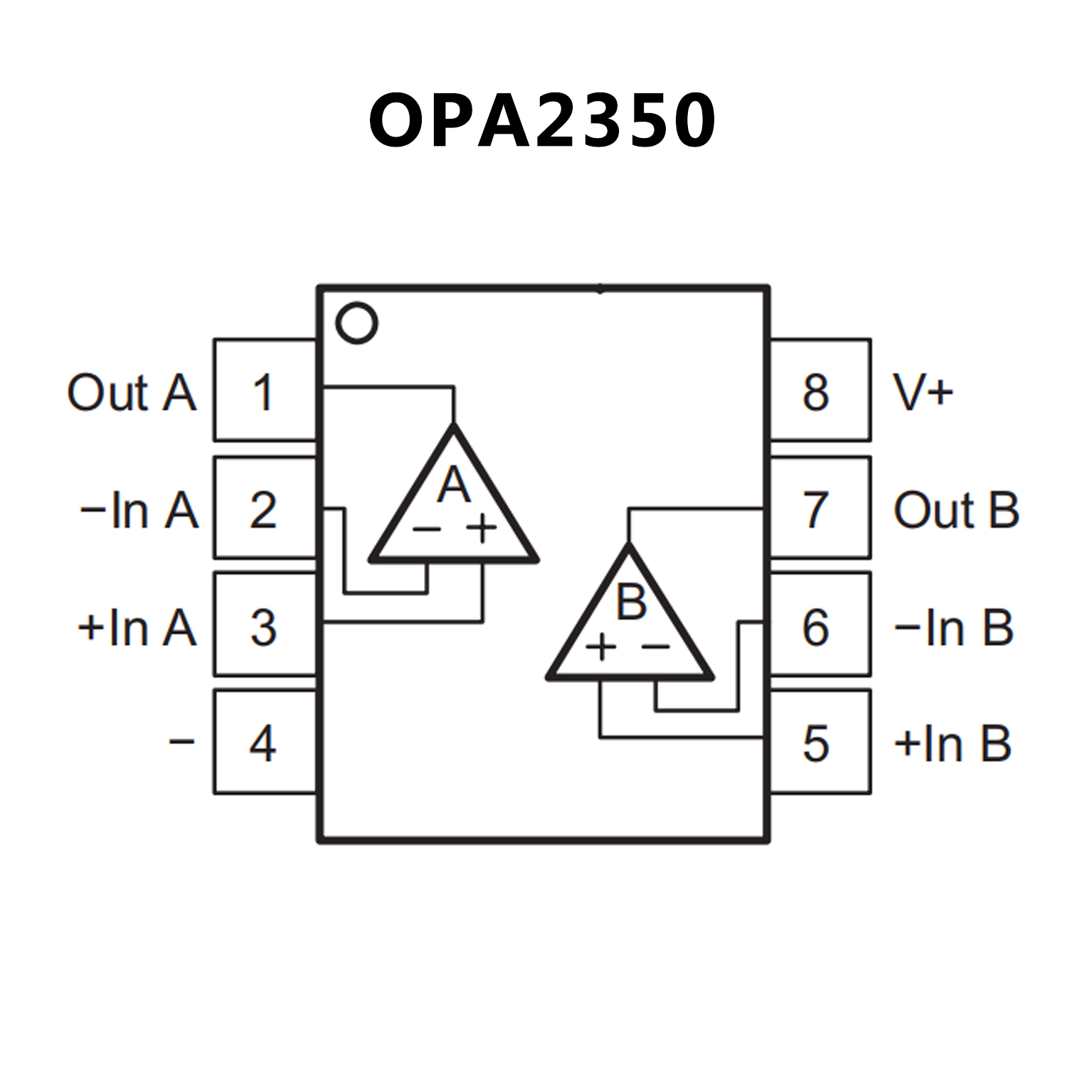

PIN CONFIGUTION
