470μA, 6MHz, Rail-to-Rail I/O CMOS Operational Amplifier,SGM8634XS14 Replace TLV2314IDR.
SGM8634
SGM8634.pdf
SGM8634.pdfFEATURES
? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 2.1μs
? Overload Recovery Time: 0.9μs
? Low Noise: 12nV/Hz
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 470μA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TSSOP-14 and SOIC-14 Packages

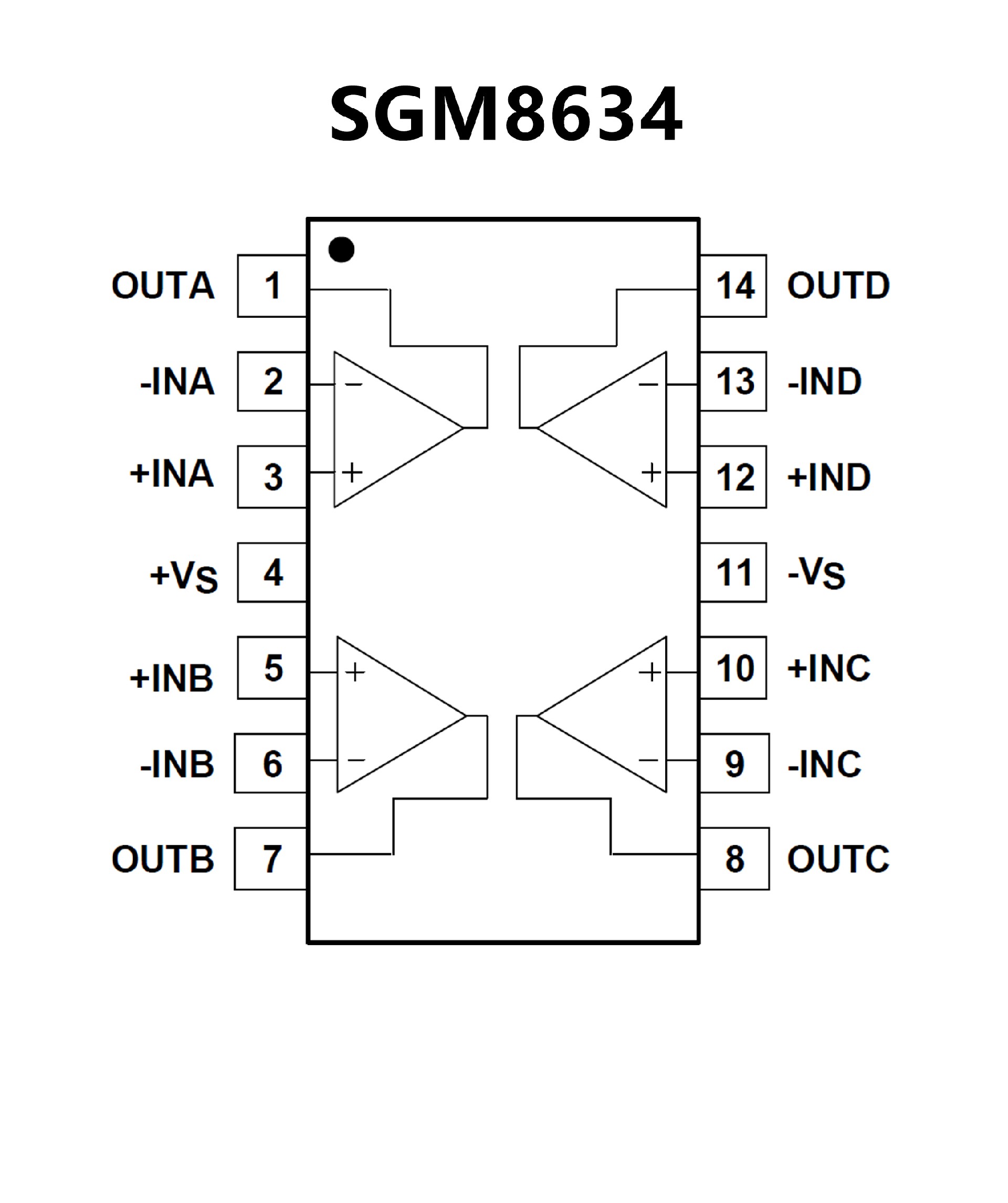

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low Offset Voltage: 0.75 mV (typ)
? Low Input Bias Current: 1 pA (typ)
? Wide Supply Range: 1.8 V to 5.5 V
? Rail-to-Rail Input and Output
? Gain Bandwidth: 3 MHz
? Low IQ: 250 μA/Ch (max)
? Low Noise: 16 nV/√Hz at 1 kHz
? Internal RF/EMI Filter
? Extended Temperature Range:
–40°C to +125°C

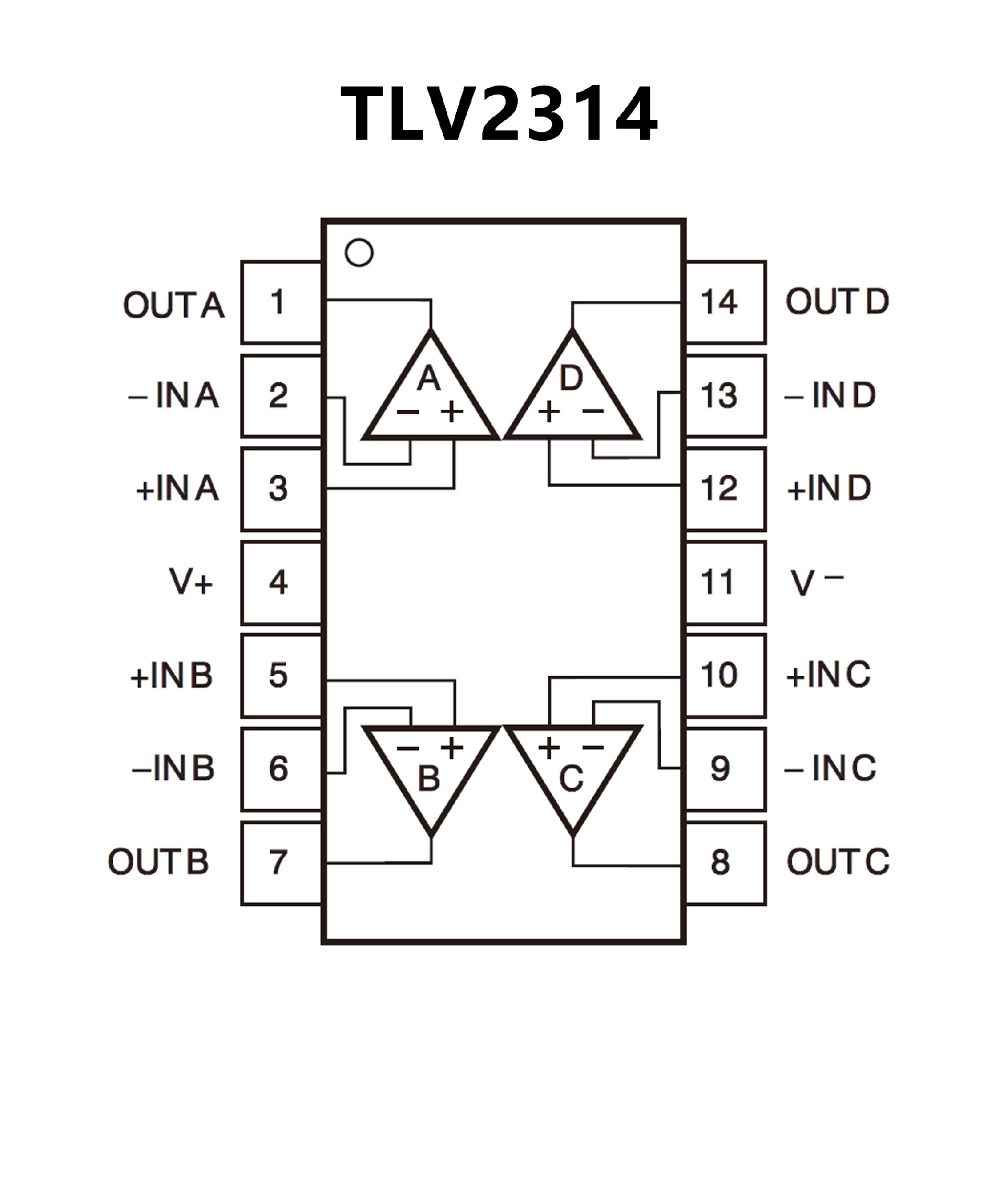

PIN CONFIGUTION
