2.2mA,12MHz,Low Noise,Rail-to-Rail I/OTiny Package,CMOS Operational Amplifier, SGM8602XN8G/TR P2P OPA2348.
SGM8602
SGM8602.pdf
SGM8602.pdfFEATURES
? Rail-to-Rail Input and Output
? 5.1mV Maximum Input Offset Voltage
? High Gain-Bandwidth Product: 12MHz
? High Slew Rate: 9V/μs
? Settling Time to 0.1% with 2V Step: 0.2μs
? Overload Recovery Time: 0.4μs
? Low Noise: 9nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Power: 2.2mA (TYP) Supply Current
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-8 and
TDFN-2×3-8LPackages

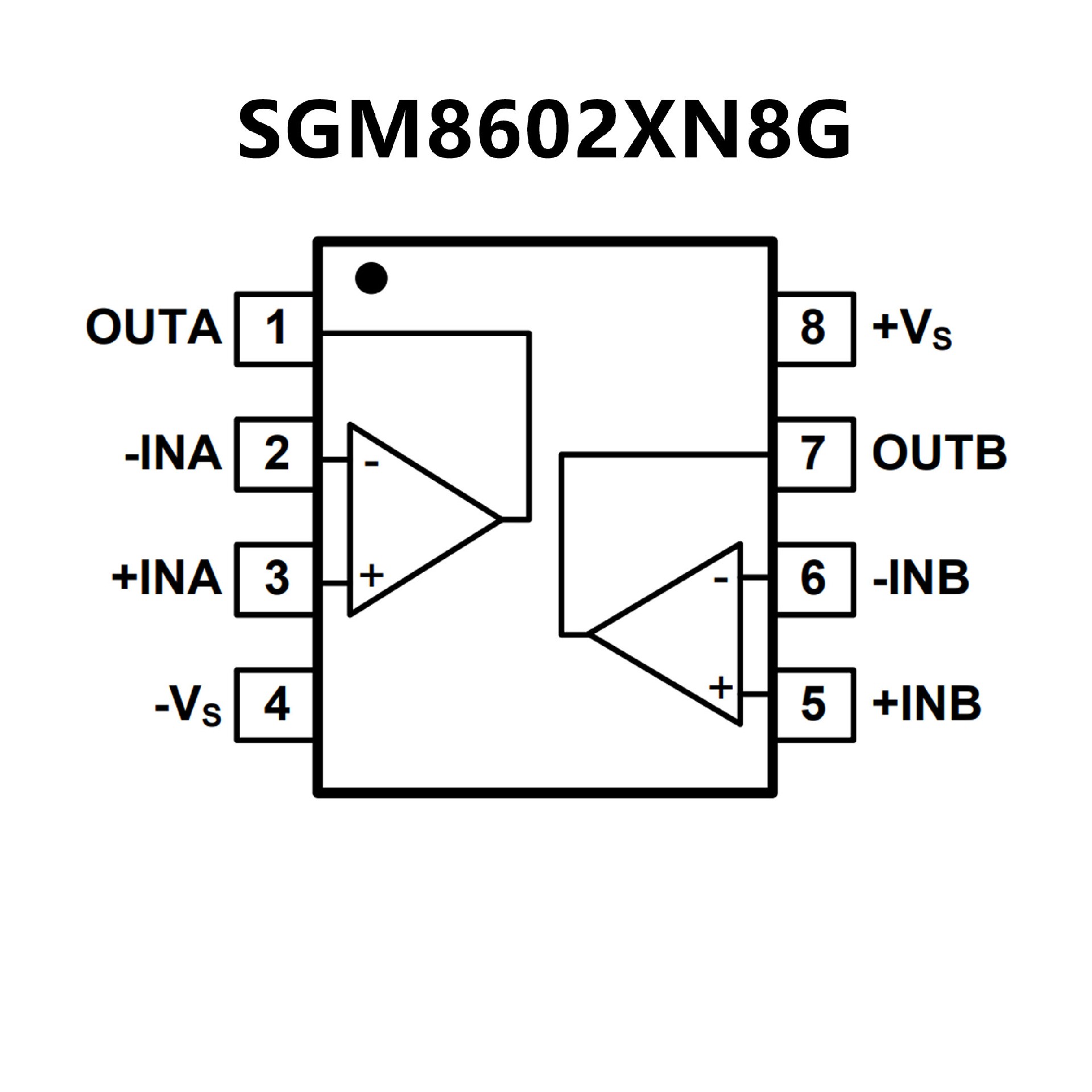

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? LOW IQ: 45μA typical
? LOW COST
? RAIL-TO-RAIL INPUT AND OUTPUT
? SINGLE SUPPLY: +2.1V to +5.5V
? INPUT BIAS CURRENT: 0.5pA
? MicroSIZE PACKAGES: SC70-5, SOT23-8
? HIGH SPEED:POWER WITH BANDWIDTH: 1MHz

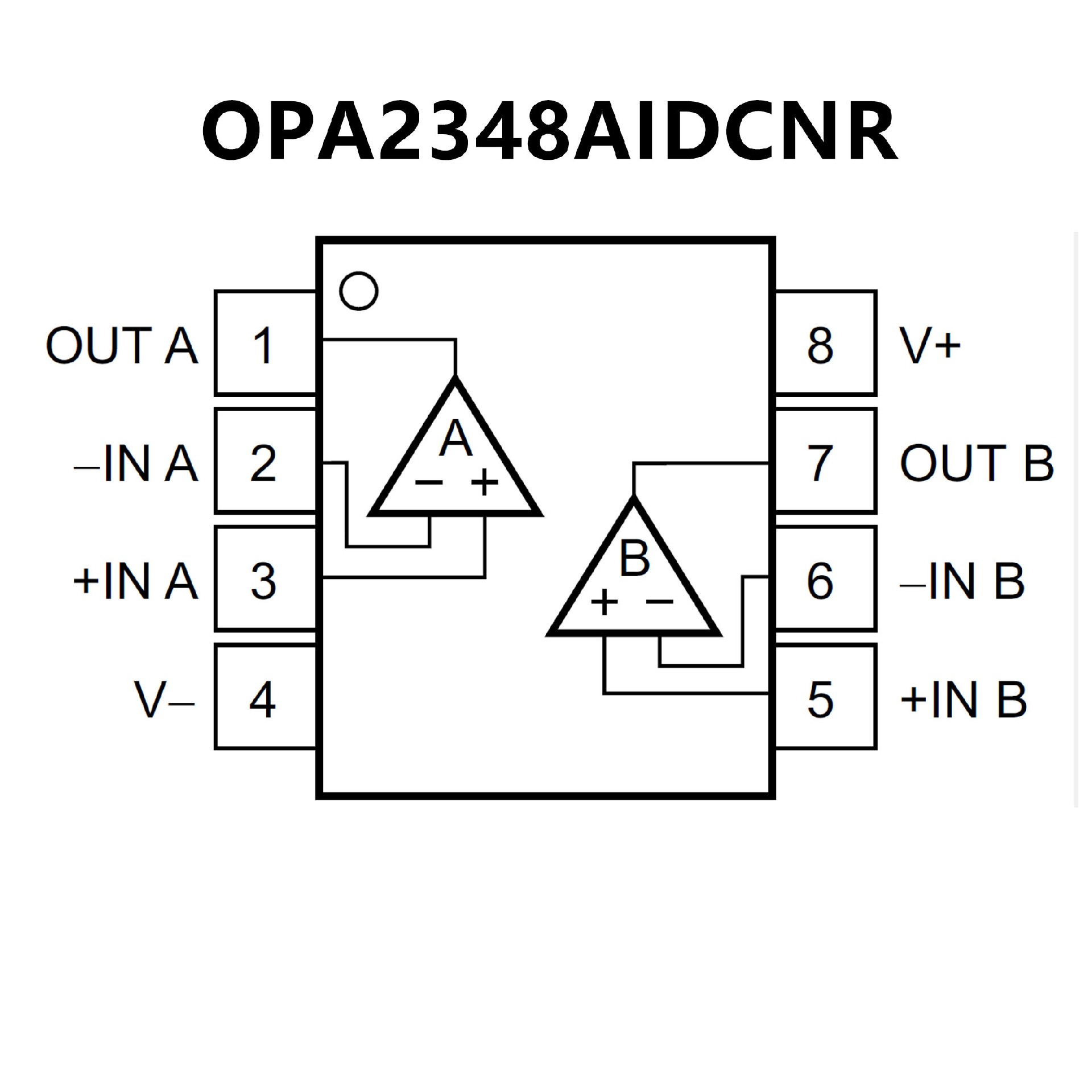

PIN CONFIGUTION
