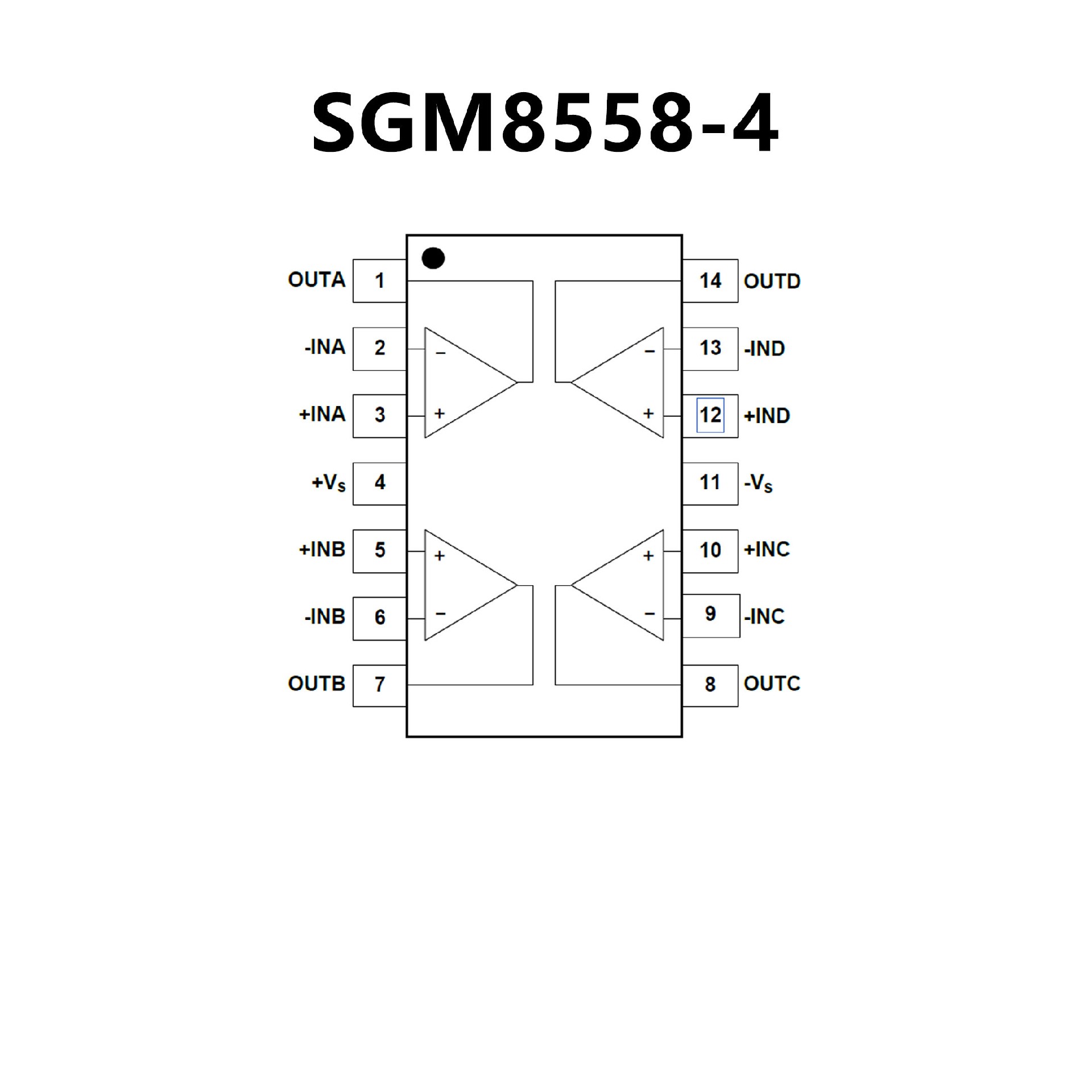

SGM8558-4.pdf? 230mA Output Drive Capability
? Low Input Offset Voltage: 15μV (MAX)
? Low Noise: 8nV/Hz at 1kHz
? 230mA Current Limitation
? Over-Temperature Protection
? Supply Voltage Range: 2.8V to 5.5V
? Supply Current:
0.86mA/Amplifier (TYP)
0.2μA (TYP) Shutdown Current for SGM8558-3
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 8V/μs
? Voltage Gain (RL = 2kΩ): 139dB
? Power Supply Rejection Ratio: 130dB
? No Phase Reversal for Overdriven Inputs
? Unity-Gain Stable for Capacitive Loads to 780pF
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8558-1 Available in Green
SOIC-8 andSOT-23-5 Packages
SGM8558-2 Available in Green TDFN-3×3-8L
and SOIC-8 Packages
SGM8558-3 Available in a Green SOT-23-6 Package
SGM8558-4 Available in a Green SOIC-14 Package

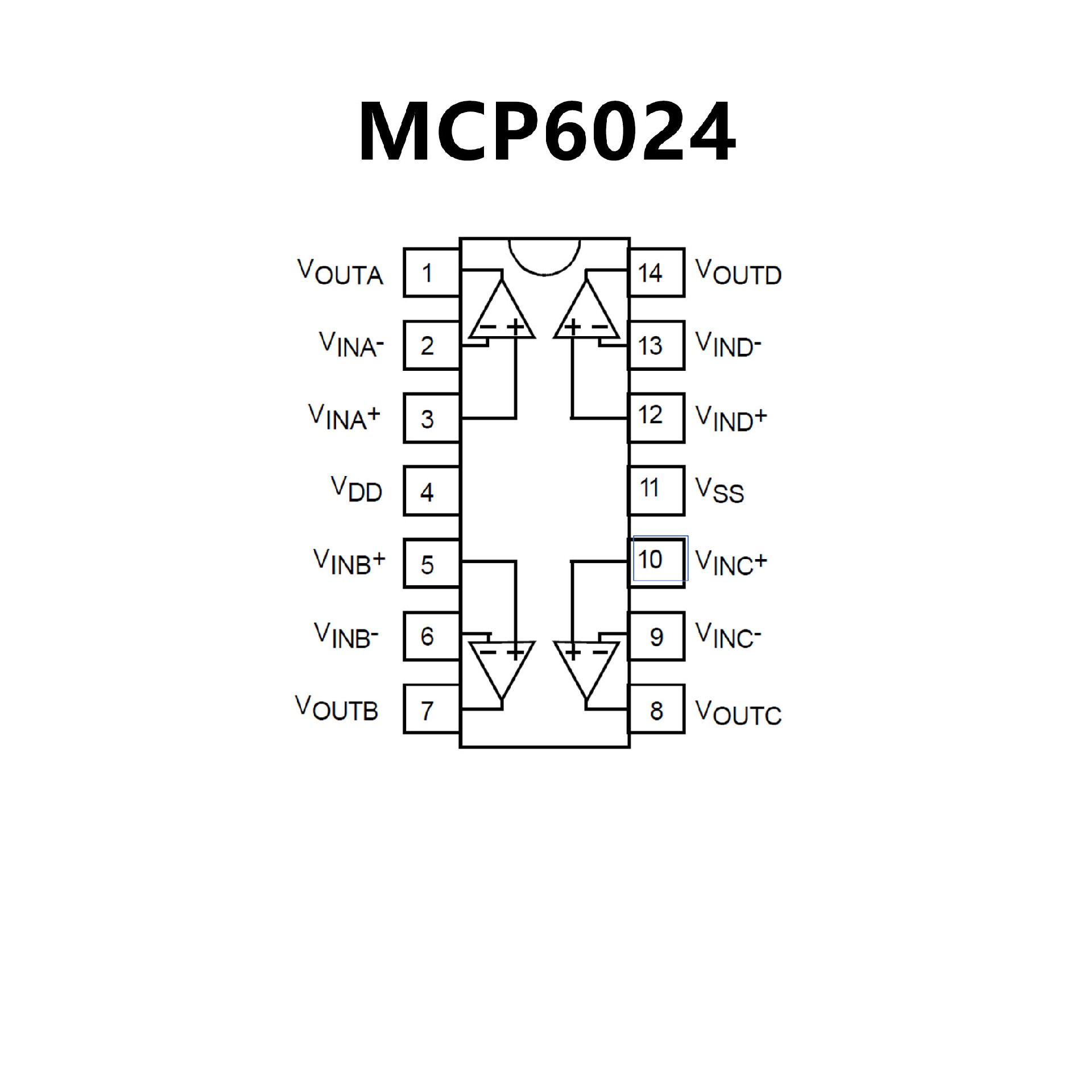

? Rail-to-Rail Input/Output
? Wide Bandwidth: 10 MHz (typical)
? Low Noise: 8.7 nV/√Hz at 10 kHz (typical)
? Low Offset Voltage:
Industrial Temperature: ±500 μV (max.)
Extended Temperature: ±250 μV (max.)
? Mid-Supply VREF: MCP6021 and MCP6023
? Low Supply Current: 1 mA (typical)
? Total Harmonic Distortion:
0.00053% (typical, G = 1 V/V)
? Unity Gain Stable
? Power Supply Range: 2.5V to 5.5V? Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
