15MHz, High Output Drive, High Precision, Low Noise Operational Amplifier, SGM85572 P2P AD8676.
SGM8557-2
SGM8557-2.pdf
SGM8557-2.pdfFEATURES
? 235mA Output Drive Capability
? Rail-to-Rail Output
? Low Input Offset Voltage: 5μV (MAX)
? Low Input Offset Voltage Drift: 20nV/℃ (TYP)
? Low Noise: 30nV/√Hz at 1kHz
? Over-Temperature Protection
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Supply Current: 2.4mA (TYP)
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? High Open-Loop Gain (RL = 2kΩ): 135dB
? Power Supply Rejection Ratio: 121dB
? No Phase Reversal for Overdriven Inputs
? Available in a Green MSOP-8 Package

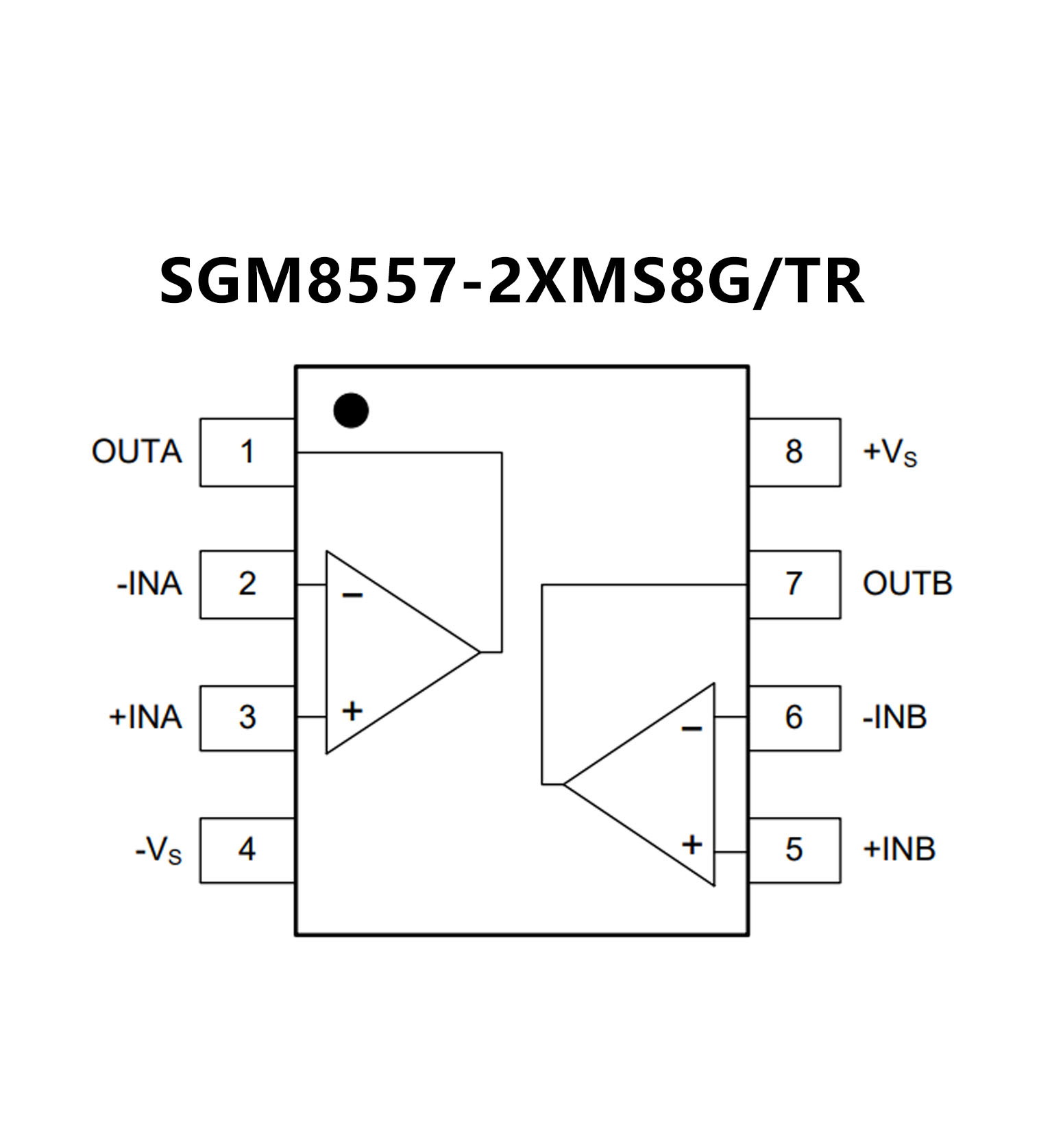

PIN CONFIGUTION
優勢替代
FEATURES
? Very low voltage noise 2.8 nV/√Hz @ 1 kHz
? Rail-to-rail output swing
? Low input bias current: 2 nA maximum
? Very low offset voltage: 12 μV typical
? Low input offset drift: 0.6 μV/°C maximum
? Very high gain: 120 dB
? Wide bandwidth: 10 MHz typical

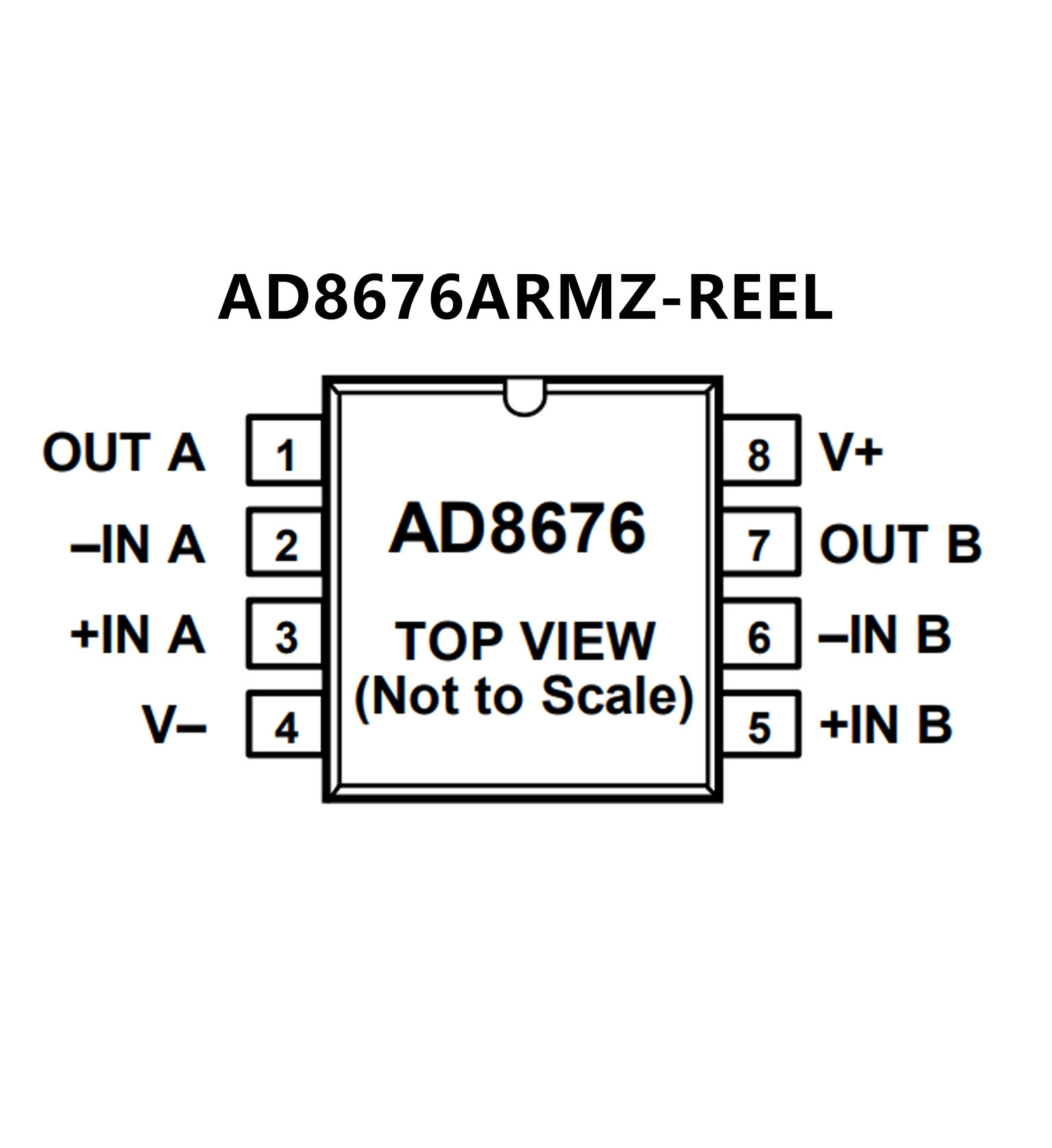

PIN CONFIGUTION
