High precision Operational Amplifier, Replace MCP6V02
SGM8552
SGM8552.pdf
SGM8552.pdfFEATURES
? Low Offset Voltage: 4μV (TYP)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 145dB (TYP) at +5V
? PSRR: 110dB (TYP)
? CMRR: 105dB (TYP)
? Ultra Low Input Bias Current: 10pA
? Low Supply Current: 930μA (TYP)
? Overload Recovery Time: 60μs (at VS = +5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

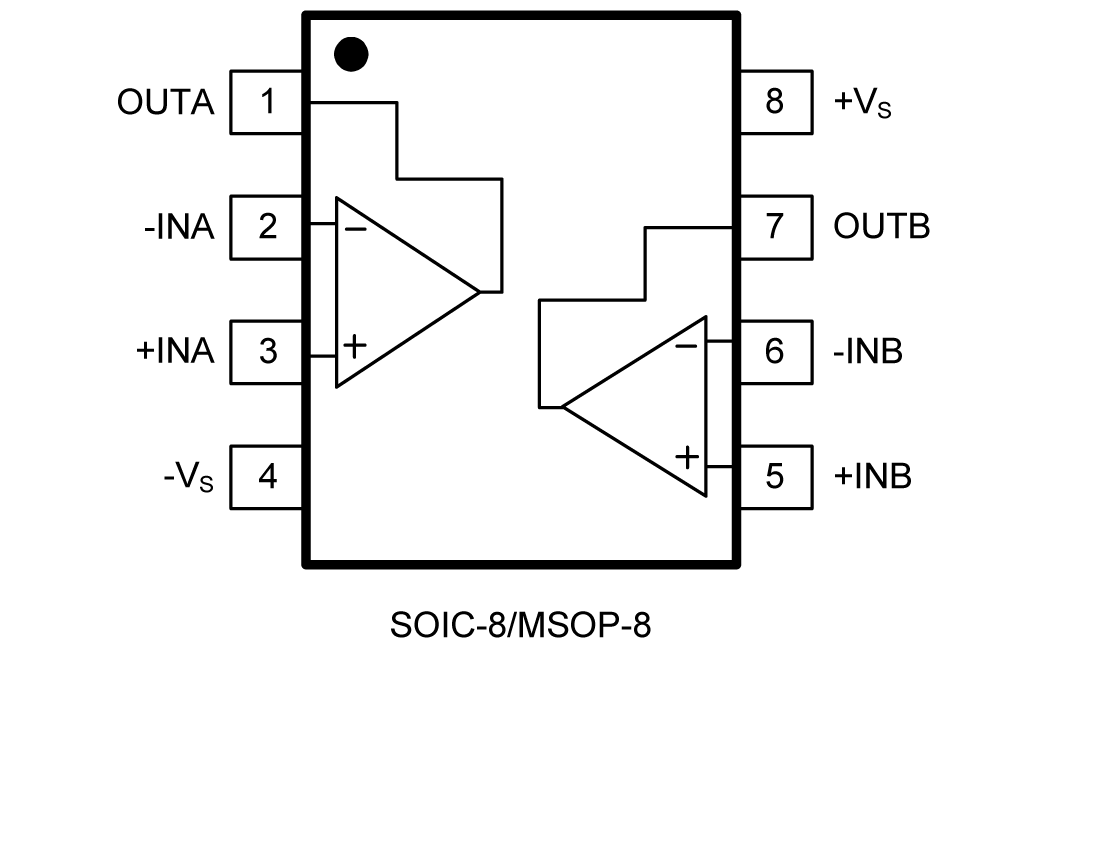

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? High DC Precision:
- VOS Drift: ±50 nV/°C (maximum)
- VOS: ±2 μV (maximum)
- AOL: 130 dB (minimum)
- PSRR: 130 dB (minimum)
- CMRR: 130 dB (minimum)
? Low Power and Supply Voltages:
- IQ: 300 μA/amplifier (typical)
- Wide Supply Voltage Range: 1.8V to 5.5V
? Easy to Use:
- Rail-to-Rail Input/Output
- Gain Bandwidth Product: 1.3 MHz (typical)

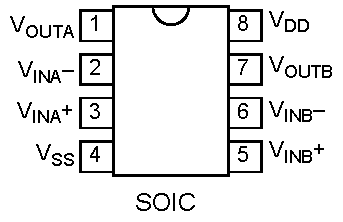

PIN CONFIGUTION
