SGM8295.pdf? Low Noise: 4.5nV/ Hz
? Rail-to-Rail Output
? Very Low Offset Voltage: 250μV (MAX)
? Low Bias Current: ±1nA (TYP)
? High Gain-Bandwidth Product: 9MHz
? High Slew Rate: 8V/μs
? High Open-Loop Gain: 130dB at VS = ±15V
? High PSRR: 145dB
? Settling Time to 0.1% with 1V Step: 1μs
? Overload Recovery Time: 10μs
? Operating Voltage Range:
3.6V to 36V or ±1.8V to ±18V
? Input Common Mode Voltage
Range:(-VS) + 1.5V to (+VS) - 2V
? Low Supply Current:
1.5mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

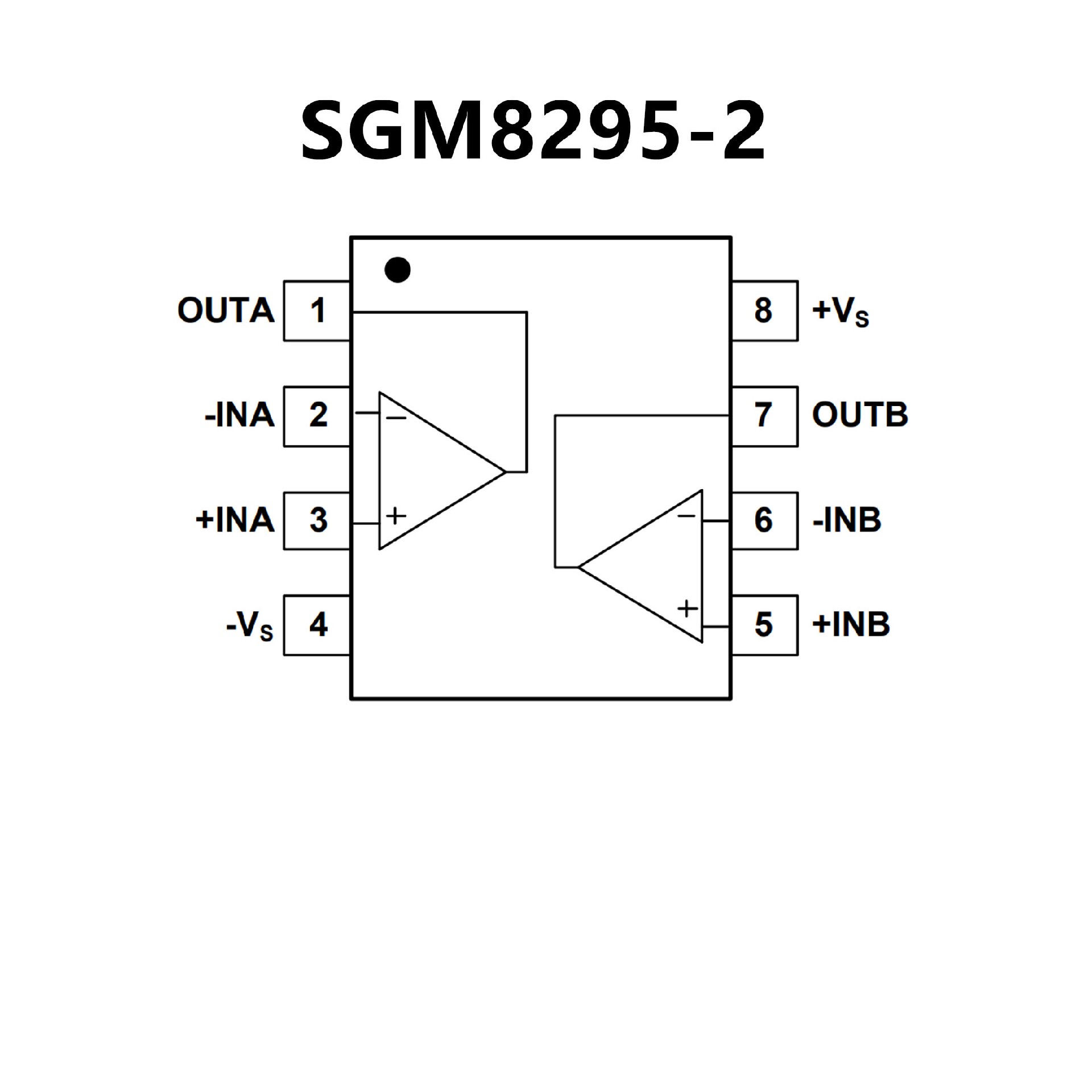

SGM8295-1 Available in Green SOT-23-5 andSOIC-8 Packages
SGM8295-2 Available in Green SOIC-8 and MSOP-8 Packages
SGM8295-4 Available in Green SOIC-14 Packag
? Single or dual supply, rail-to-rail output
and below ground (V-) input capability
? Rail-to-rail input differential voltage
range for comparatorapplications
? Single supply range 3V to 40V
? Low current consumption
(VS = ±5V) 165μA

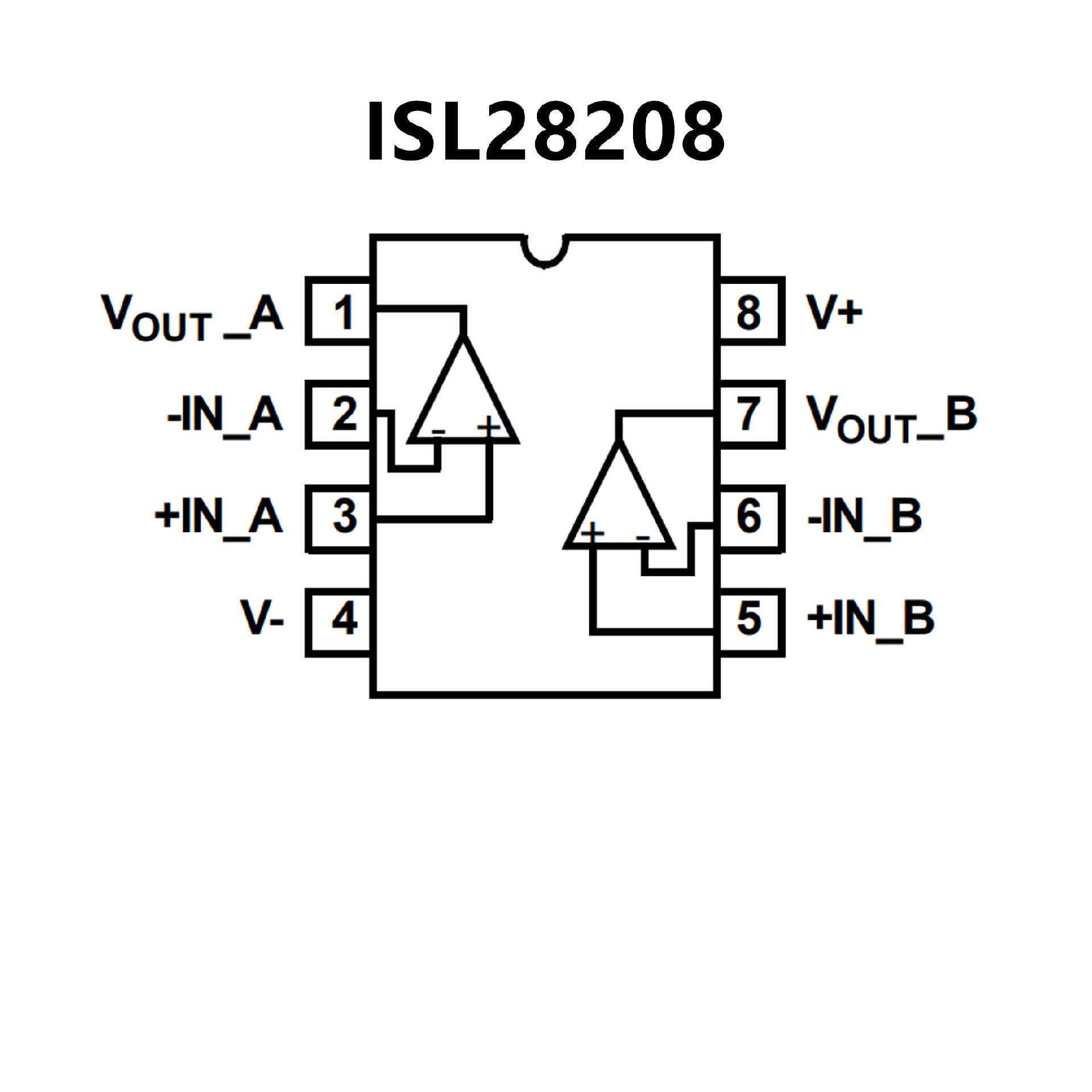

? Low noise voltage15.8nV/√Hz
? Low noise current 80fA/√Hz
? Low input offset voltage
(ISL28108) 150μV
? Superb temperature drift
- Voltage
offset TC 0.1μV/°C, Typ
? Low input bias current-13nA Typ
? Operating temperature
range-40°C to +125°C
? No phase reversal
