Low Noise, High Precision, High Voltage,Rail-to-Rail I/O Operational Amplifiers,SGM8276-4 Replace OPA4172.
SGM8276-4XS14G
SGM8276-4XS14G.pdf
SGM8276-4XS14G.pdfFEATURES
? Wide Input Common Mode and
Differential VoltageRanges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
? Low Noise: 10nV/Hz at 1kHz
? Gain-Bandwidth Product: 10MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8276-1 Available in a Green SOT-23-5 Package
SGM8276-2 Available in a Green SOIC-8 Package
SGM8276-4 Available in a Green SOIC-14 Package

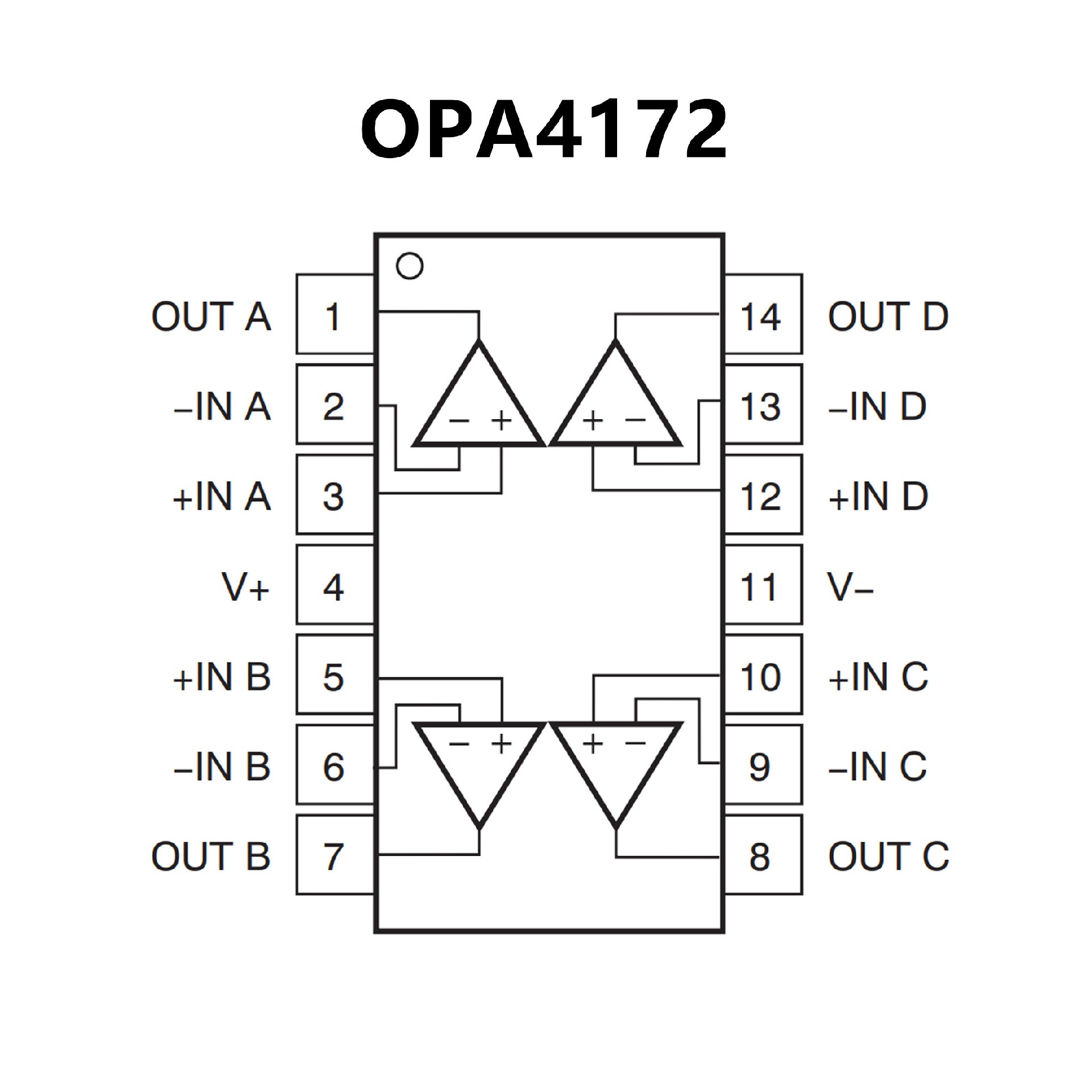

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide Supply Range:
+4.5 V to +36 V, ±2.25 V to ±18 V
? Low Offset Voltage: ±0.2 mV
? Low Offset Drift: ±0.3 μV/°C
? Gain Bandwidth: 10 MHz
? Low Input Bias Current: ±8 pA
? Low Quiescent Current: 1.6 mA per Amplifier
? Low Noise: 7 nV/√Hz
? EMI and RFI Filtered Inputs
? Input Range Includes the Negative Supply
? Input Range Operates to Positive Supply
? Rail-to-Rail Output
? High Common-Mode Rejection: 120 dB
? Industry-Standard Packages:
SOIC-8, VSSOP-8, SOIC-14, TSSOP-14
? microPackages: Single in SC70, SOT-23,
Dual in WSON-8

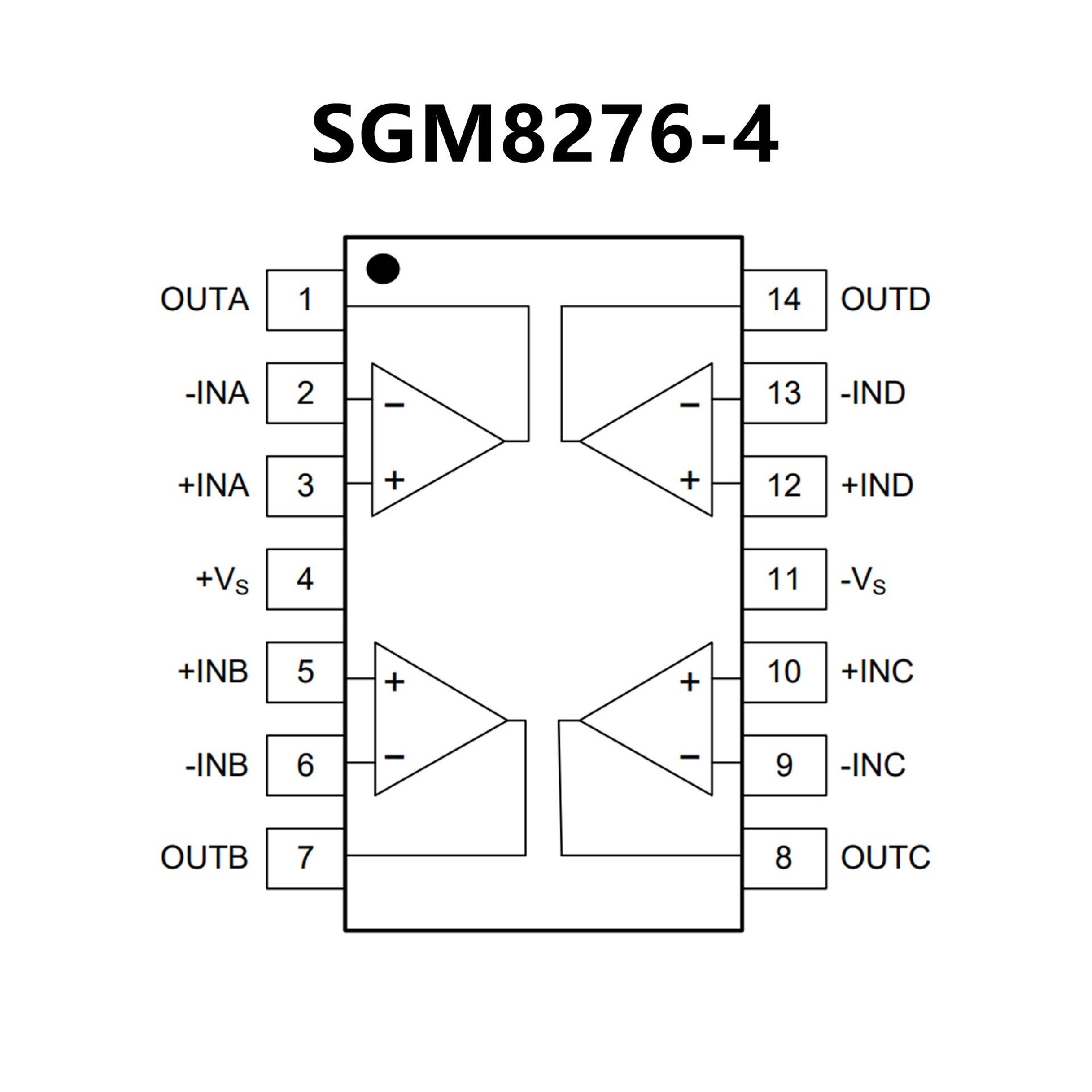

PIN CONFIGUTION
