SGM8273-2.pdf? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/ Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/μs
? Small Packaging:
SGM8273-1 Available in Green
SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a Green
SOIC-8 Package
SGM8273-4 Available in a Green
SOIC-14 Package
? Rail-to-rail input and output
? Low noise: 9 nV/√Hz
? Low distortion
? High output current: 80 mA
(able to drive 32 Ω loads)
? High-speed: 4 MHz, 1 V/μs
? Operating from 2.7 to 12 V

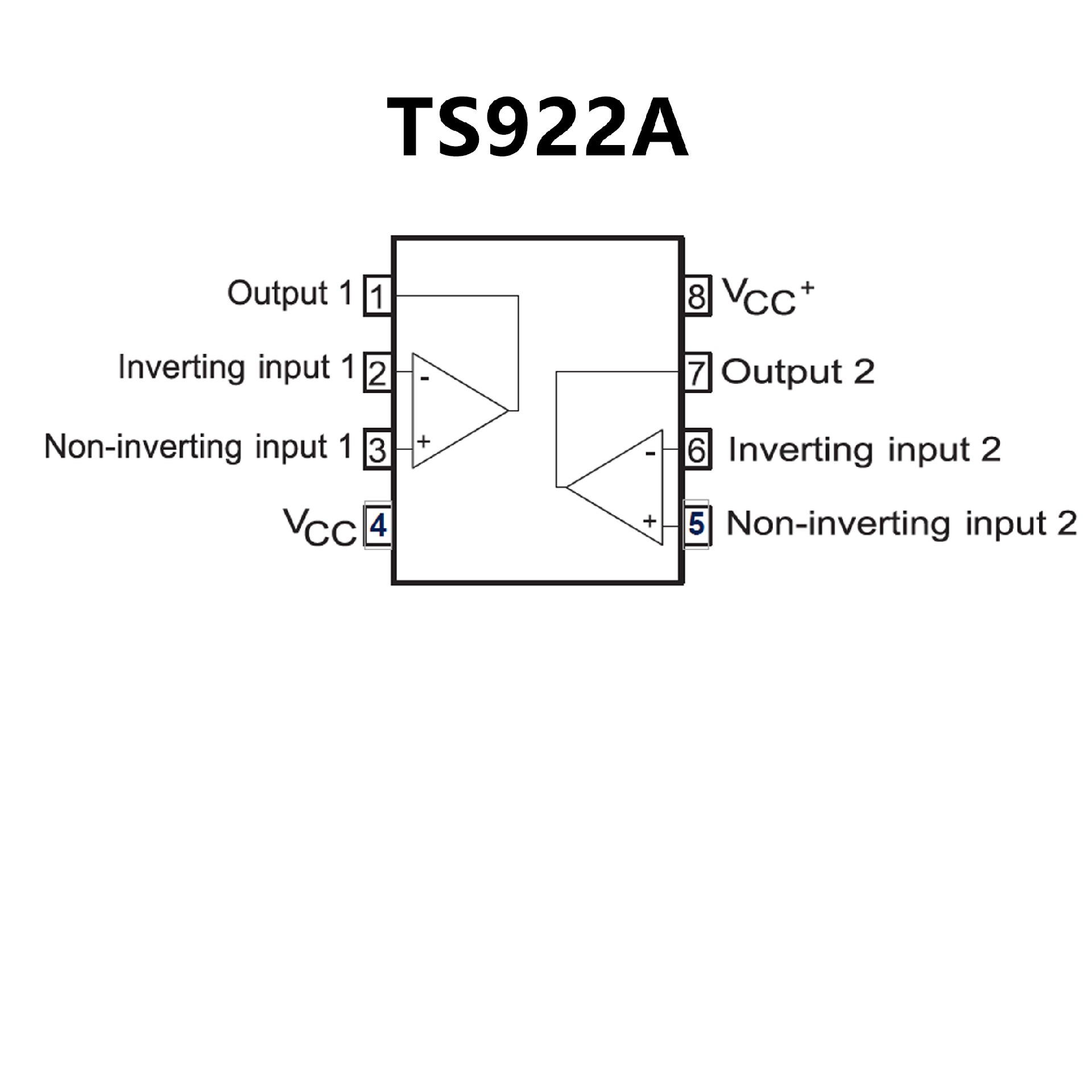

? Low input offset voltage: 900 μV max. (TS922A)
? ESD internal protection: 2 kV
? Latch-up immunity
