Micro Power Operational Amplifier, SGM8273-2 Replace OPA2171.
SGM8273-2
SGM8273-2.pdf
SGM8273-2.pdfFEATURES
? Wide Input Common Mode and Differential Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/μs
? Small Packaging:
SGM8273-2 Available in Green SOIC-8 Package

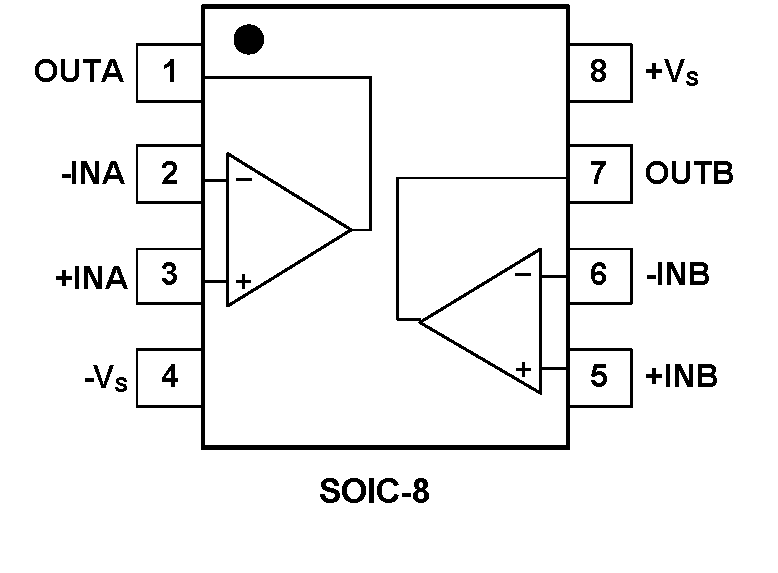

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Supply Range: +2.7V to +36V, ±1.35V to ±18V
? Low Noise: 14nV/√Hz
? Low Offset Drift: ±0.3μV/°C (typ)
? RFI Filtered Inputs
? Input Range Includes the Negative Supply
? Input Range Operates to Positive Supply
? Rail-to-Rail Output
? Gain Bandwidth: 3MHz
? Low Quiescent Current: 475μA per Amplifier
? High Common-Mode Rejection: 120dB (typ)
? Low Input Bias Current: 8pA

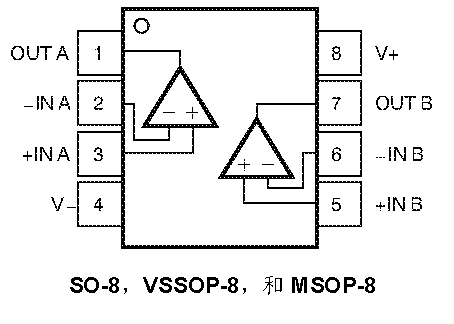

PIN CONFIGUTION
