Automotive, High Voltage, Precision, Rail to Rail In, Rail to Rail Out Op Amp, Replace TLV197-Q1.
SGM8253-1Q.pdf優勢替代
FEATURES
? 0 qualified for automotive applications:
Temperature grade 1: –40°C to +125°C, TA
? Low offset voltage: ±500 μV (maximum)
? Low noise: 5.5 nV/√Hz at 1 kHz
? High common-mode rejection: 140 dB
? Low bias current: ±5 pA
? Rail-to-rail input and output
? Wide bandwidth: 10-MHz GBW
? High slew rate: 20 V/μs
? Low quiescent current: 1 mA per amplifier
? Wide supply: ±2.25 V to ±18 V, 4.5 V to 36 V
? EMI/RFI filtered inputs
? Differential input-voltage range to supply rail
? High capacitive load drive capability: 1 nF
? Industry-standard package:
Single channel in very small 8-pin VSSOP
Dual channel in 8-pin VSSOP
Quad channel in 14-pin TSSOP

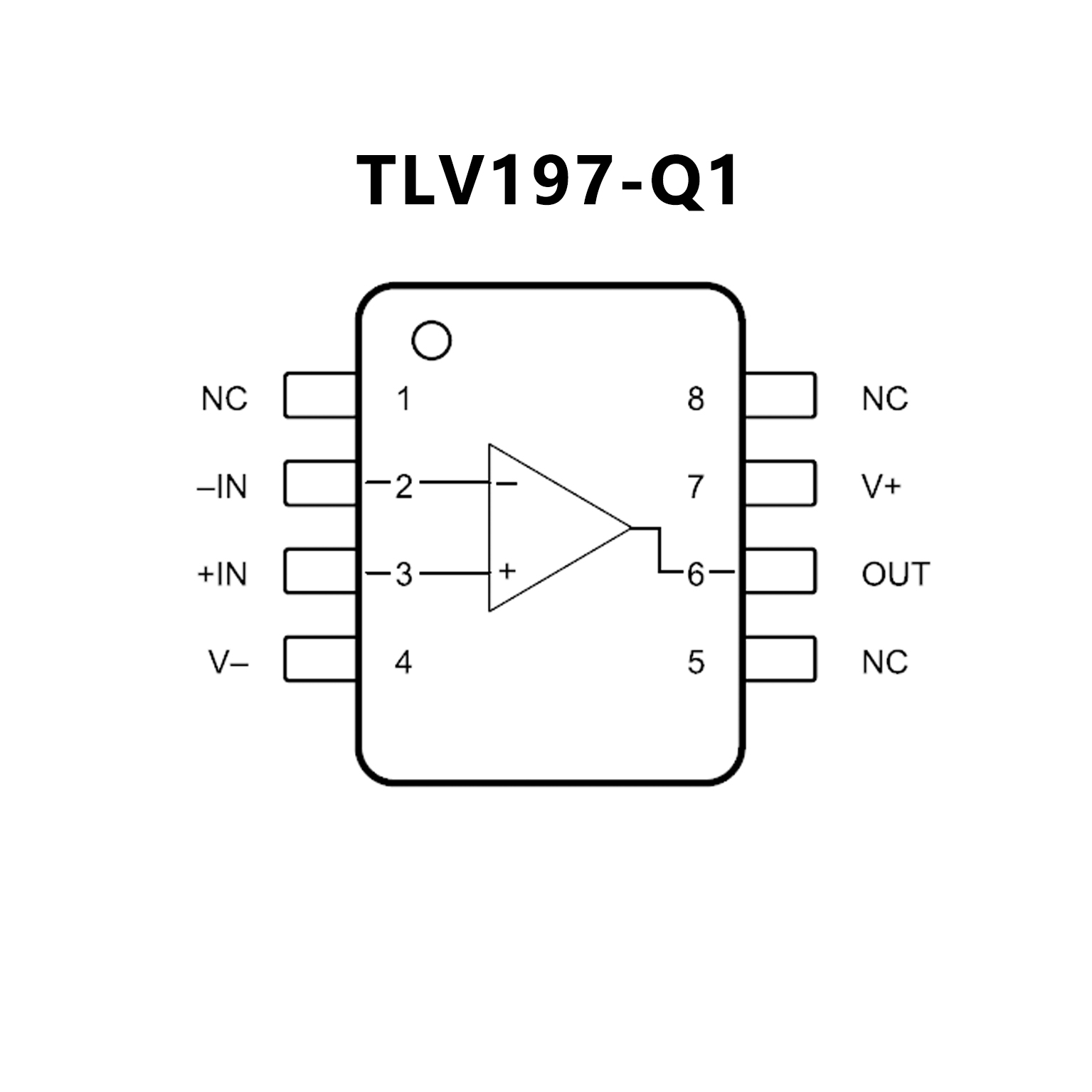

PIN CONFIGUTION
