Nano-Power System Timer With Watchdog Function, SGM821 Replace TPL5010.
SGM821
SGM821.pdf
SGM821.pdfFEATURES
? Supply Voltage Range: 1.8V to 5.5V
? Current Consumption at 2.5V: 60nA (TYP)
? Selectable Time Intervals: 100ms to 7200s
? Resistor Programmable Time Interval
? Watchdog Functionality
? Manual Reset Input
? Available in Green SOT-23-6 and TDFN-2×2-6AL
Packages

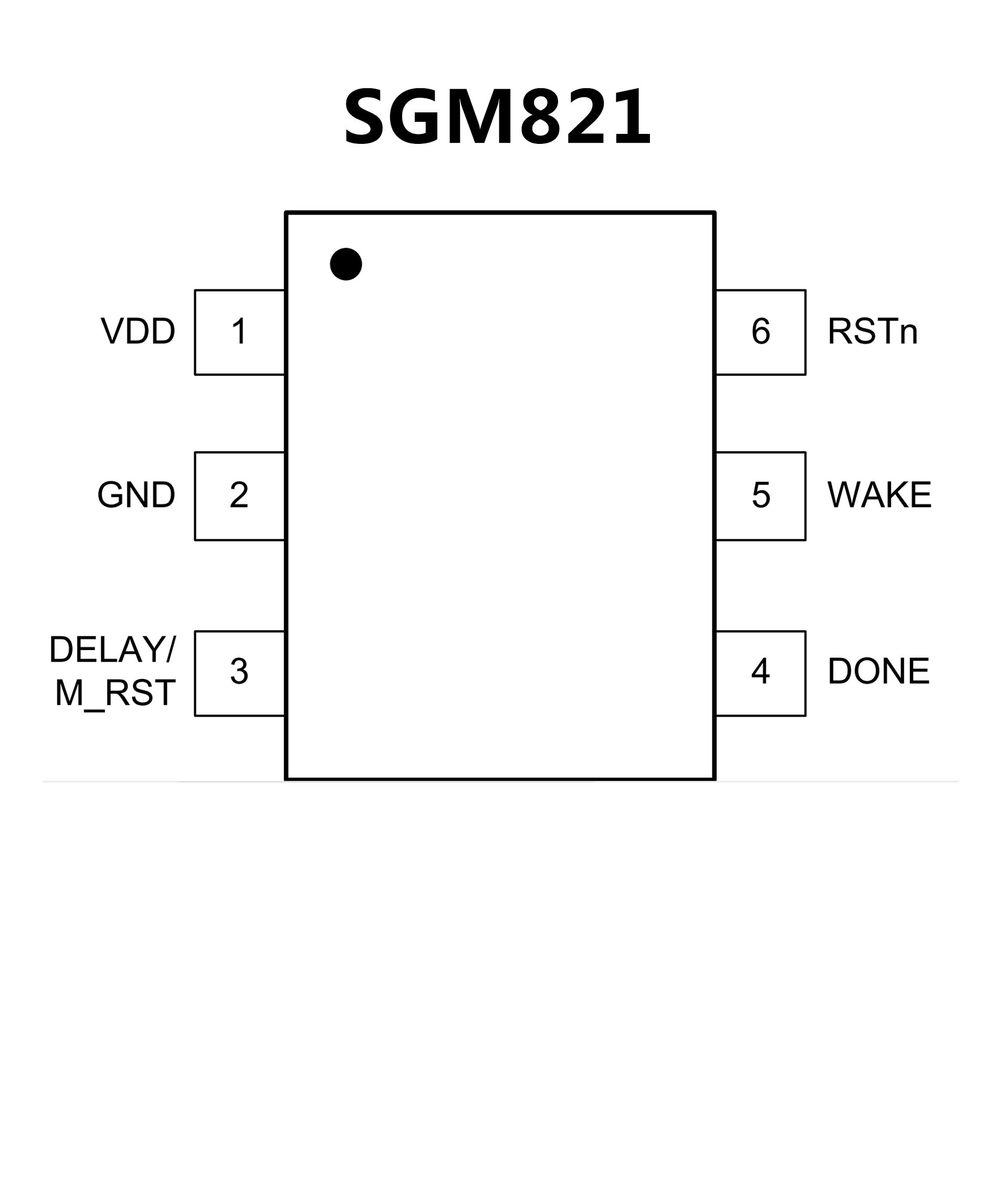

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Supply Voltage From 1.8 V to 5.5 V
? Current Consumption at 2.5 V and 35 nA (Typical)
? Selectable Time Intervals: 100 ms to 7200 s
? Timer Accuracy: 1% (Typical)
? Resistor Selectable Time Interval
? Watchdog Functionality
? Manual Reset
PIN CONFIGUTION
