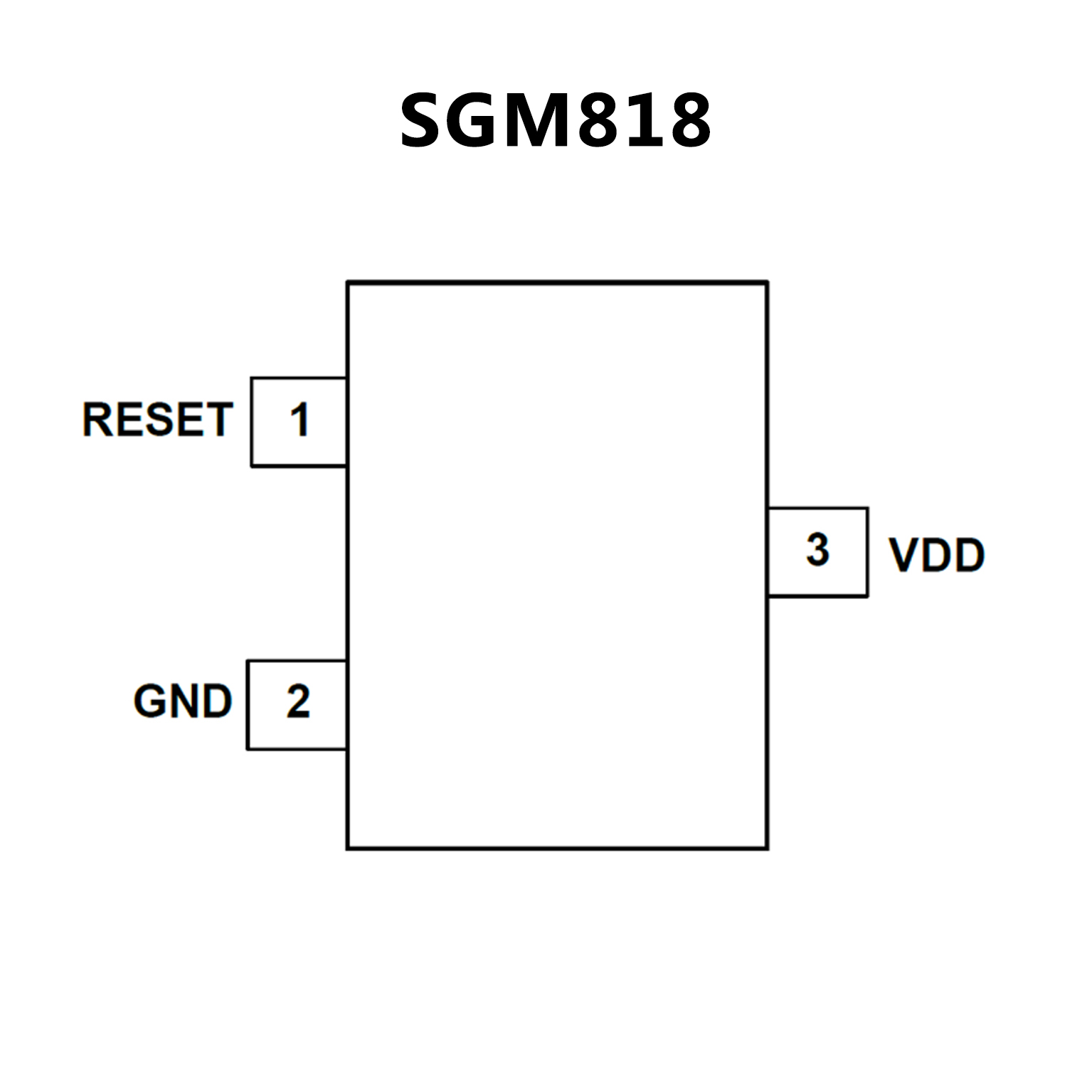

SGM818.pdf? High Accuracy: ±1% at TJ = +25℃
? Low Supply Current: 1μA (TYP)
? Detection Voltage Range: 1.2V to 5V (0.1V Increments)
? No External Components Required
? Quick Reset within 37μs (TYP)
? Reset Active Timeout Period
SGM818A: 0ms (nRESET)
SGM818B: 51ms (nRESET)
SGM818C: 208ms (nRESET)
SGM818D: 409ms (nRESET)
SGM818E: 0ms (RESET)
SGM818F: 51ms (RESET)
SGM818G: 208ms (RESET)
SGM818H: 409ms (RESET)
? Low Functional Supply Voltage: 0.9V
? N-Channel Open-Drain Output
? Available in a Green SOT-23-3 Package

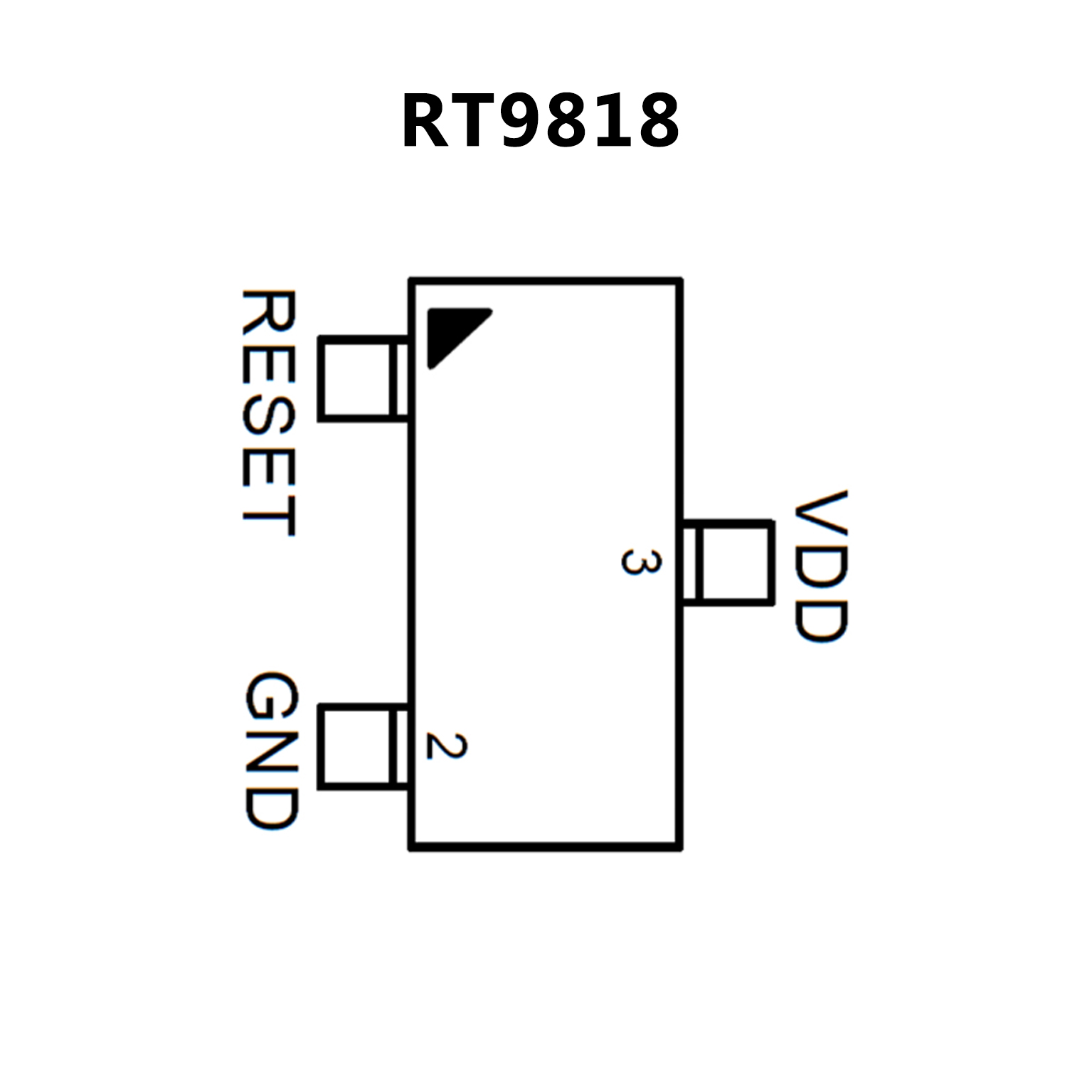

? Internally Fixed Threshold
1.2V to 5V in 0.1V Step
? High Accuracy ±±±±±1.5%
? Low Supply Current 3μμμμμA
? No External Components Required
? Quick Reset within 20μμμμμs
? Built-In Recovery Delay Include 0ms,
55ms, 220ms, 450ms Options
? Low Functional Supply Voltage 0.9V
? N-Channel Open-Drain Output
? Small SC-82, SC-70-3, SOT-23-3,
SOT-23-5, SOT-89 Packages
? RoHS Compliant and 100% Lead (Pb)-Free
